AFAM chain kit for KTM SX 65 LC 2003 420 R1G chain kit

AFAM chain kit for KTM SX 65 LC 2003 420 R1G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the KTM SX 65 LC 2T 2003-2003 chain kit

• Front sprocket: AFAM sprocket #420 12 teeth - a94120.12
• Chain: AFAM chain 420 R1-G reinforced 112 with clip link - a420r1.g.112

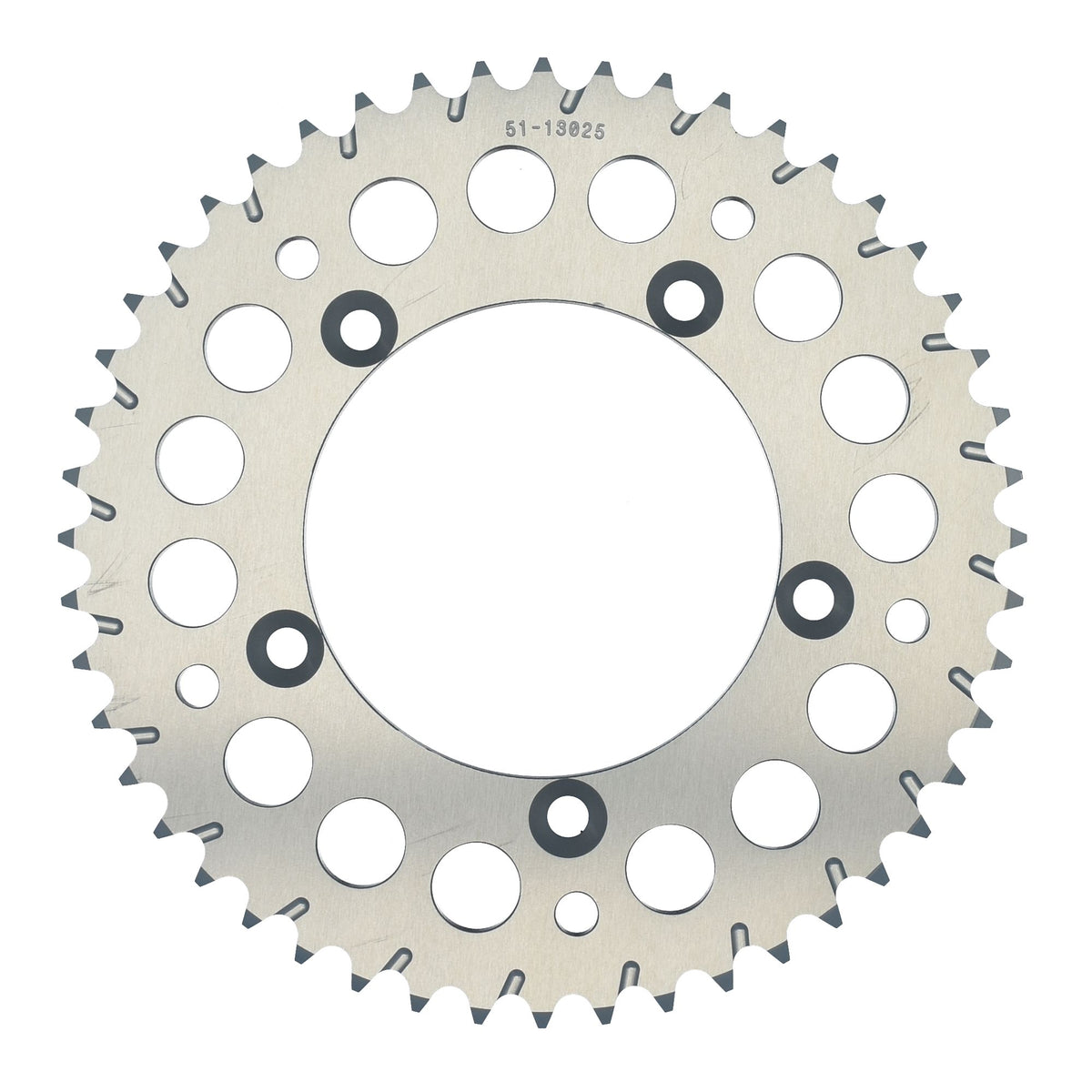

• Rear sprocket: AFAM sprocket ALU #420 50 teeth - a72101n.50
• Gear ratio sprocket-chain-rear sprocket: 12-112-50

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical data:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-46956

Fits

KTM 0 - 100 ccm SX 65 LC 2T 2003
