AFAM chain kit for KTM SX 65 LC 98-02 420 R1G chain kit

AFAM chain kit for KTM SX 65 LC 98-02 420 R1G chain kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX 65 LC 2T 1998-2002

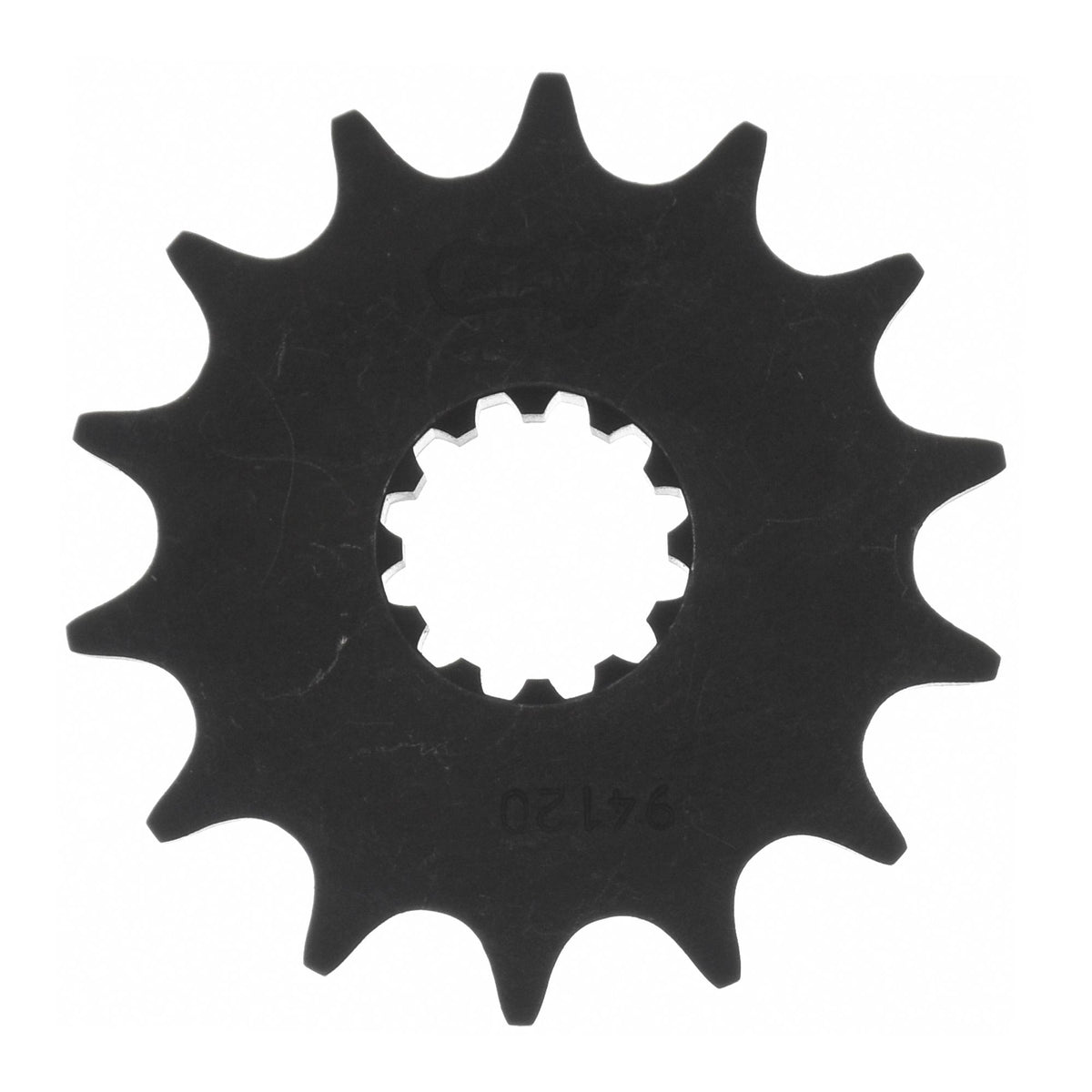

• Front sprocket: AFAM sprocket #420 12 teeth - a94120.12
• Chain: AFAM chain 420 R1-G reinforced 112 with clip master link - a420r1.g.112

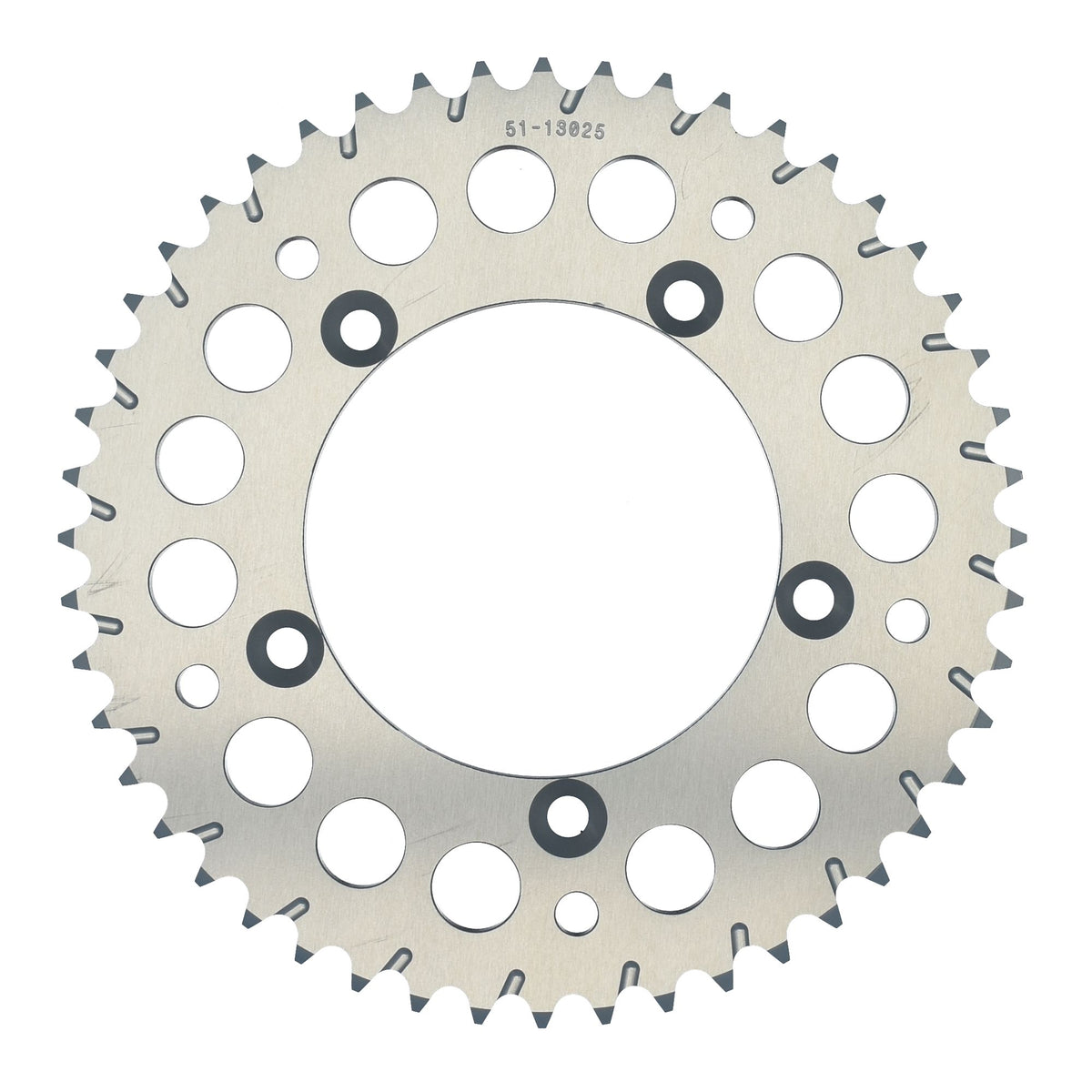

• Rear sprocket: AFAM sprocket ALU #420 46 teeth - a72101n.46
• Gear ratio sprocket-chain-rear sprocket: 12-112-46

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical data:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-46954

Suitable for

KTM 0 - 100 ccm SX 65 LC 2T 1998
KTM 0 - 100 ccm SX 65 LC 2T 1999
KTM 0 - 100 ccm SX 65 LC 2T 2000
KTM 0 - 100 ccm SX 65 LC 2T 2001
KTM 0 - 100 ccm SX 65 LC 2T 2002
