AFAM chain kit for KTM SX 85 03-06 428 R1G chain kit

AFAM chain kit for KTM SX 85 03-06 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit KTM SX 85 2T 2003-2006

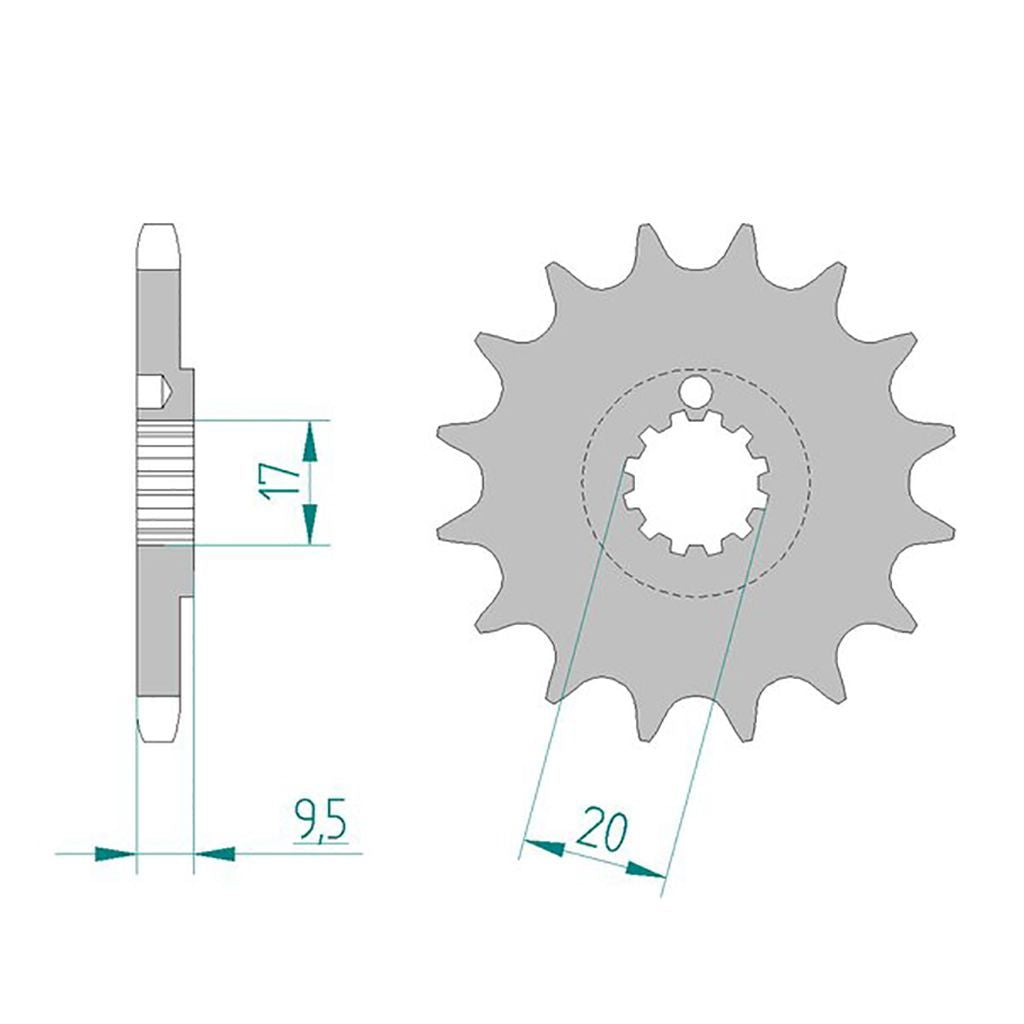

• Front sprocket: AFAM front sprocket #428 13 teeth - a94202.13
• Chain: AFAM chain 428 R1-G reinforced 124 with clip link - a428r1.g.124

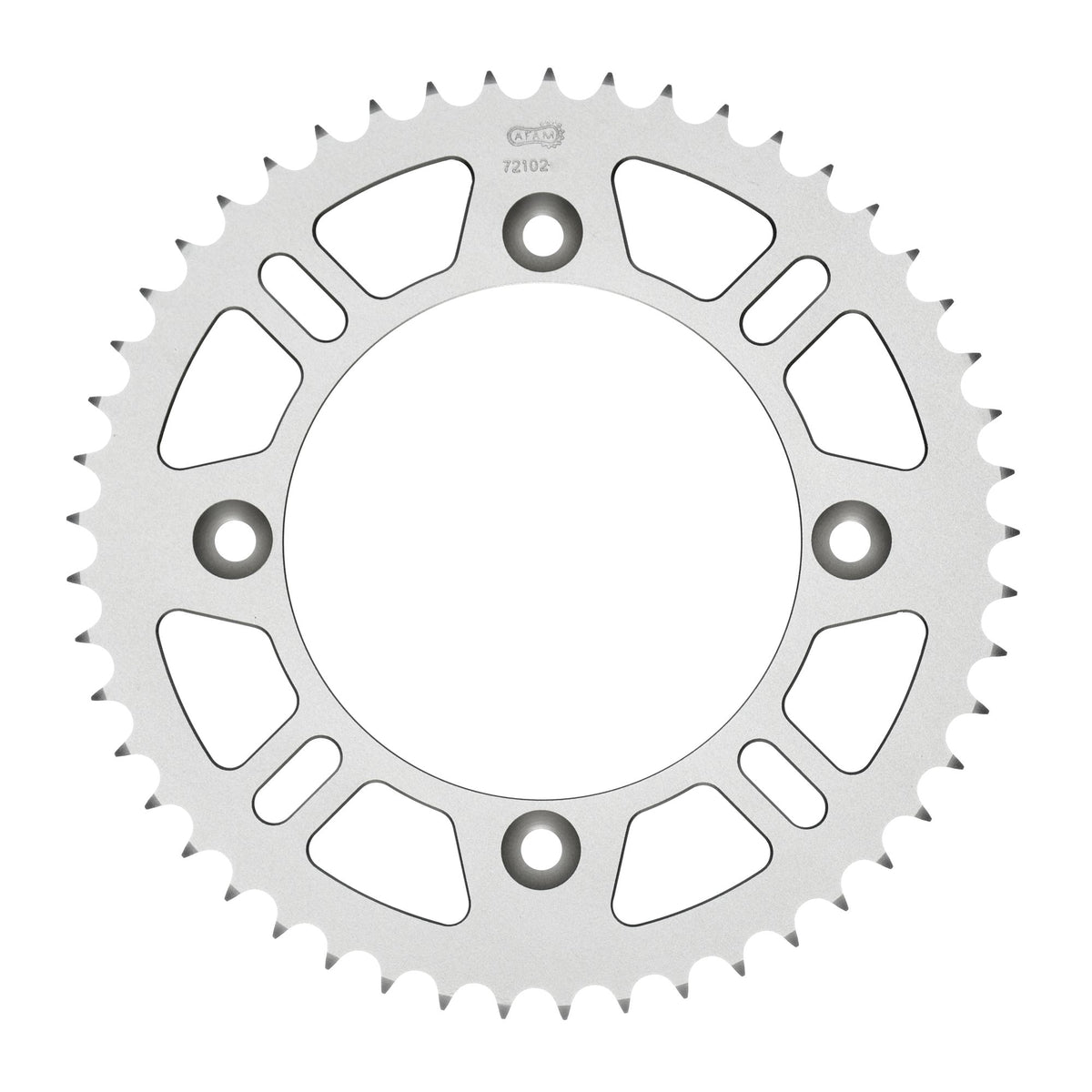

• Rear sprocket: AFAM rear sprocket ALU #428 - a72102n.46
• Gear ratio sprocket-chain-rear sprocket: 13-124-46

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-50075

Suitable for

KTM 0 - 100 cc SX 85 2T 2003
KTM 0 - 100 cc SX 85 2T 2004
KTM 0 - 100 cc SX 85 2T 2005
KTM 0 - 100 cc SX 85 2T 2006
