AFAM chain kit for KTM SX 85 (17/14 inch) 16-17 428 MXG chain kit

AFAM chain kit for KTM SX 85 (17/14 inch) 16-17 428 MXG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX 85 (17/14 inch) 2T 2016-2017

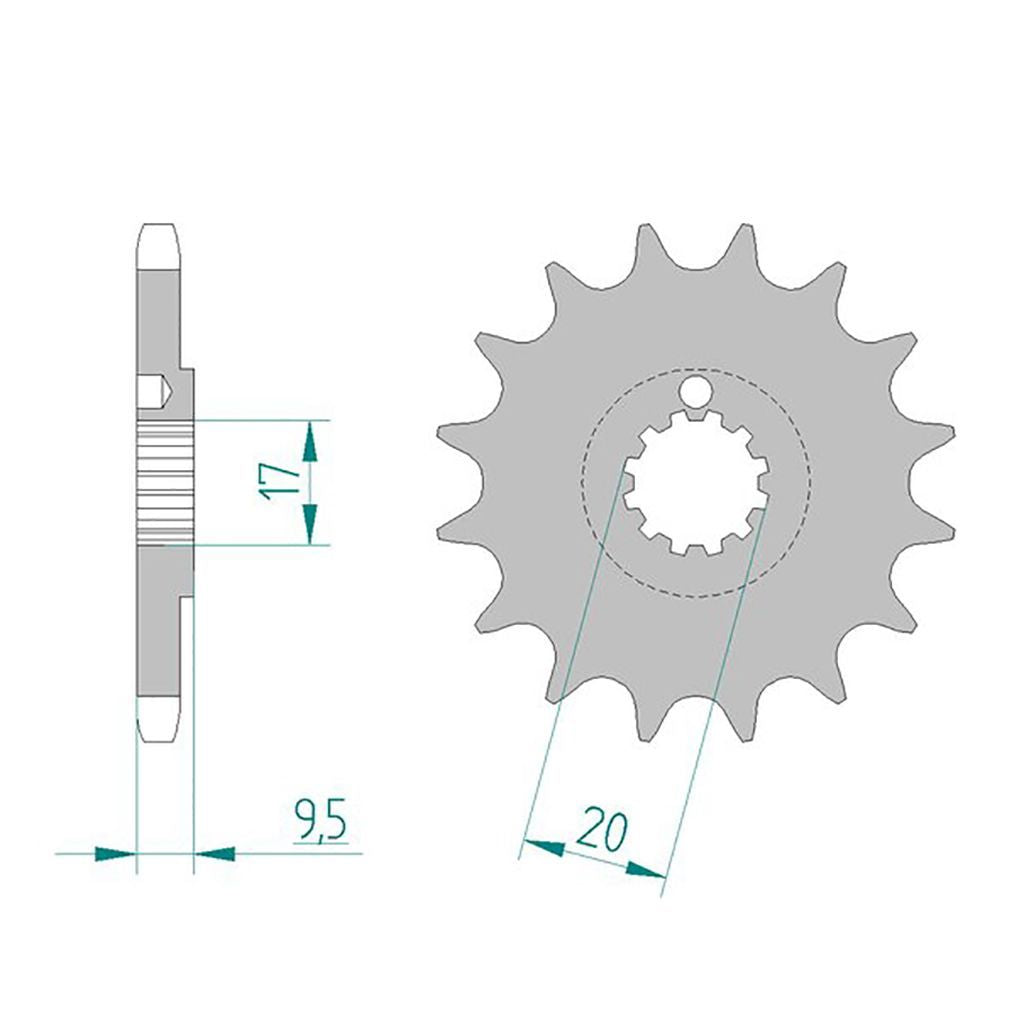

• Sprocket: AFAM sprocket #428 14 teeth - a94202.14
• Chain: AFAM chain 428 MX-G MX Racing 124 with clip link - a428mx.g.124

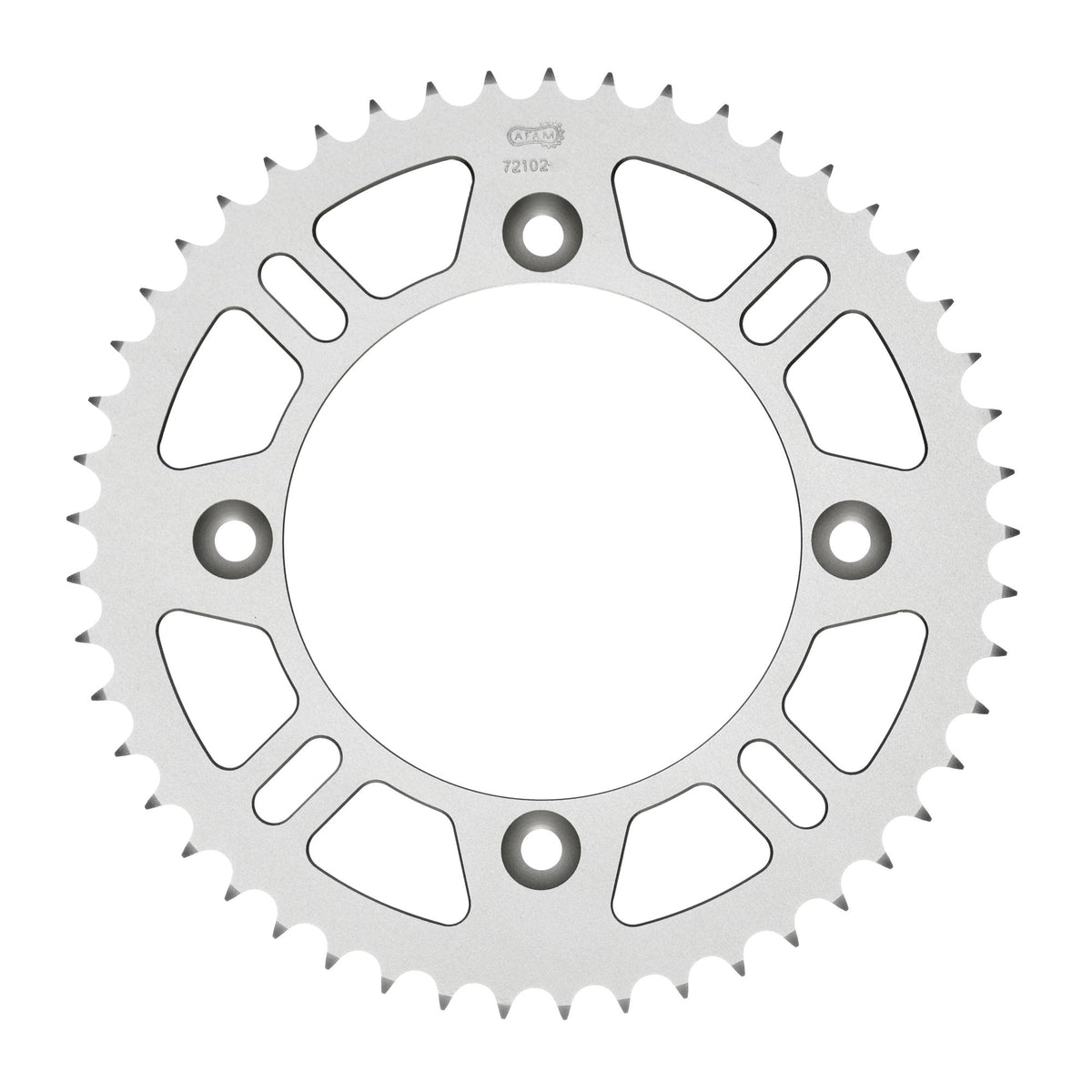

• Chainwheel: AFAM chainwheel ALU #428 - a72102n.46
• Gear ratio sprocket-chain-chainwheel: 14-124-46

AFAM 428 MX-G

MX racing chain, which can also be used for road use
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 19.0 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 24.00 kN
Weight per 100 links: 1.02 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-26770

Suitable for

KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2016
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2017
