AFAM chain kit for KTM SX 85 (17/14 inch) 16-17 428 R1G chain kit

AFAM Chain Kit for KTM SX 85 (17/14 inch) 16-17 428 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - Manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit KTM SX 85 (17/14 inch) 2T 2016-2017

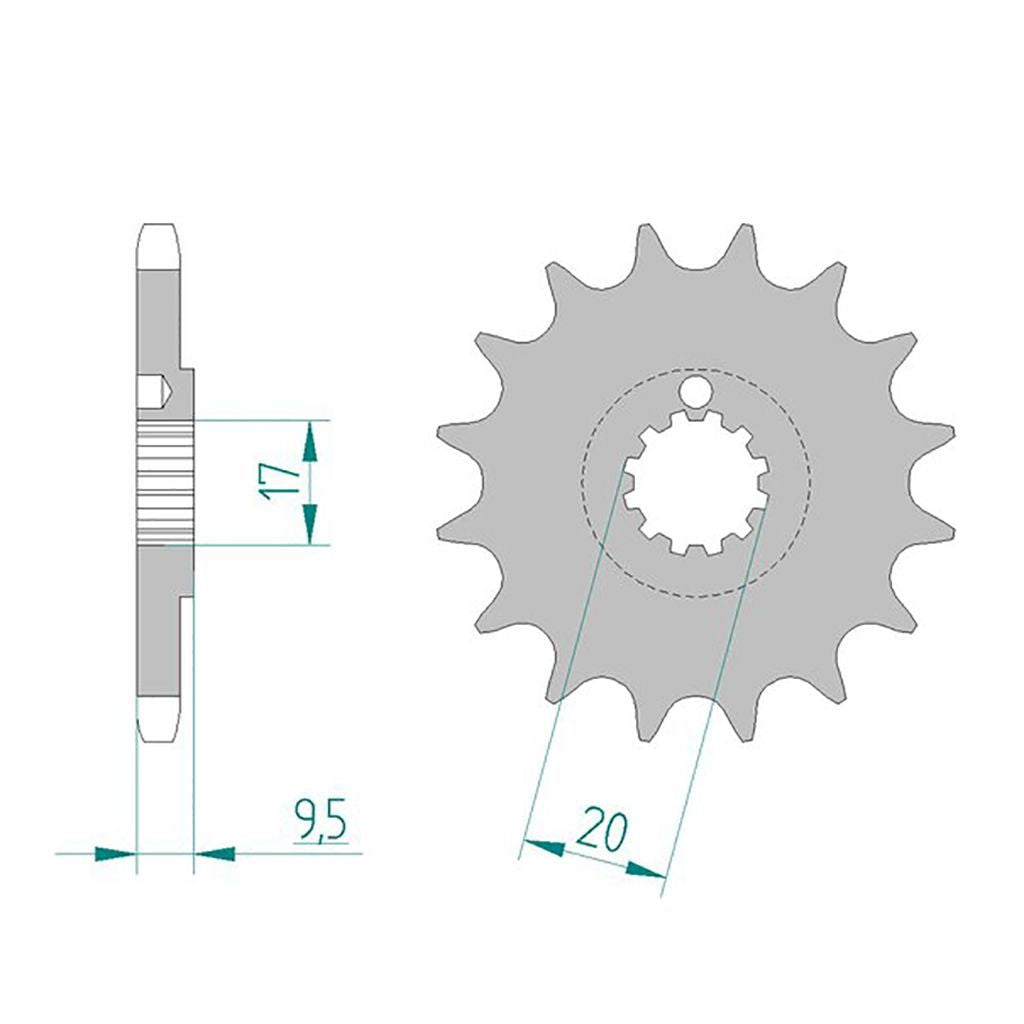

• Front sprocket: AFAM front sprocket #428 14 teeth - a94202.14
• Chain: AFAM chain 428 R1-G reinforced 124 with clip link - a428r1.g.124

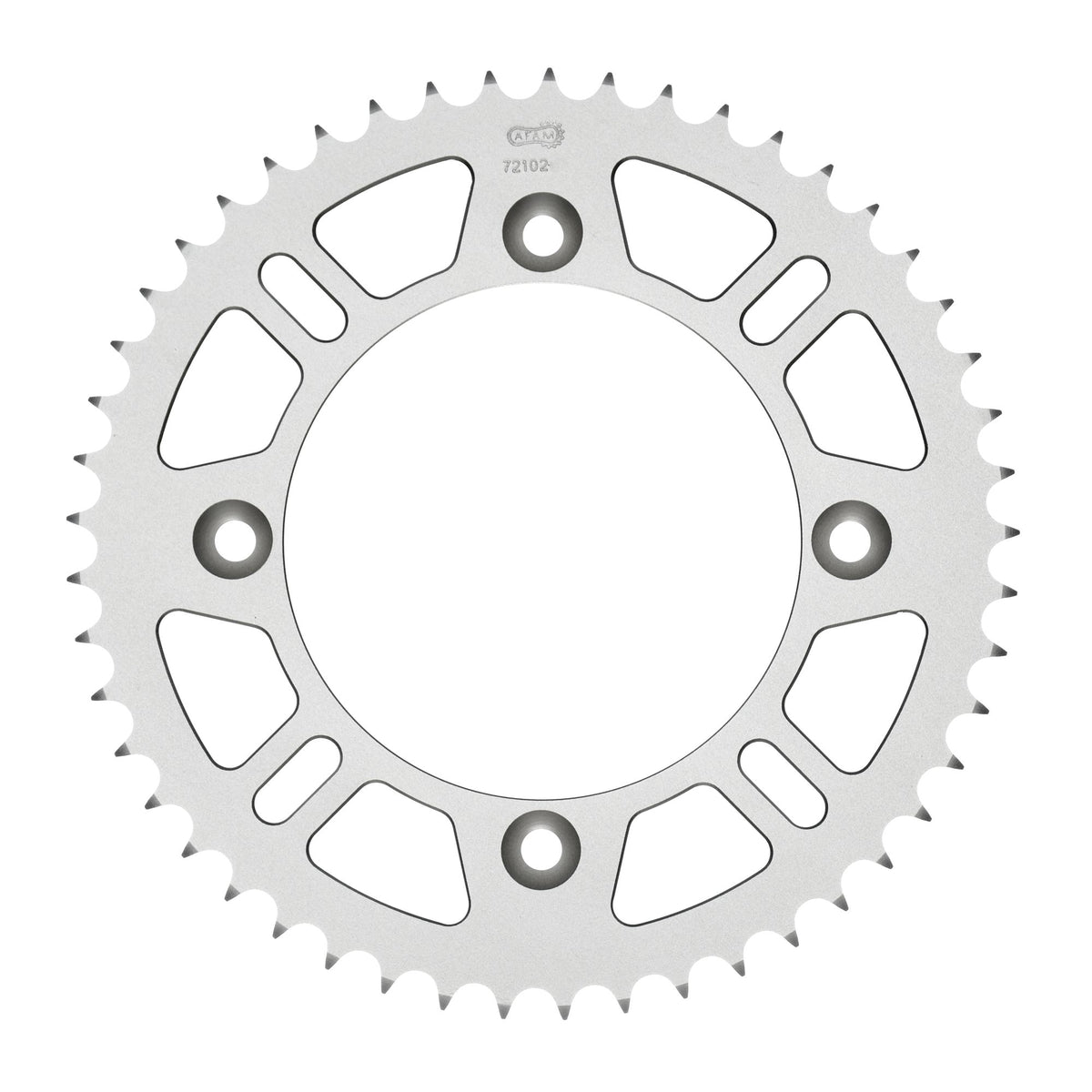

• Rear sprocket: AFAM rear sprocket ALU #428 - a72102n.46
• Gear ratio front sprocket-chain-rear sprocket: 14-124-46

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by engine displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-28602

Suitable for

KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2016
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2017
