AFAM chain kit for KTM SX 85 (17/14 inch) 18-22 428 R1G chain kit

AFAM chain kit for KTM SX 85 (17/14 inch) 18-22 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM SX 85 (17/14 inch) 2T 2018-2022

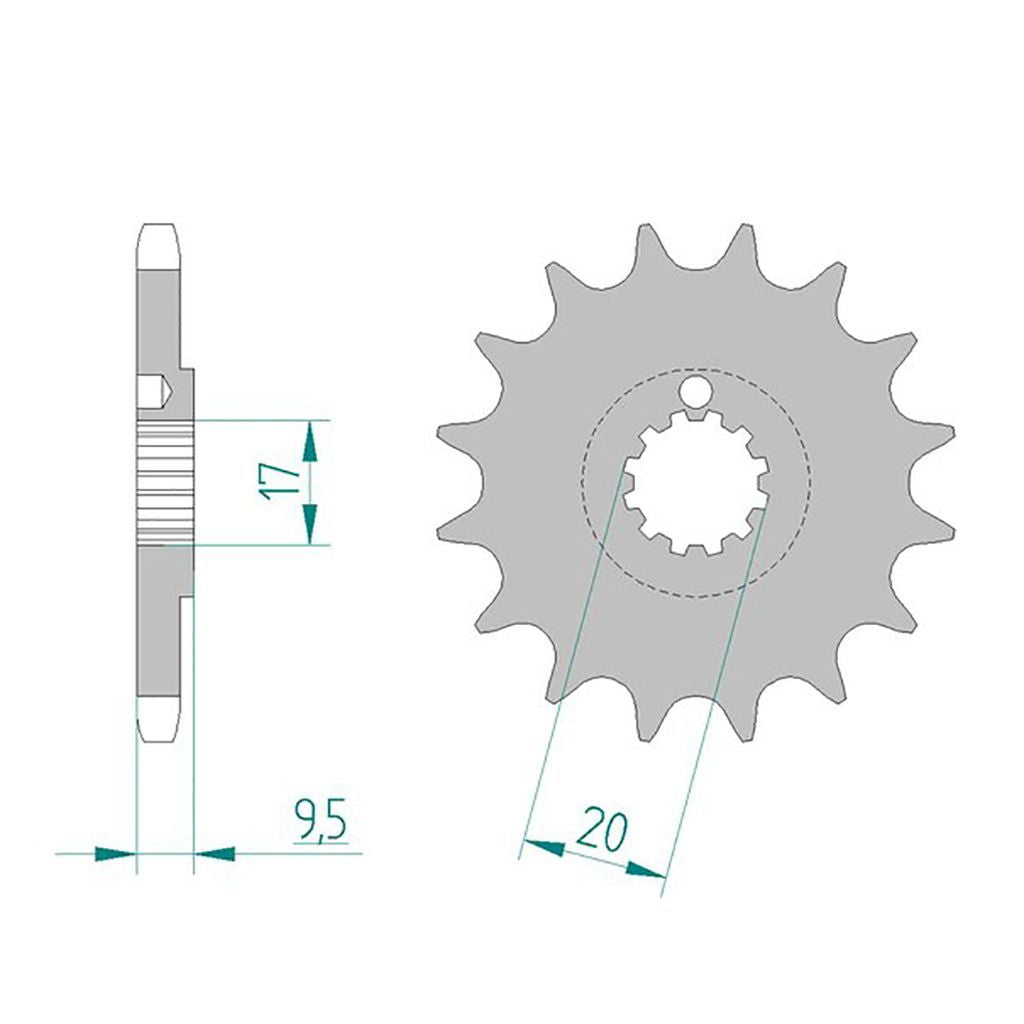

• Front sprocket: AFAM front sprocket #428 13 teeth - a94202.13
• Chain: AFAM chain 428 R1-G reinforced 124 with clip link - a428r1.g.124

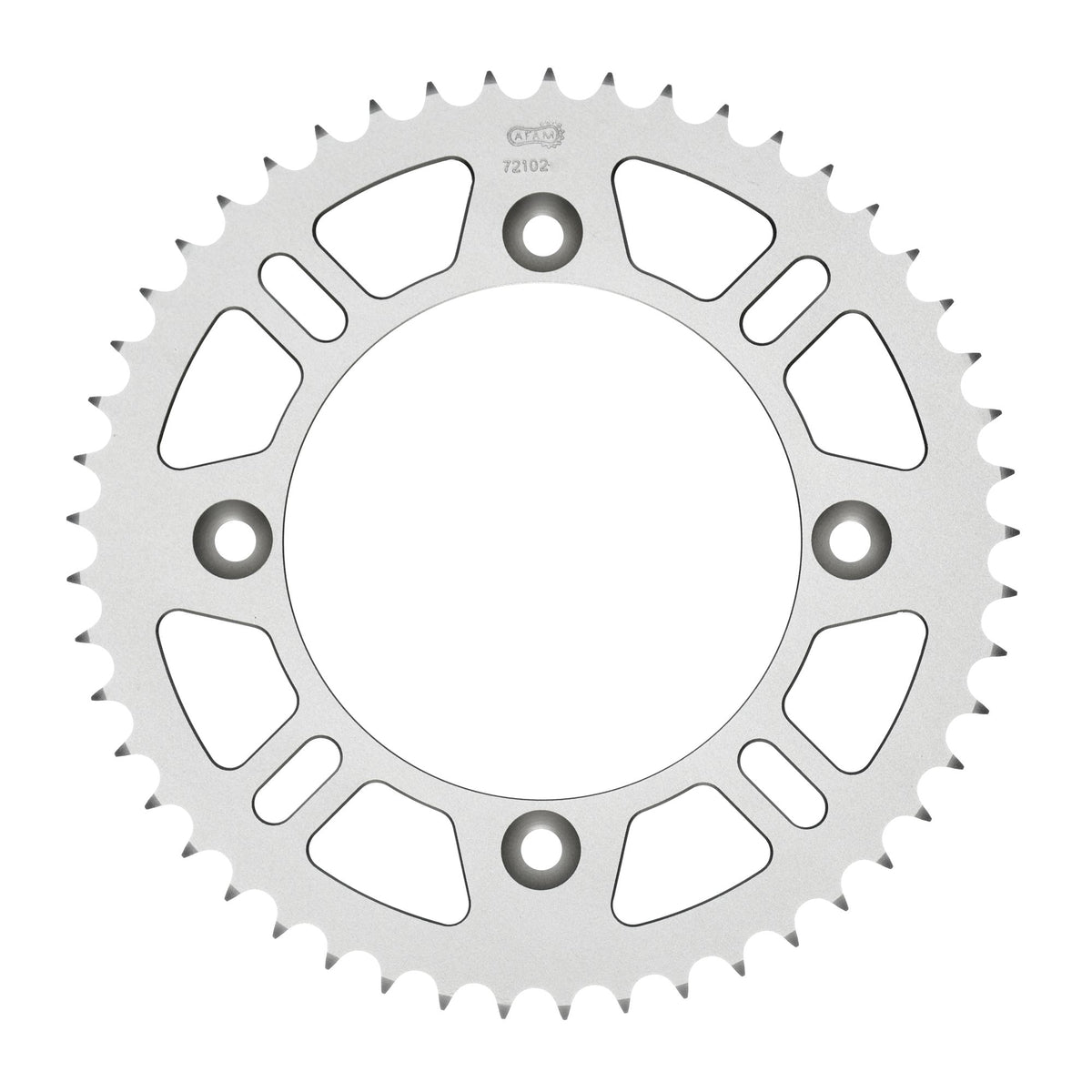

• Rear sprocket: AFAM rear sprocket ALU #428 - a72102n.46
• Gear ratio sprocket-chain-rear sprocket: 13-124-46

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50080

Fits

KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2018
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2019
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2020
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2021
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2022
