AFAM chain kit for KTM SX-E 5 20-22 415 F chain kit

AFAM chain kit for KTM SX-E 5 20-22 415 F chain kit

Chain kit or chain set for the specified model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM SX-E 5 Electric 2020-2022

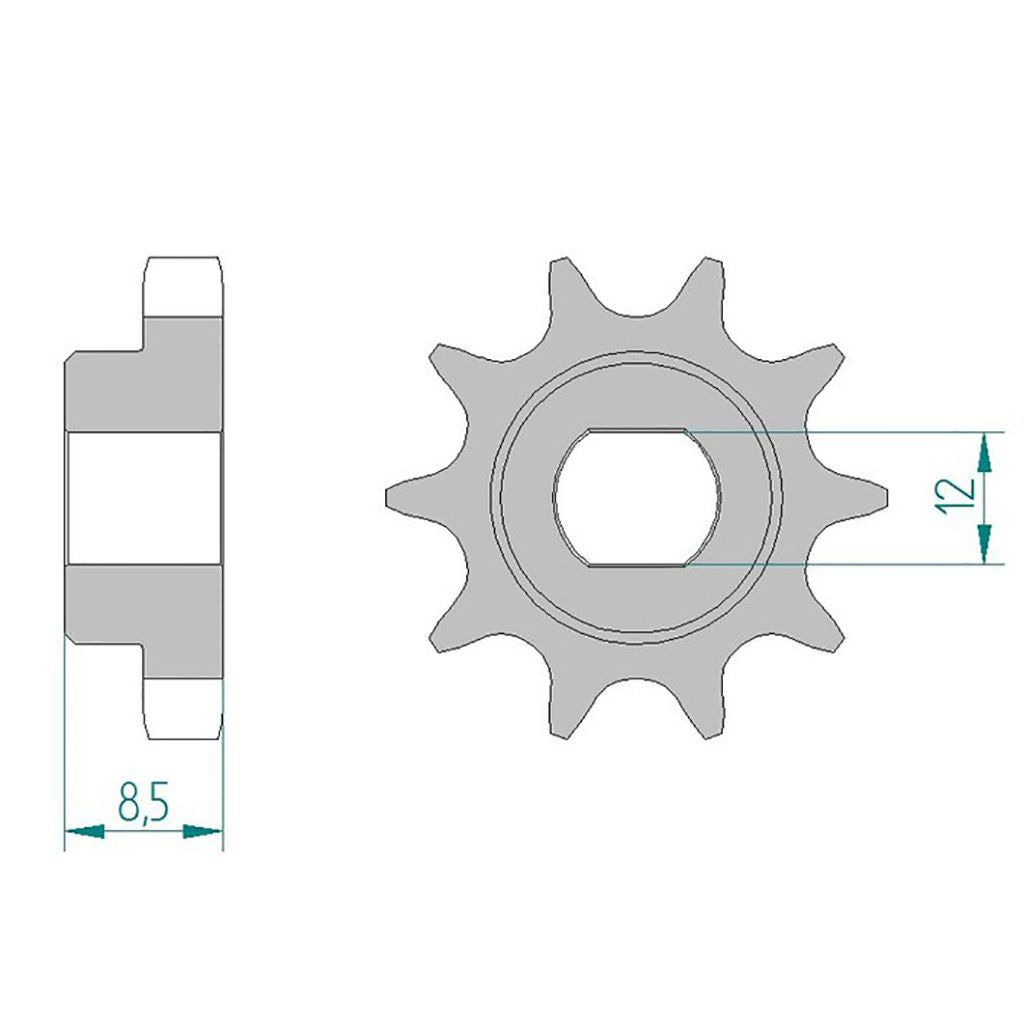

• Front sprocket: AFAM sprocket #415 09- 11 teeth - a94124.11
• Chain: AFAM chain 415 F 104 with clip link - a415f.104

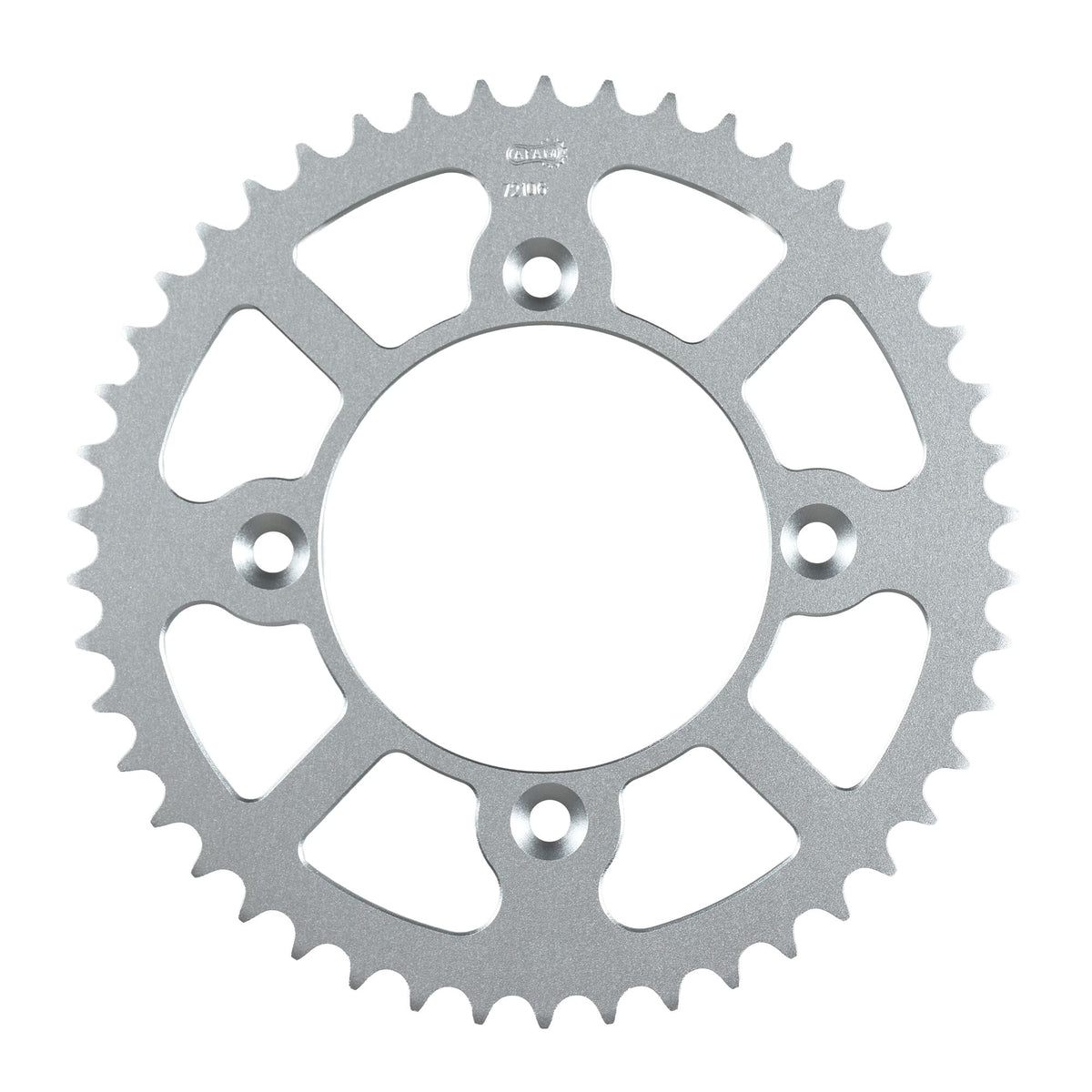

• Rear sprocket: AFAM rear sprocket ALU #415 46 teeth - a72106.46
• Gear ratio sprocket-chain-rear sprocket: 9-104-46

AFAM 415 F

Affordable and slightly reinforced chain
Without O-rings
Color: Steel

Technical data:
Pitch: 415
Pin length: 14.60 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.6 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 17.00 kN
Weight per 100 links: 0.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78892

Suitable for

KTM electric SX-E 5 Electric 2020
KTM electric SX-E 5 Electric 2021
KTM electric SX-E 5 Electric 2022
