AFAM chain kit for KTM SX-F 250 06-12 520 MR2G chain kit

AFAM Chain Kit for KTM SX-F 250 06-12 520 MR2G Chain Set

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the KTM SX-F 250 4T 2006-2012 Chain Kit

• Sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.116

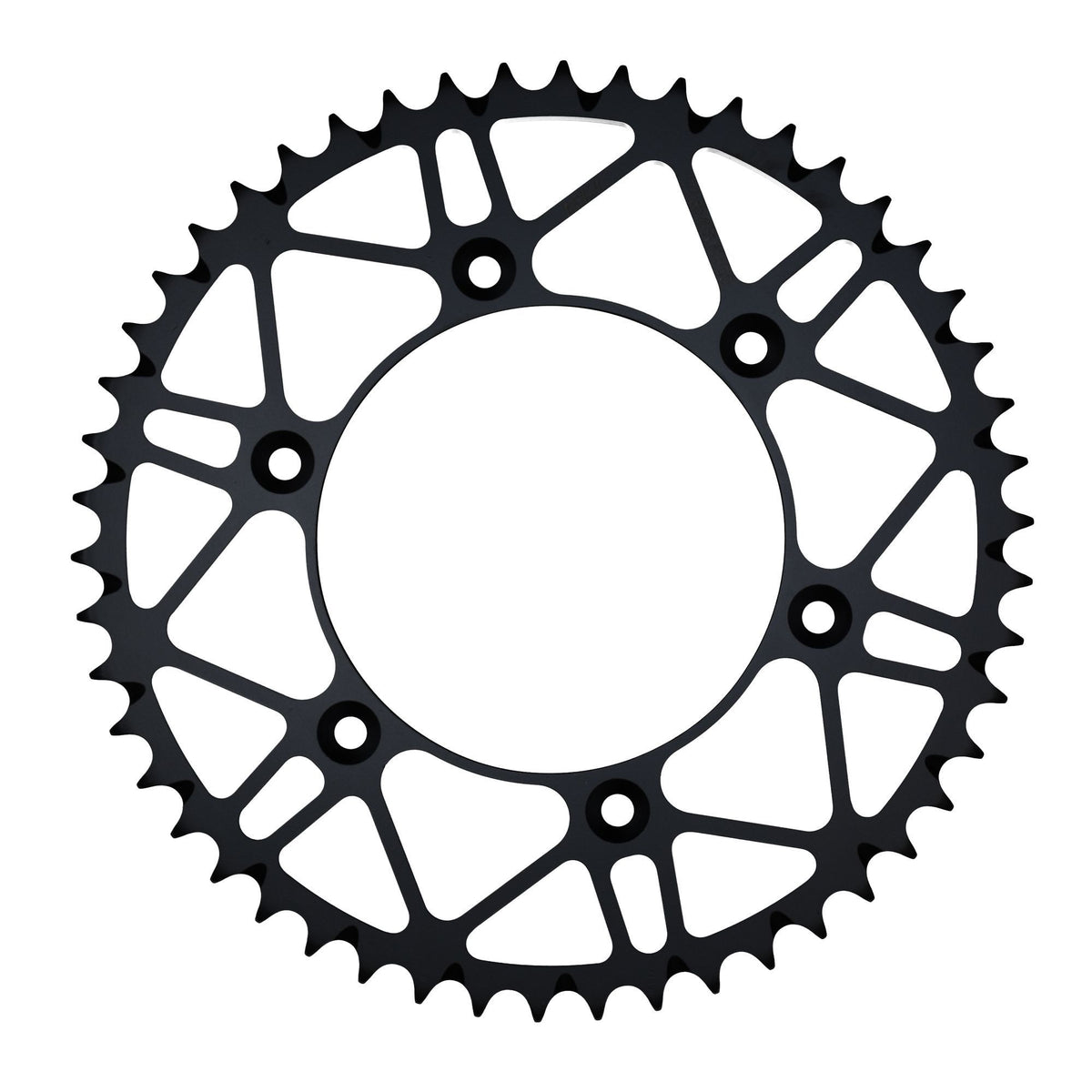

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 48 T - a71304slk.48
• Gear ratio sprocket-chain-rear sprocket: 13-116-48

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-49486

Fits

KTM 126 - 250 cc SX-F 250 4T 2006
KTM 126 - 250 cc SX-F 250 4T 2007
KTM 126 - 250 cc SX-F 250 4T 2008
KTM 126 - 250 cc SX-F 250 4T 2009
KTM 126 - 250 cc SX-F 250 4T 2010
KTM 126 - 250 cc SX-F 250 4T 2011
KTM 126 - 250 cc SX-F 250 4T 2012
