AFAM chain kit for KTM SX-F 250 18-22 520 XMR3 chain kit

AFAM chain kit for KTM SX-F 250 18-22 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM SX-F 250 4T 2018-2022

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: AFAM chain 520 XMR3 Xs-ring 118 with rivet link - a520xmr3.118

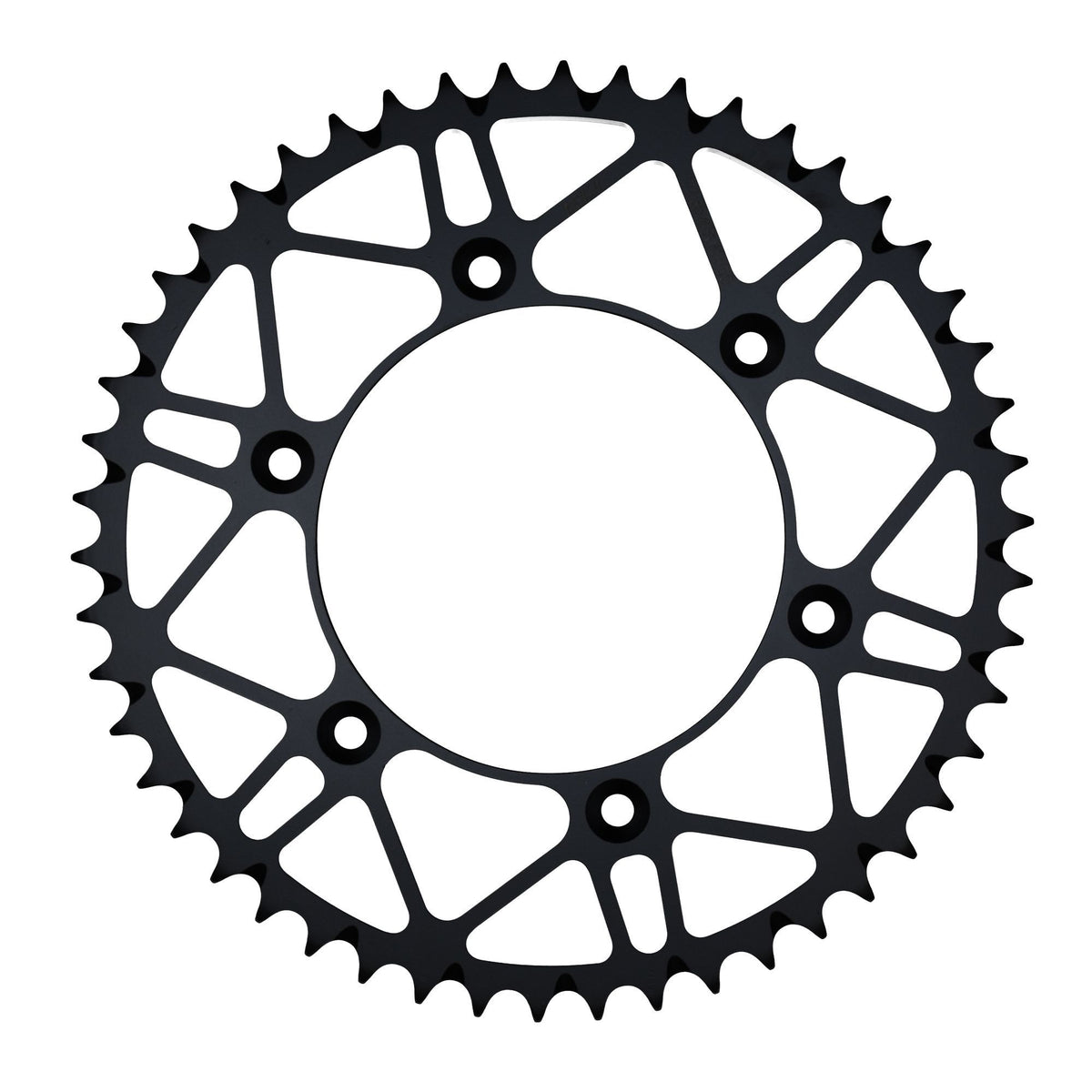

• Chainwheel: AFAM chainwheel steel #520 with mud grooves 51 T - a71304slk.51
• Gear ratio sprocket-chain-chainwheel: 14-118-51

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-25012

Suitable for

KTM 126 - 250 cc SX-F 250 4T 2018
KTM 126 - 250 cc SX-F 250 4T 2019
KTM 126 - 250 cc SX-F 250 4T 2020
KTM 126 - 250 cc SX-F 250 4T 2021
KTM 126 - 250 cc SX-F 250 4T 2022
