AFAM chain kit for KTM SX-F 250 Factory Edition 2017 520 XMR3 chain kit

AFAM Chain Kit for KTM SX-F 250 Factory Edition 2017 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit KTM SX-F 250 Factory Edition 4T 2017-2017

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 XMR3 Xs-ring 118 links w. rivet link - a520xmr3.118

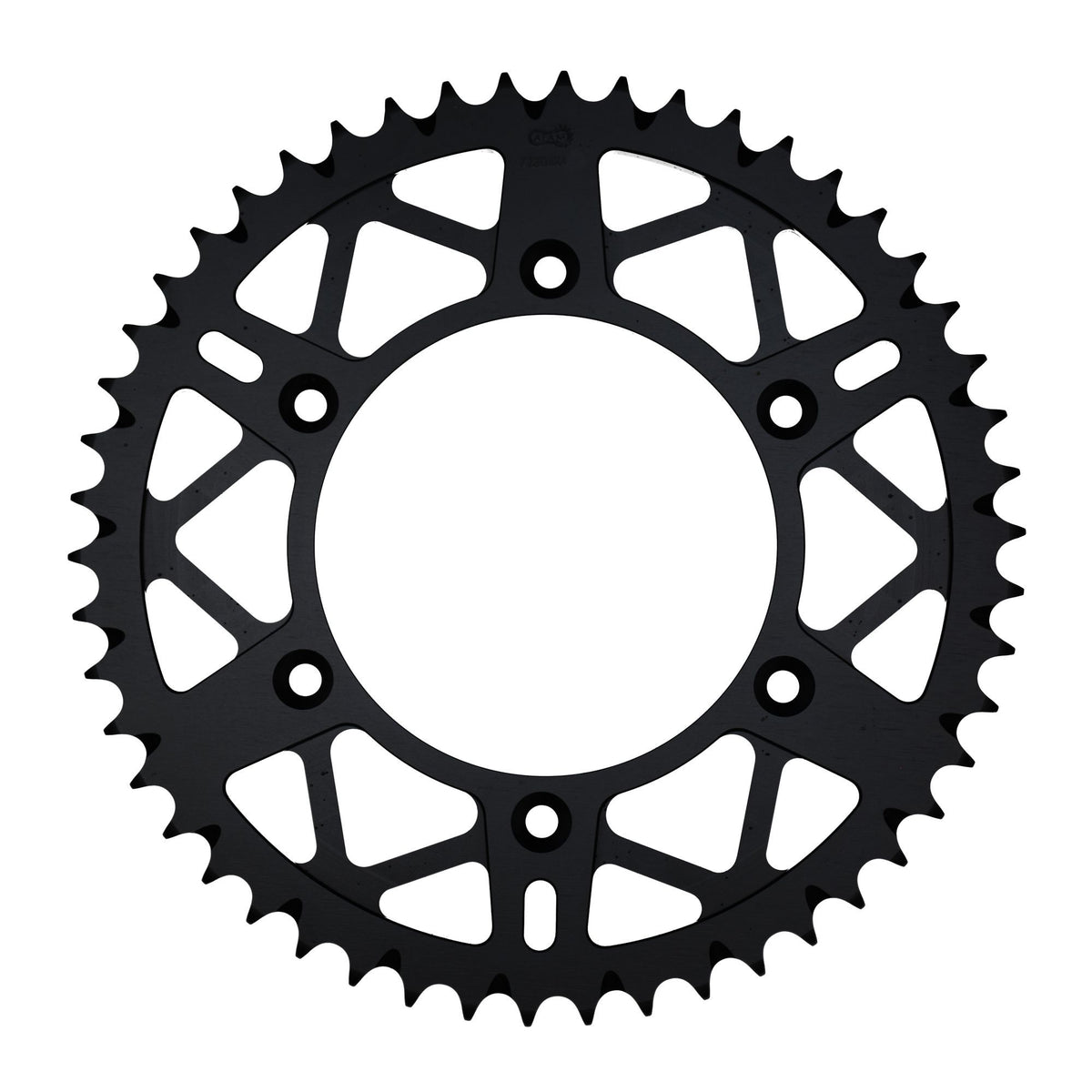

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio sprocket-chain-rear sprocket: 13-118-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-28681

Fits

KTM 126 - 250 cc SX-F 250 Factory Edition 4T 2017
