AFAM chain kit for KTM SX-F 350 2022 520 XMR3 chain kit

AFAM Chain kit for KTM SX-F 350 2022 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - Mention of the manufacturer is only for the purpose of demonstrating compatibility!

Components of the chain kit KTM SX-F 350 4T 2022-2022

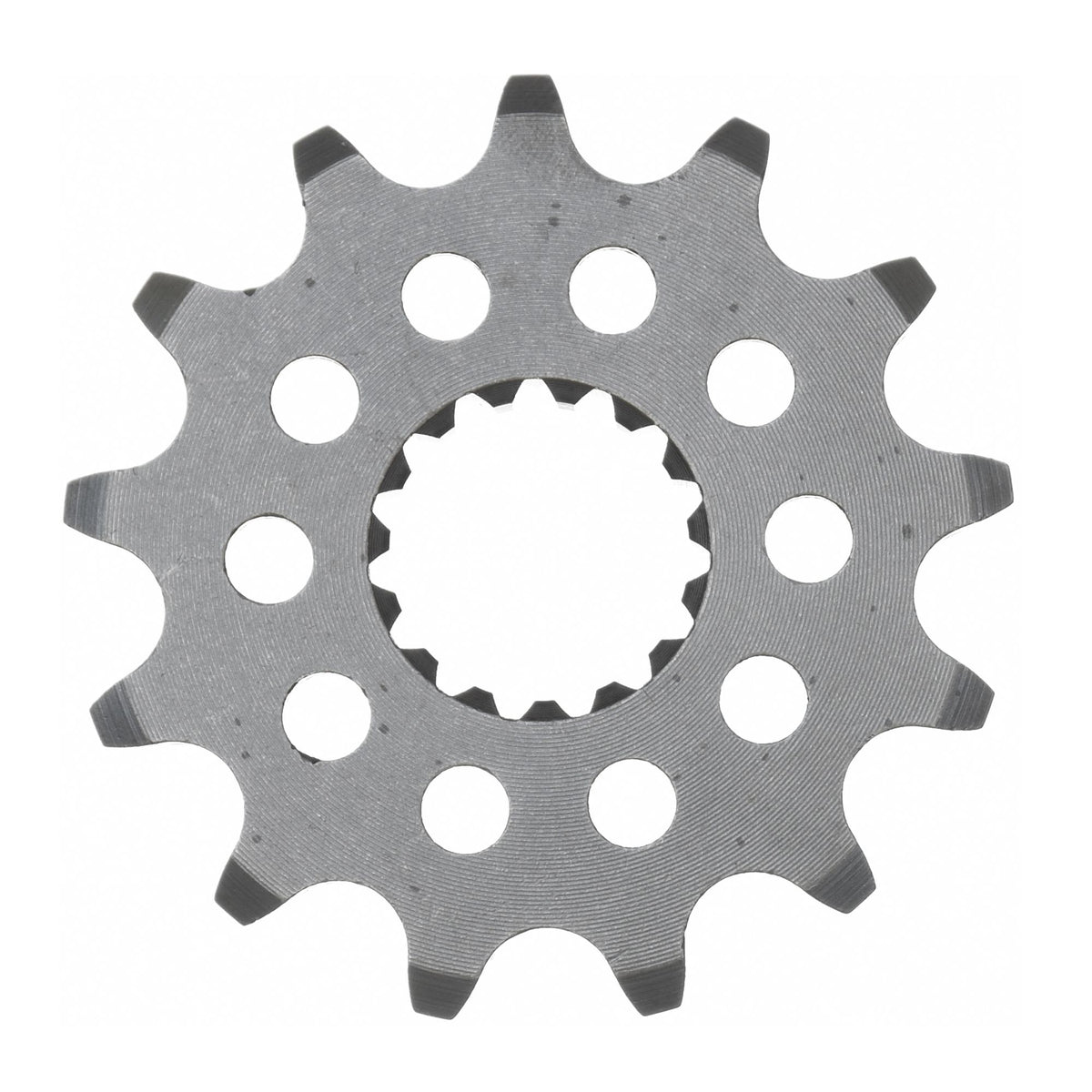

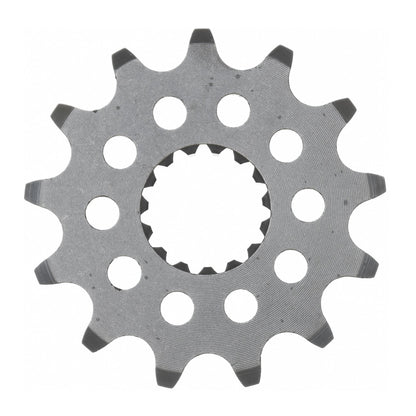

• Front sprocket: Esjot sprocket 73301-14 #520 Sport 14 teeth - a73301s.14
• Chain: AFAM chain 520 XMR3 Xs-Ring 118 w. rivet link - a520xmr3.118

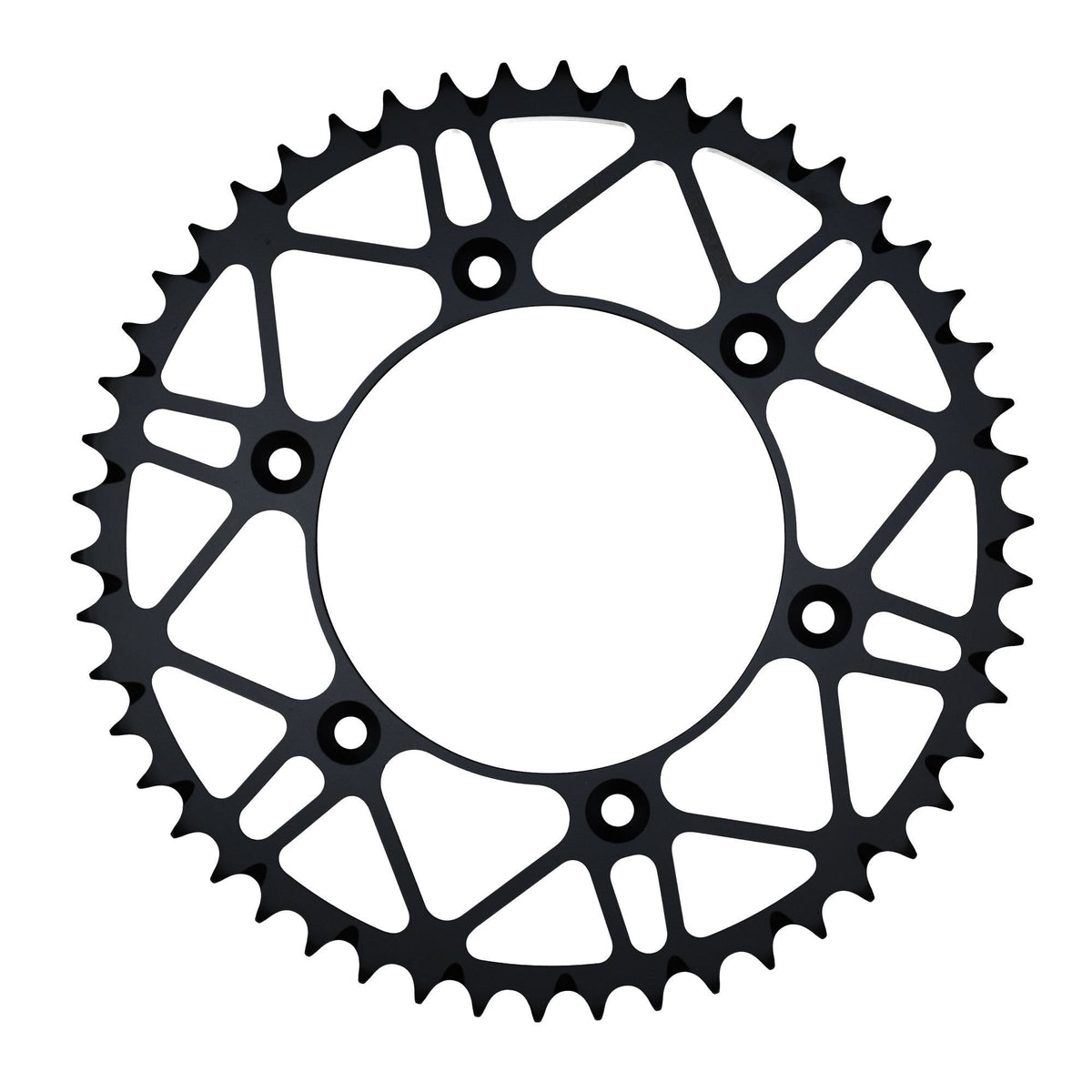

• Rear sprocket: AFAM sprocket steel #520 with mud grooves 51 T - a71304slk.51
• Gear ratio front sprocket-chain-rear sprocket: 14-118-51

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-46286

Fits

KTM 251 - 500 cc SX-F 350 4T 2022
