AFAM chain kit for KTM SX-F 450 20-22 520 XMR3 chain kit

AFAM chain kit for KTM SX-F 450 20-22 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only for compatibility purposes!

Components of the chain kit KTM SX-F 450 4T 2020-2022

• Sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 XMR3 Xs-ring 118 with rivet link - a520xmr3.118

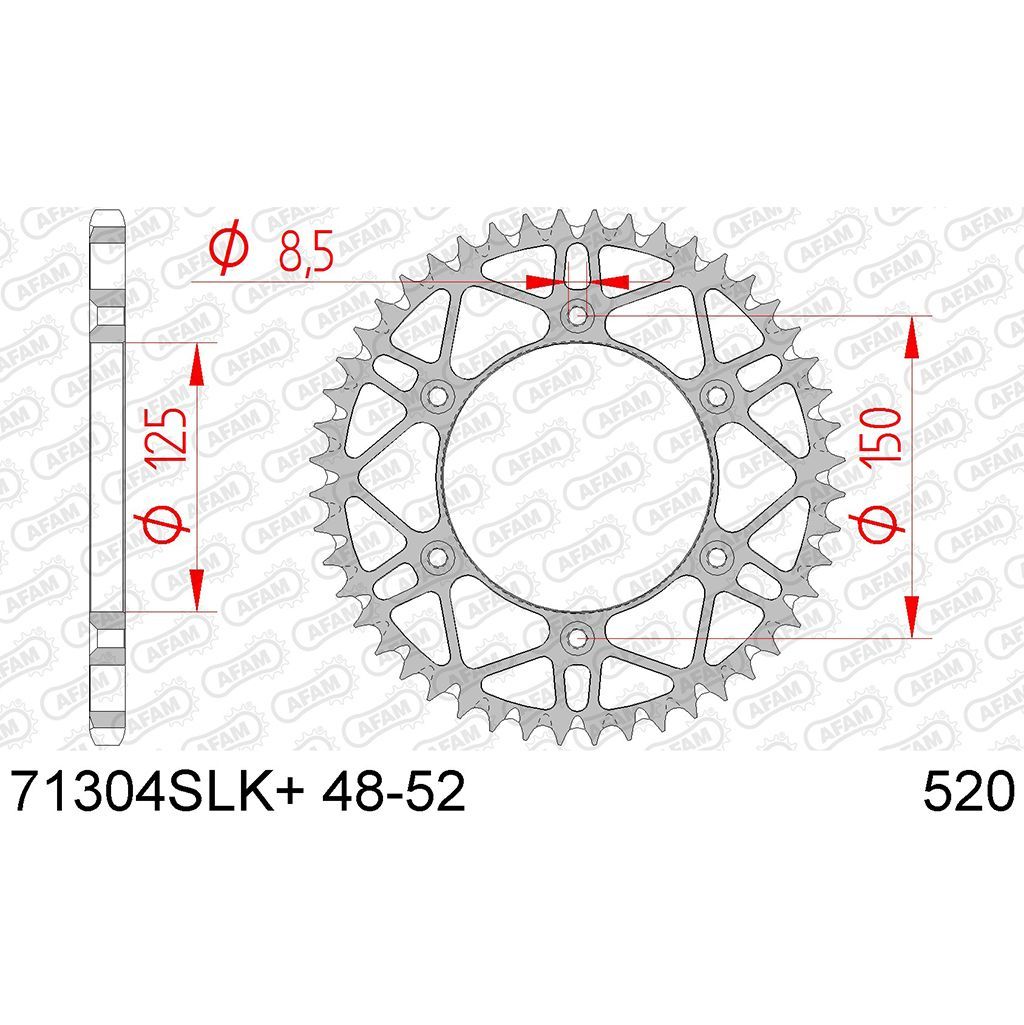

• Chain wheel: AFAM steel chain wheel #520 with mud grooves 49 T - a71304slk.49
• Transmission ratio sprocket-chain-chain wheel: 13-118-49

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-49822

Suitable for

KTM 251 - 500 cc SX-F 450 4T 2020
KTM 251 - 500 cc SX-F 450 4T 2021
KTM 251 - 500 cc SX-F 450 4T 2022
