AFAM chain kit for KTM SX-F 450 Cairoli 2020 520 XMR3 chain kit

AFAM chain kit for KTM SX-F 450 Cairoli 2020 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM SX-F 450 Cairoli 4T 2020-2020

• Sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 XMR3 Xs-ring 118 with rivet link - a520xmr3.118

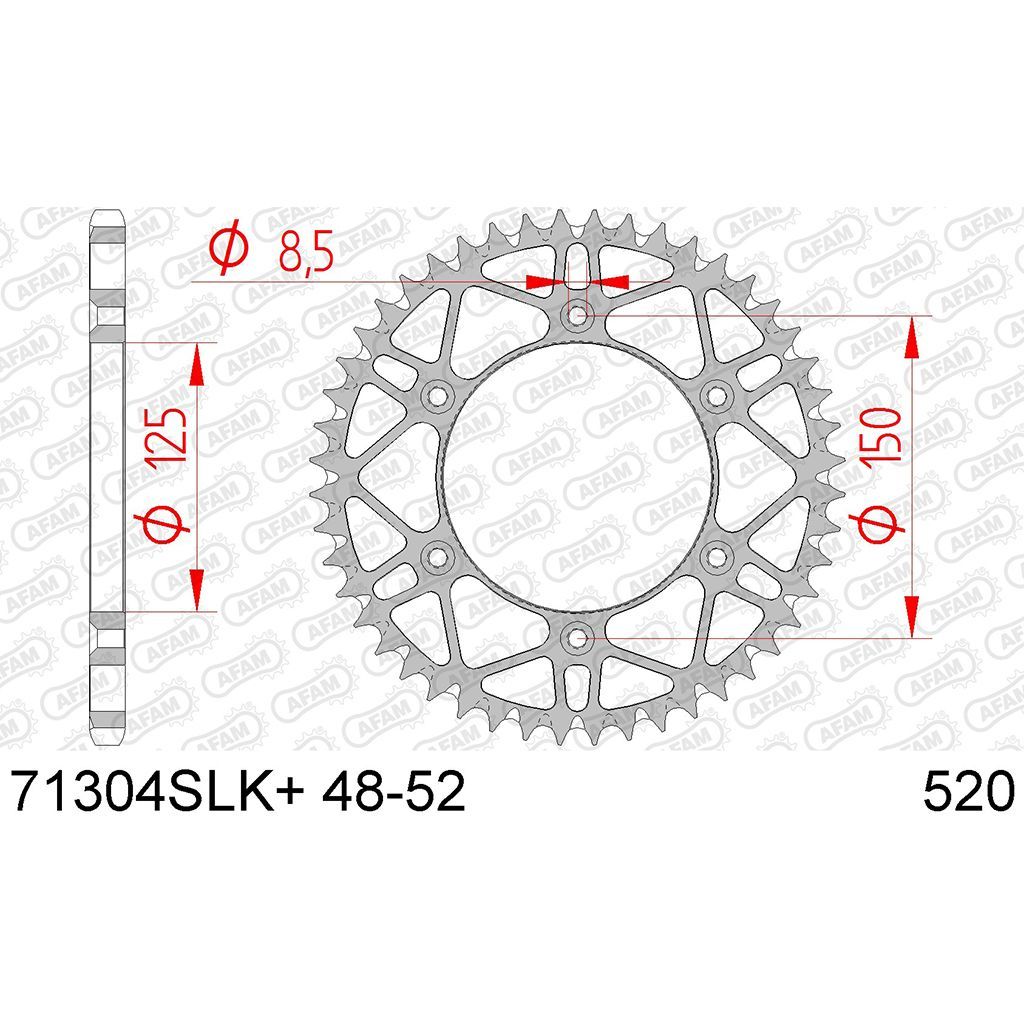

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 49T - a71304slk.49
• Transmission ratio sprocket-chain-rear sprocket: 13-118-49

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-43191

Fits

KTM 251 - 500 cc SX-F 450 Cairoli 4T 2020
