AFAM chain kit for KTM SX-F 450 Factory Edition 2020 520 MR2G chain kit

AFAM chain kit for KTM SX-F 450 Factory Edition 2020 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX-F 450 Factory Edition 4T 2020-2020

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.118

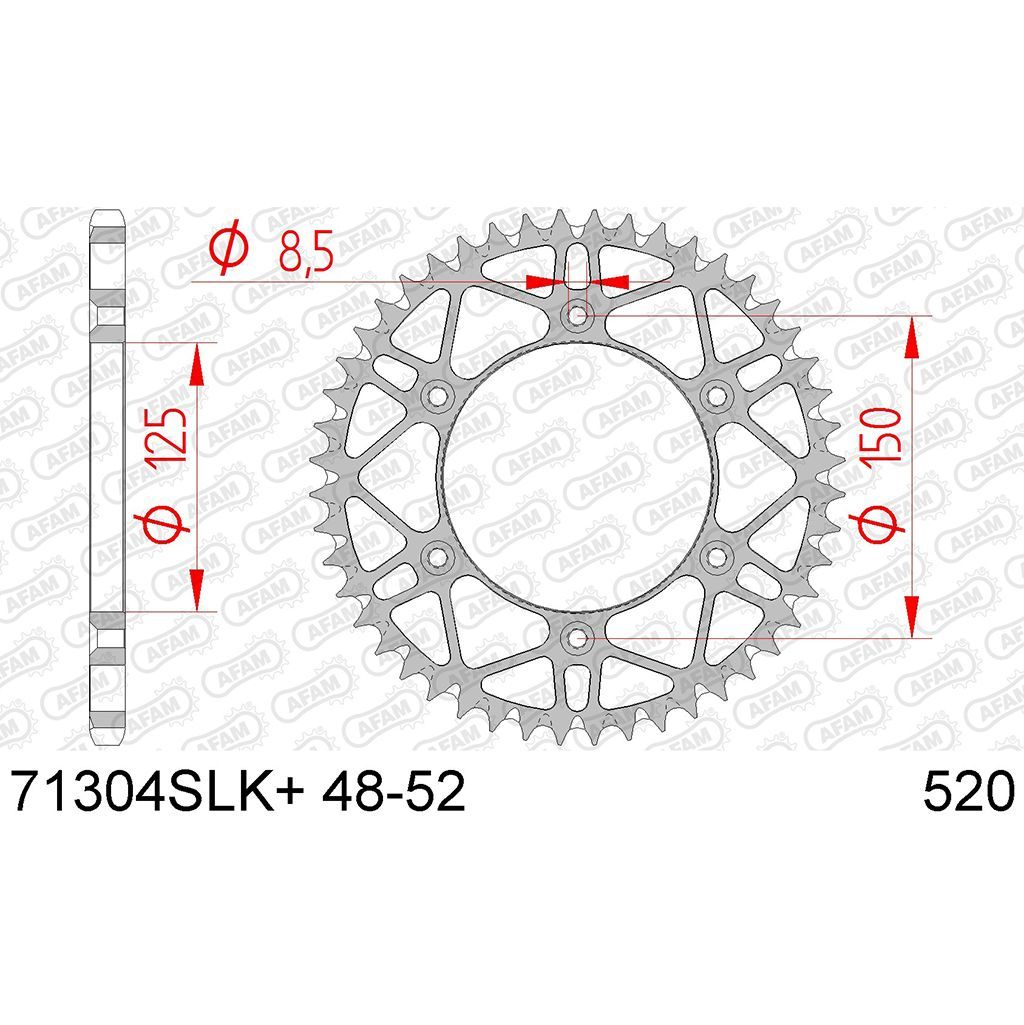

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 49 T - a71304slk.49
• Gear ratio front sprocket-chain-rear sprocket: 13-118-49

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / road, offroad and motocross

Technical specifications:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-46600

Suitable for

KTM 251 - 500 cc SX-F 450 Factory Edition 4T 2020
