AFAM chain kit for KTM XC 450 Quad 08-10 520 MR2G chain kit

AFAM chain kit for KTM XC 450 Quad 08-10 520 MR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit KTM XC 450 Quad 2008-2010

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: AFAM chain 520 MR2-G reinforced 96 with clip master link - a520mr2.g.96

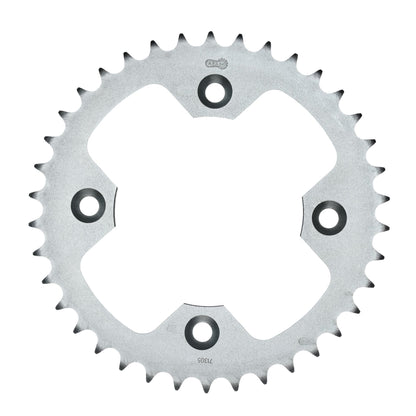

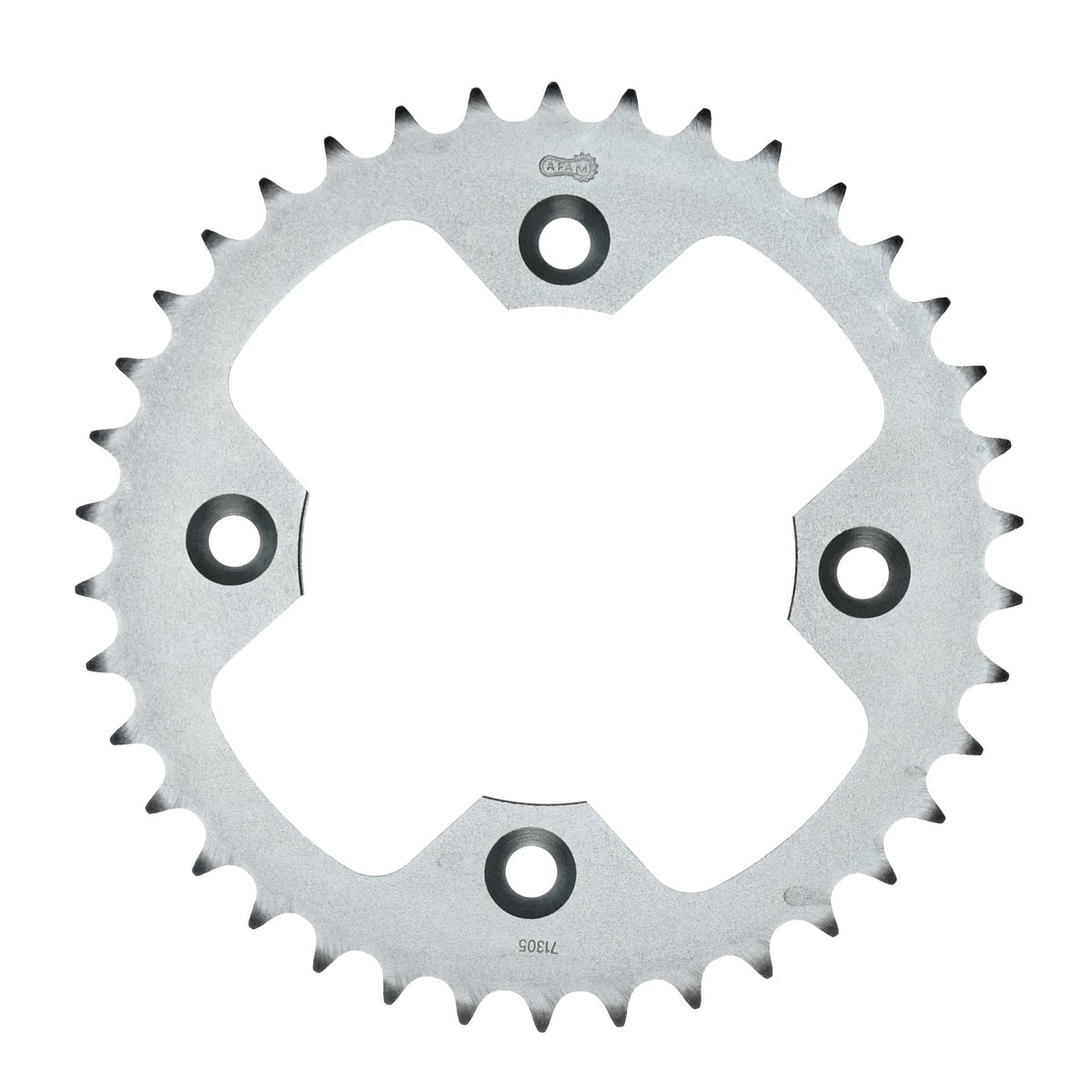

• Chainwheel: AFAM STEEL chainwheel #520 38 teeth - a71305.38
• Transmission ratio sprocket-chain-chainwheel: 14-96-38

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-49101

Suitable for

KTM 251 - 500 cc XC 450 Quad 2008
KTM 251 - 500 cc XC 450 Quad 2009
KTM 251 - 500 cc XC 450 Quad 2010
