AFAM chain kit for KTM XC 450 Quad 08-10 520 XMR3 chain kit

AFAM chain kit for KTM XC 450 Quad 08-10 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM XC 450 Quad 2008-2010

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: AFAM chain 520 XMR3 Xs-ring 96 w. rivet link - a520xmr3.96

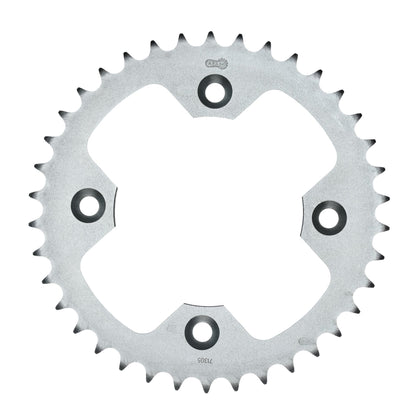

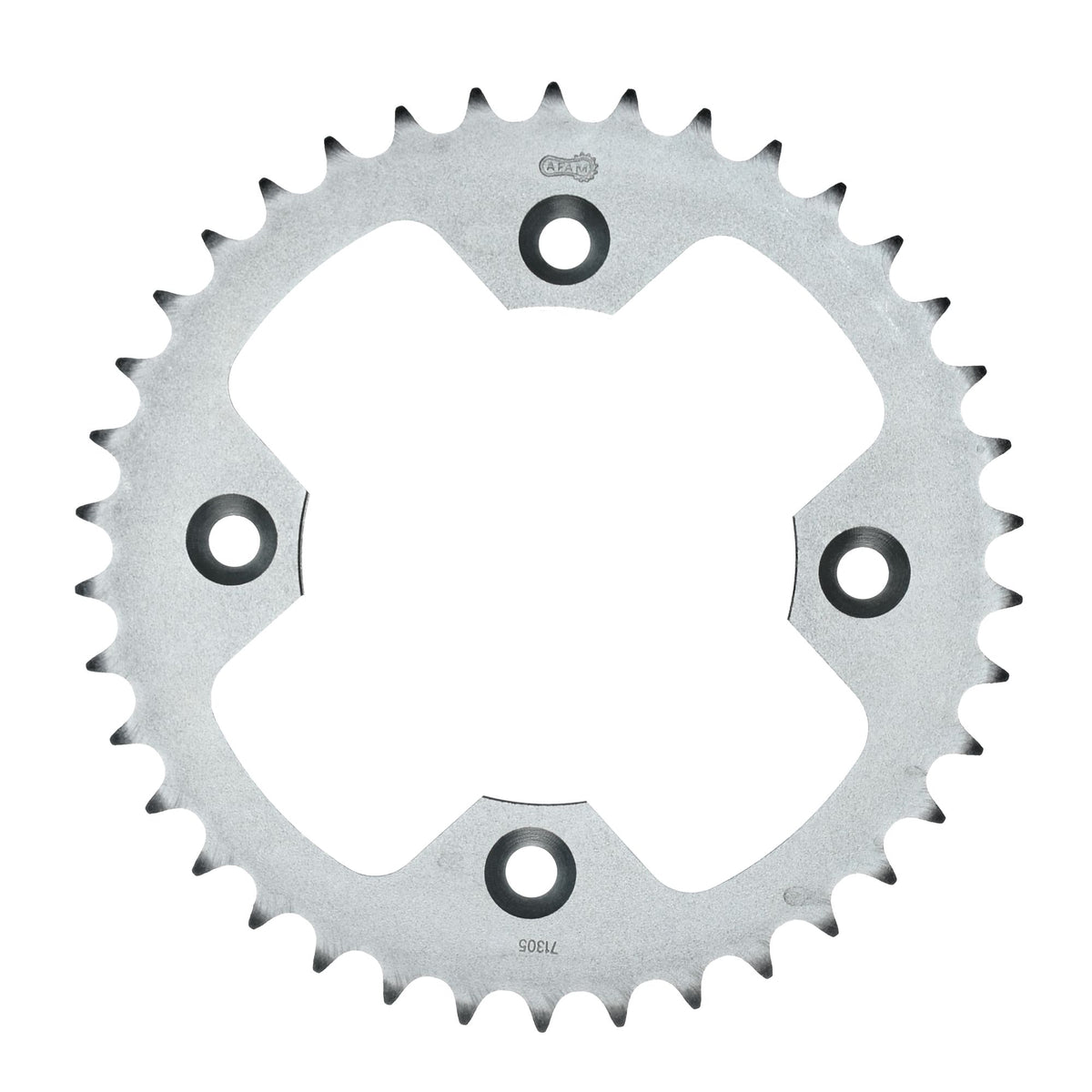

• Chain wheel: AFAM chain wheel STEEL #520 38 teeth - a71305.38
• Gear ratio sprocket-chain-chain wheel: 14-96-38

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-45061

Fits for

KTM 251 - 500 cc XC 450 Quad 2008
KTM 251 - 500 cc XC 450 Quad 2009
KTM 251 - 500 cc XC 450 Quad 2010
