AFAM chain kit for KTM XC 450 Quad 08-10 520 XSRG chain kit

AFAM Chain Kit for KTM XC 450 Quad 08-10 520 XSRG Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM XC 450 Quad 2008-2010

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: AFAM chain 520 XSR-G Xs-Ring 96 with rivet link - a520xsr.g.96

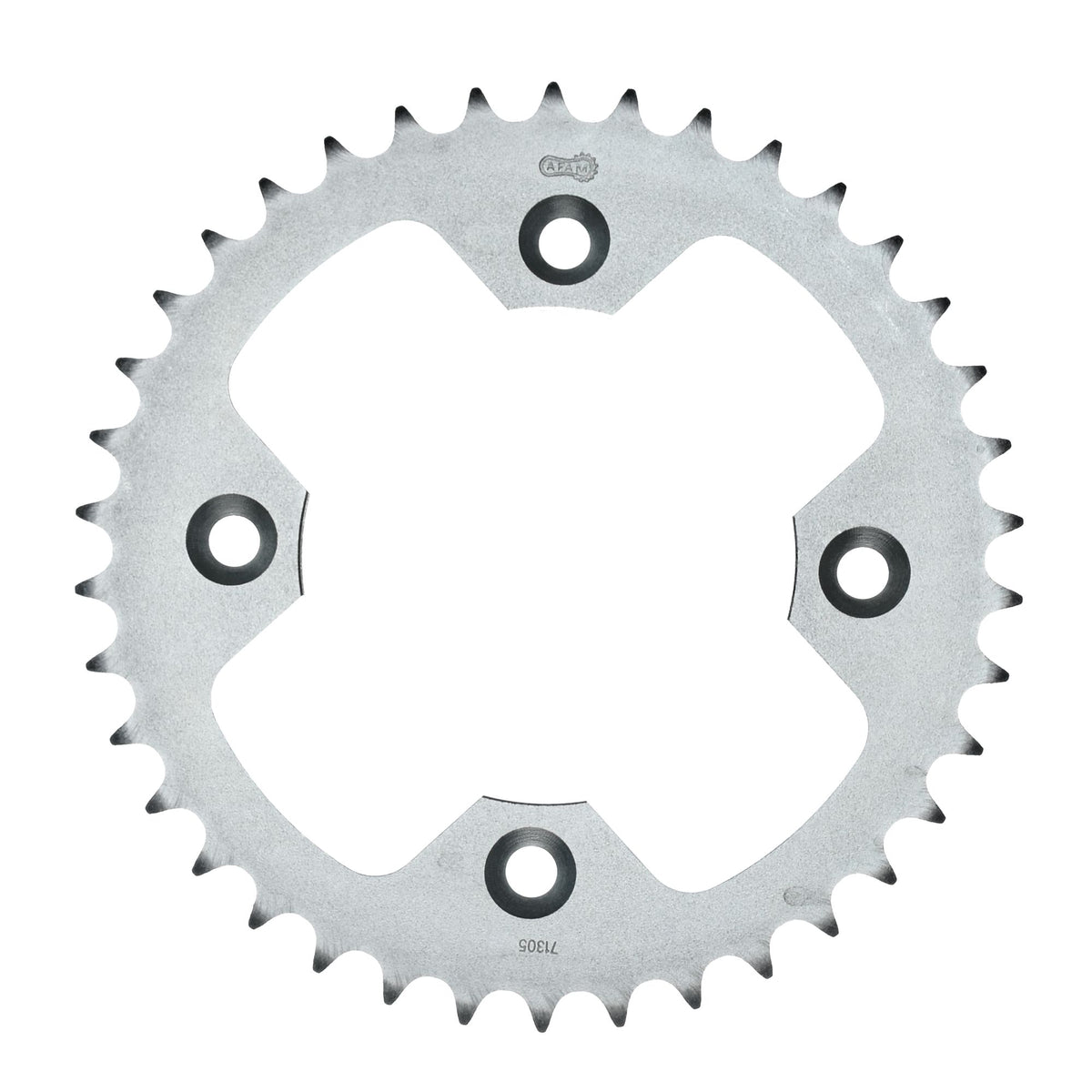

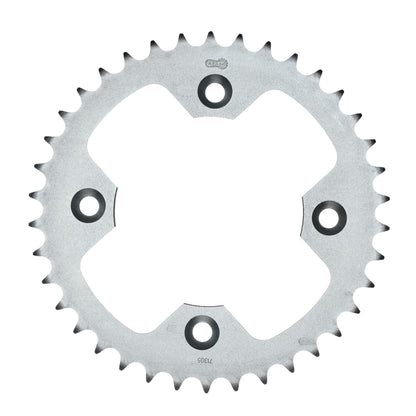

• Rear sprocket: AFAM rear sprocket STEEL #520 38 teeth - a71305.38
• Gear ratio sprocket-chain-rear sprocket: 14-96-38

AFAM 520 XSR-G

Super reinforced chain with smooth-running properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and offroad

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-49102

Suitable for

KTM 251 - 500 ccm XC 450 Quad 2008
KTM 251 - 500 ccm XC 450 Quad 2009
KTM 251 - 500 ccm XC 450 Quad 2010
