AFAM chain kit for KTM XC 525 Quad 08-11 520 MR2G chain kit

AFAM chain kit for KTM XC 525 Quad 08-11 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM XC 525 Quad 2008-2011

• Sprocket: AFAM sprocket #520 15 teeth - a73301.15
• Chain: AFAM chain 520 MR2-G reinforced 96 with clip-type master link - a520mr2.g.96

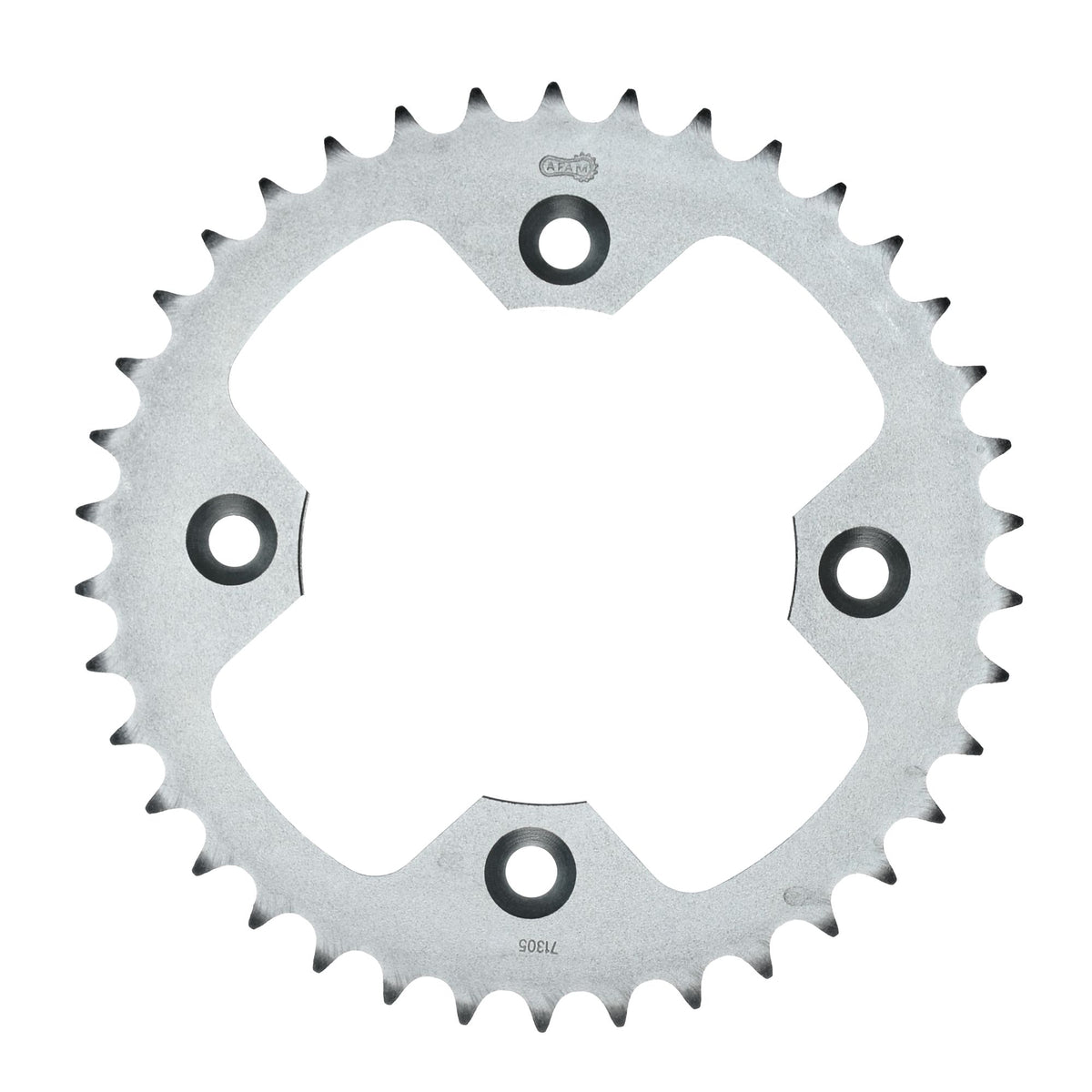

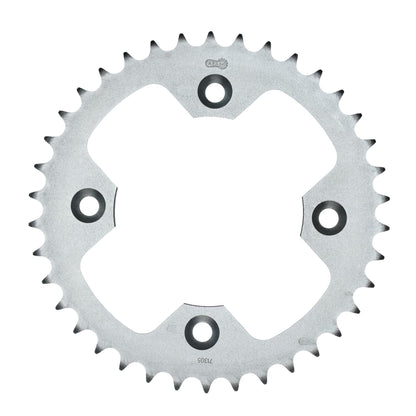

• Rear sprocket: AFAM rear sprocket STEEL #520 37 teeth - a71305.37
• Gear ratio sprocket-chain-rear sprocket: 15-96-37

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / road, off-road, and motocross

Technical specifications:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-45065

Fits

KTM 501 - 750 cc XC 525 Quad 2008
KTM 501 - 750 cc XC 525 Quad 2009
KTM 501 - 750 cc XC 525 Quad 2010
KTM 501 - 750 cc XC 525 Quad 2011
