AFAM chain kit for KTM XC 525 Quad 08-11 520 XMR3 chain kit

AFAM chain kit for KTM XC 525 Quad 08-11 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM XC 525 Quad 2008-2011

• Sprocket: AFAM sprocket #520 15 teeth - a73301.15
• Chain: AFAM chain 520 XMR3 Xs-ring 96 with rivet link - a520xmr3.96

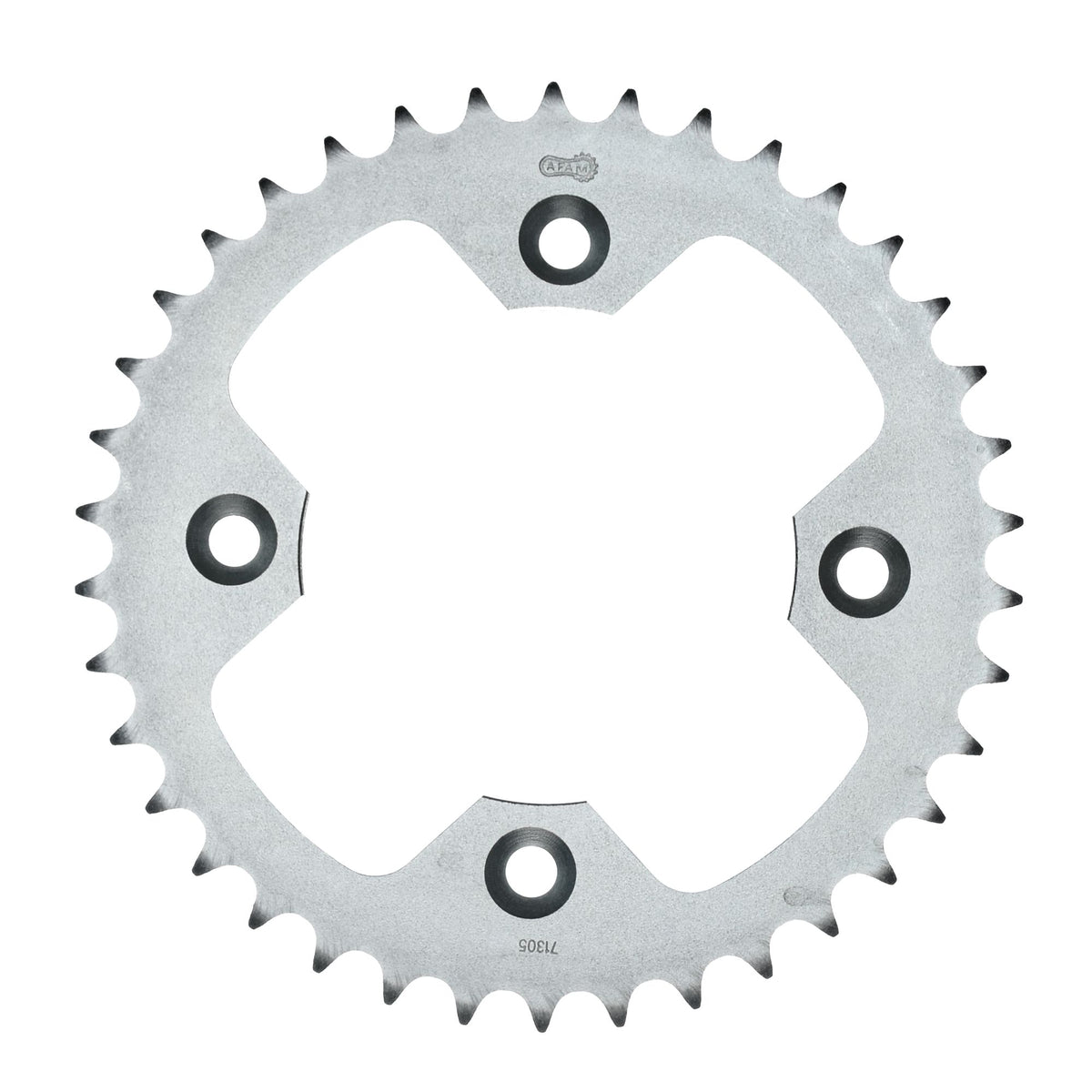

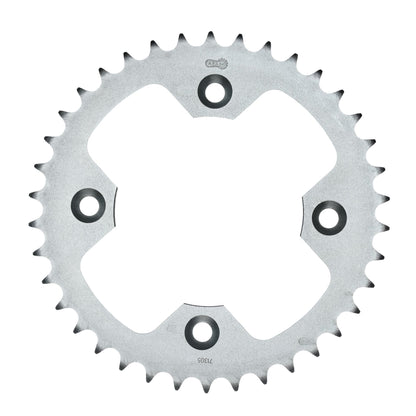

• Rear sprocket: AFAM rear sprocket STEEL #520 37 teeth - a71305.37
• Gear ratio sprocket-chain-rear sprocket: 15-96-37

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-48792

Suitable for

KTM 501 - 750 cc XC 525 Quad 2008
KTM 501 - 750 cc XC 525 Quad 2009
KTM 501 - 750 cc XC 525 Quad 2010
KTM 501 - 750 cc XC 525 Quad 2011
