AFAM chain kit for KTM XC 525 Quad 08-11 520 XSRG chain kit

AFAM Chain Kit for KTM XC 525 Quad 08-11 520 XSRG chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit KTM XC 525 Quad 2008-2011

• Sprocket: AFAM sprocket #520 15 teeth - a73301.15
• Chain: AFAM chain 520 XSR-G Xs-ring 96 with rivet link - a520xsr.g.96

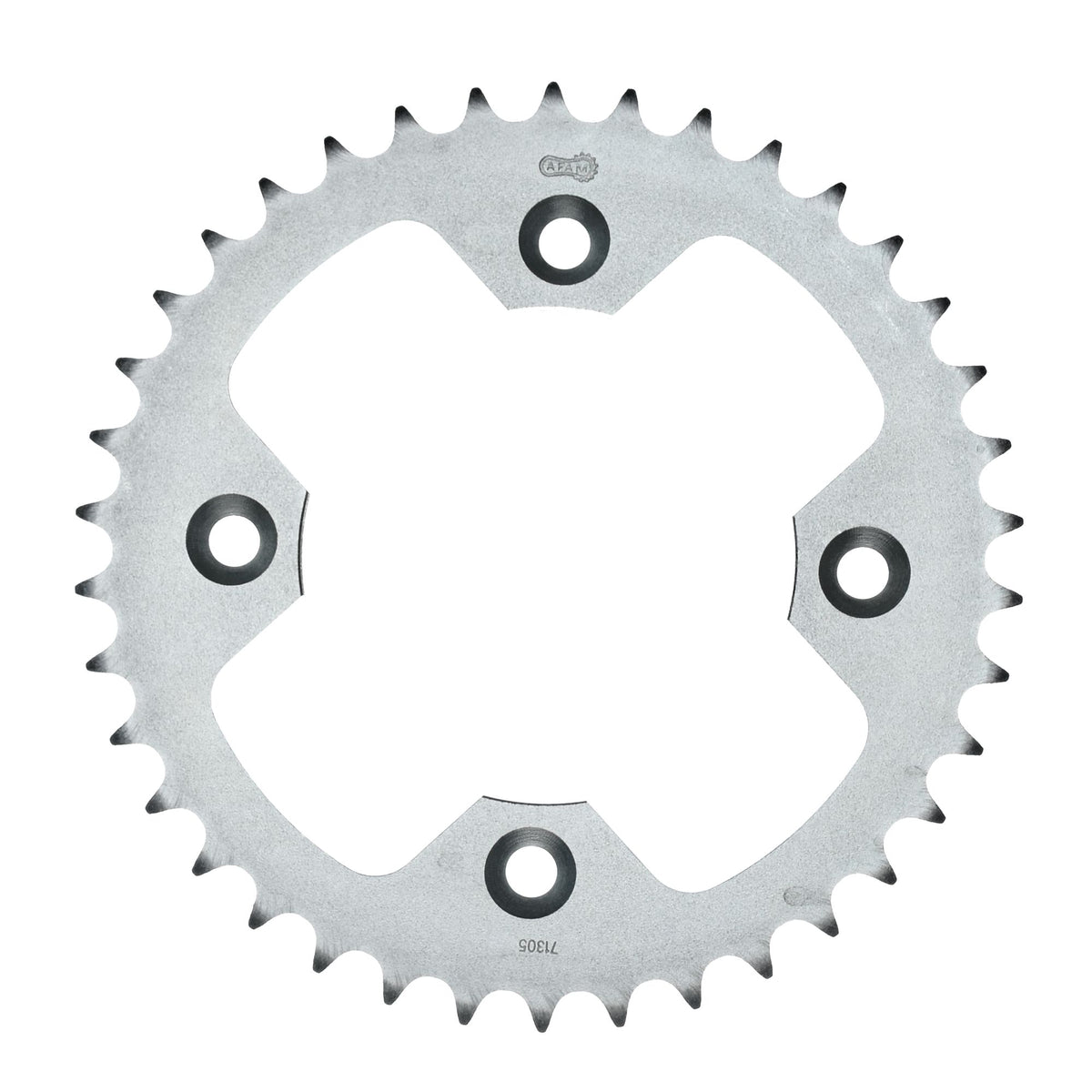

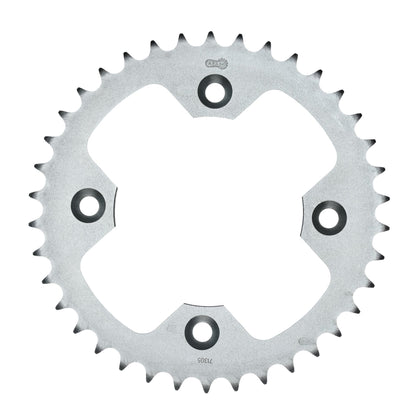

• Rear sprocket: AFAM STEEL rear sprocket #520 37 teeth - a71305.37
• Gear ratio sprocket-chain-rear sprocket: 15-96-37

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical specifications:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-48793

Suitable for

KTM 501 - 750 cc XC 525 Quad 2008
KTM 501 - 750 cc XC 525 Quad 2009
KTM 501 - 750 cc XC 525 Quad 2010
KTM 501 - 750 cc XC 525 Quad 2011
