AFAM Chain Kit for KTM XC-W 125 17-19 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to demonstrate compatibility!

Components of the KTM XC-W 125 2T 2017-2019 chain kit

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 118 links with rivet link - a520xmr3.118

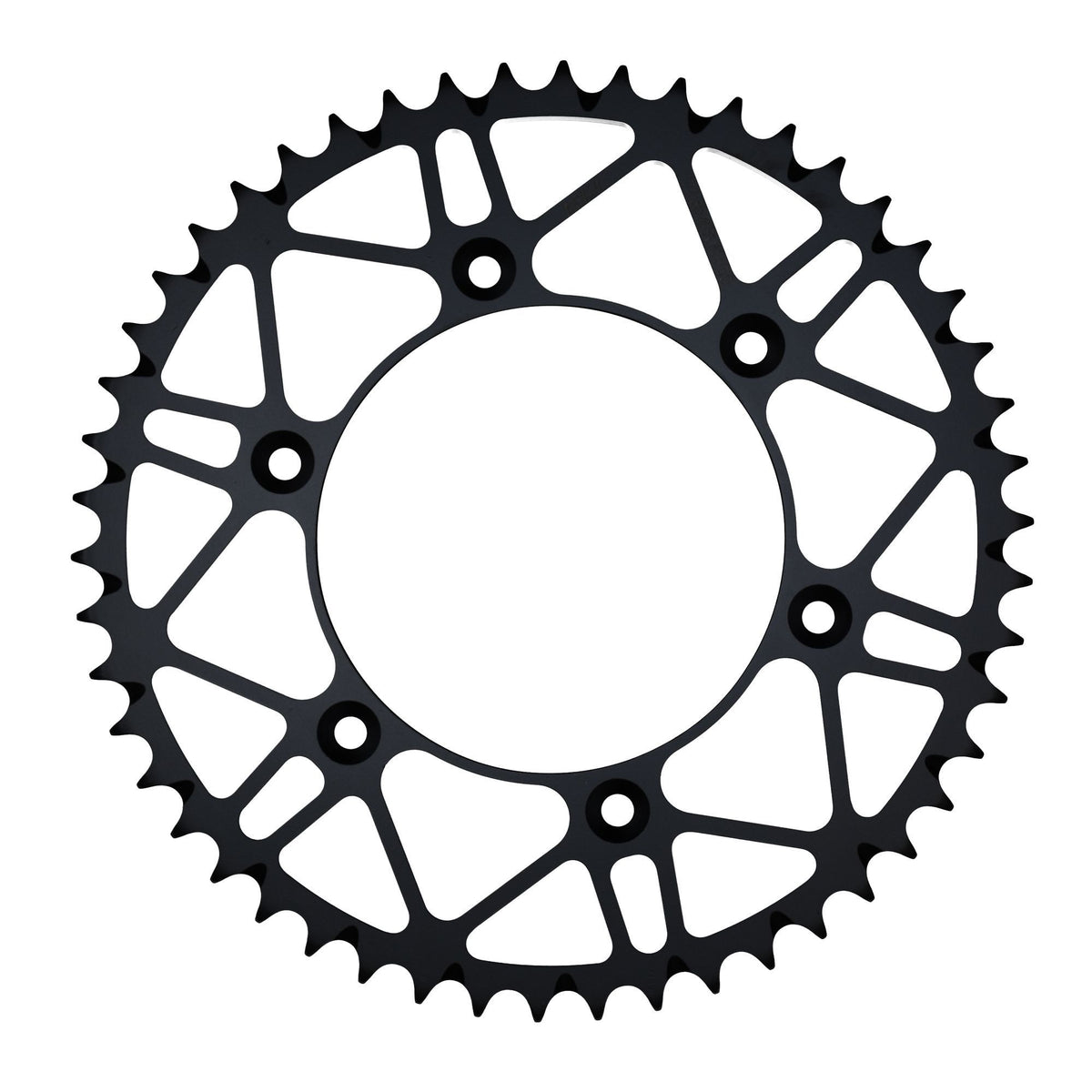

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 50 T - a71304slk.50
• Gear ratio front sprocket-chain-rear sprocket: 13-118-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-18089

Suitable for

KTM 101 - 125 cc XC-W 125 2T 2017
KTM 101 - 125 cc XC-W 125 2T 2018
KTM 101 - 125 cc XC-W 125 2T 2019
