AFAM chain kit for KTM XC-W 150 17-19 520 MR2G chain kit

AFAM chain kit for KTM XC-W 150 17-19 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the KTM XC-W 150 2T 2017-2019 chain kit

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 MR2-G with clip master link - a520mr2.g.118

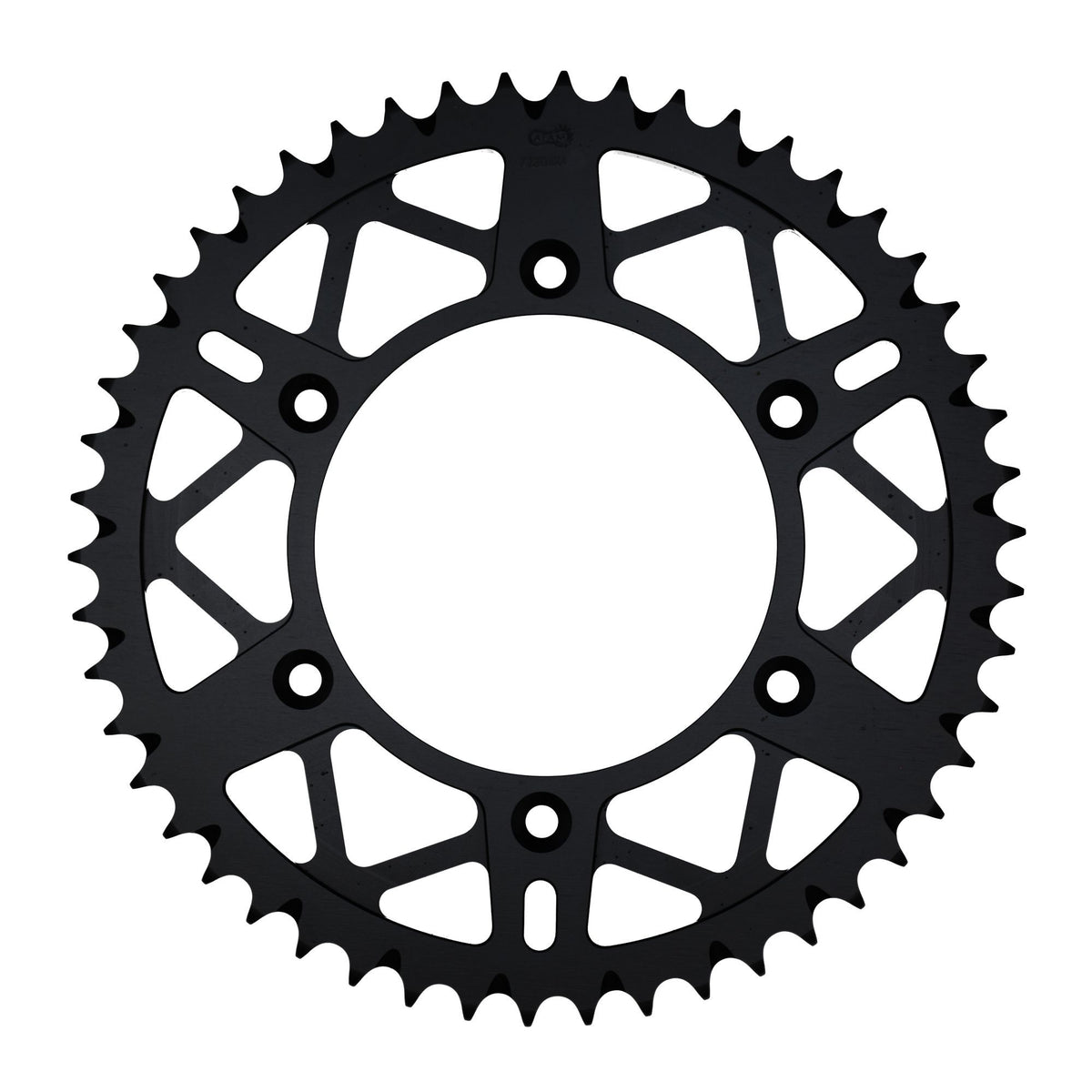

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50T - a72304PK.50
• Transmission ratio front sprocket-chain-rear sprocket: 13-118-50

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-49287

Fits

KTM 126 - 250 cc XC-W 150 2T 2017
KTM 126 - 250 cc XC-W 150 2T 2018
KTM 126 - 250 cc XC-W 150 2T 2019
