AFAM chain kit for Kymco CK 125 04-05 428 R1G chain kit

AFAM Chain Kit for Kymco CK 125 04-05 428 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Kymco CK 125 2004-2005

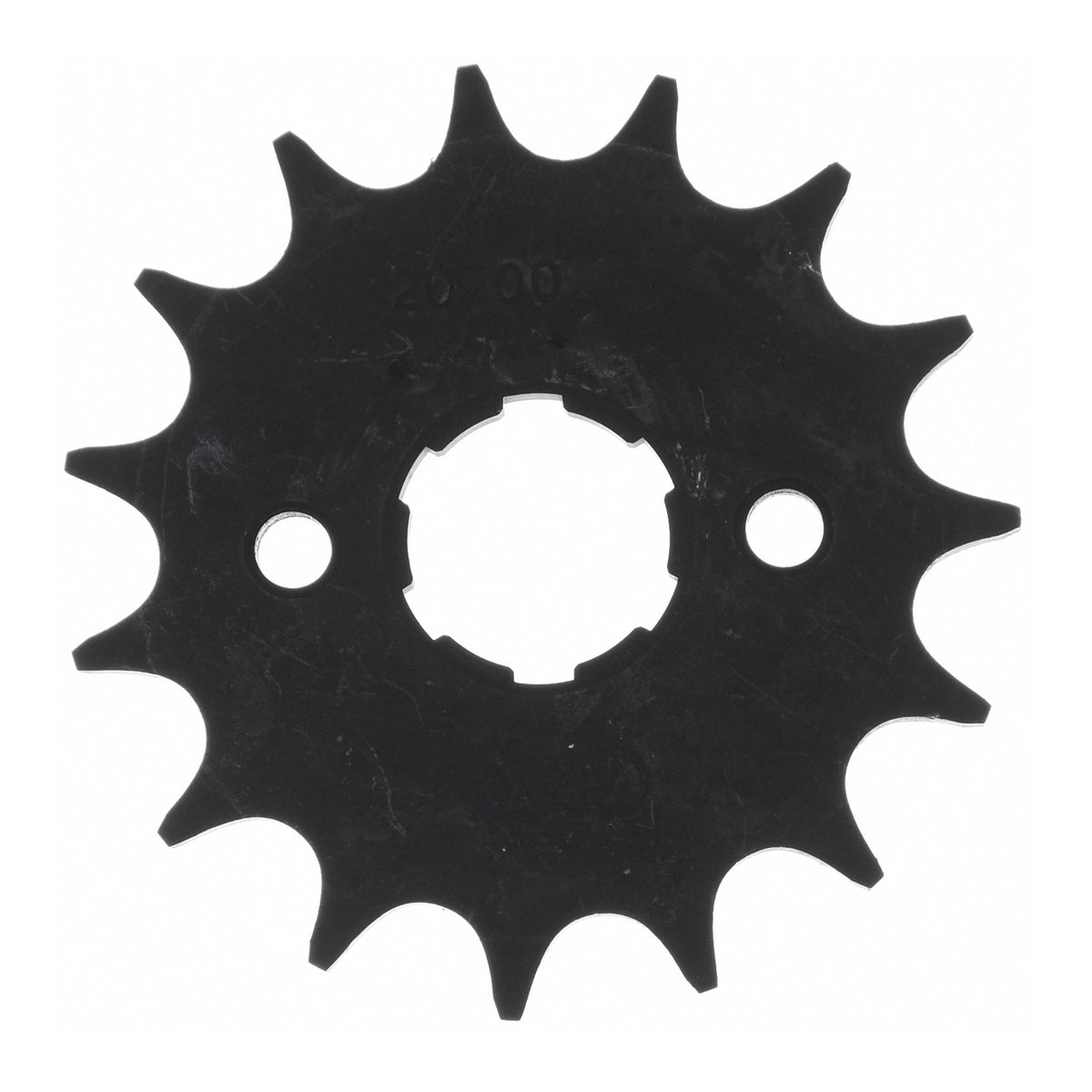

• Front sprocket: AFAM front sprocket #428 16 teeth - a20200.16
• Chain: AFAM chain 428 R1-G reinforced 108 with clip link - a428r1.g.108

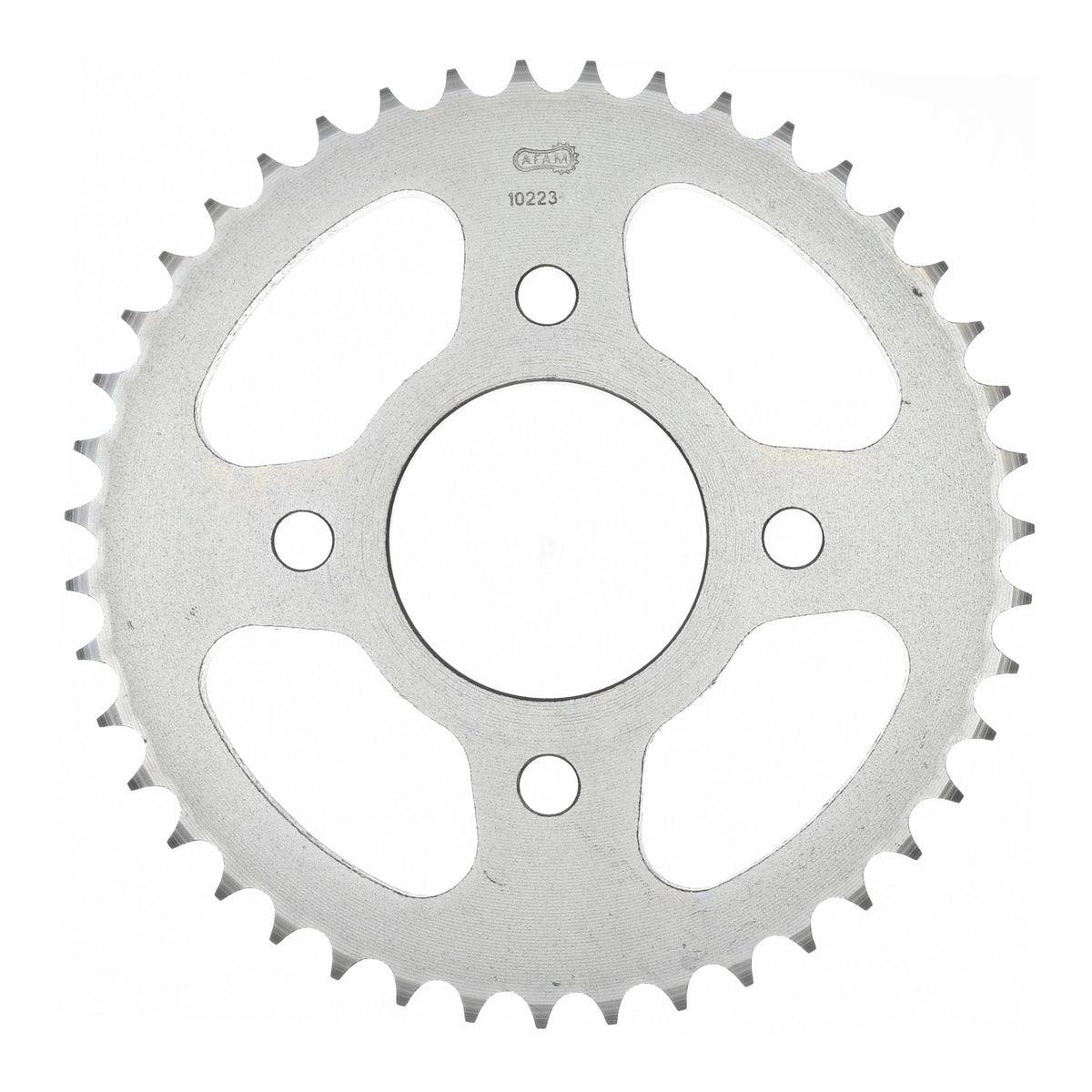

• Rear sprocket: AFAM rear sprocket STEEL #428 4-hole 39 teeth - a10223.39
• Gear ratio front sprocket-chain-rear sprocket: 16-108-39

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-47111

Suitable for

Kymco 101 - 125 cc CK 125 2004
Kymco 101 - 125 cc CK 125 2005
