AFAM chain kit for Kymco CK1 125 14-16 428 R1G chain kit

AFAM Chain Kit for Kymco CK1 125 14-16 428 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are mentioned only to demonstrate compatibility!

Components of the chain kit Kymco CK1 125 2014-2016

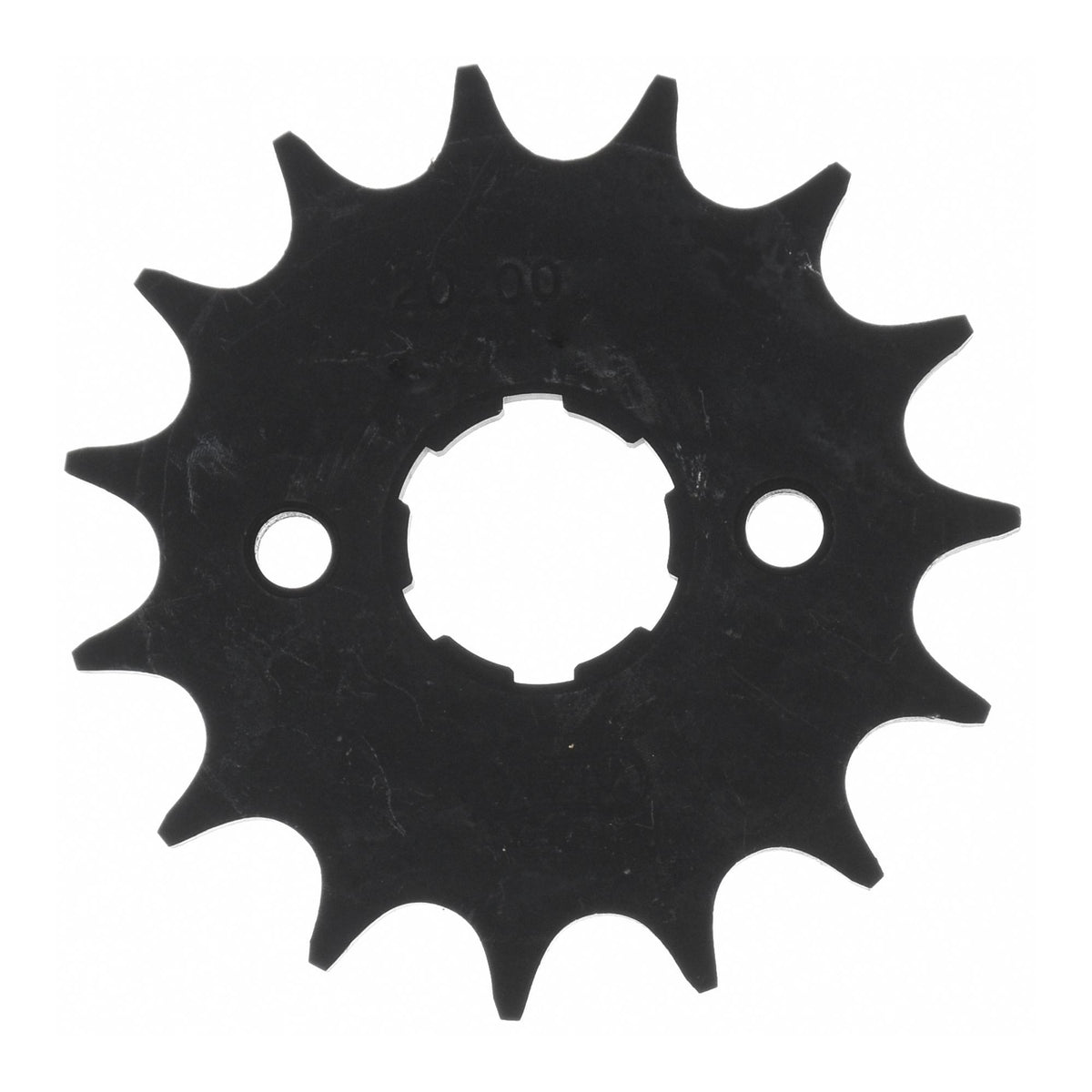

• Front sprocket: AFAM front sprocket #428 15 teeth - a20200.15
• Chain: AFAM chain 428 R1-G reinforced 122 with clip-link - a428r1.g.122
• Rear sprocket: AFAM STEEL rear sprocket #428 38 teeth - a10201.38
• Gear ratio sprocket-chain-rear sprocket: 15-122-38

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-50119

Suitable for

Kymco 101 - 125 cc CK1 125 2014
Kymco 101 - 125 cc CK1 125 2015
Kymco 101 - 125 cc CK1 125 2016
