AFAM chain kit for Laverda Supersport 750 98-01 520 XHR2G chain kit

AFAM chain kit for Laverda Supersport 750 98-01 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Laverda Supersport 750 1998-2001 chain kit

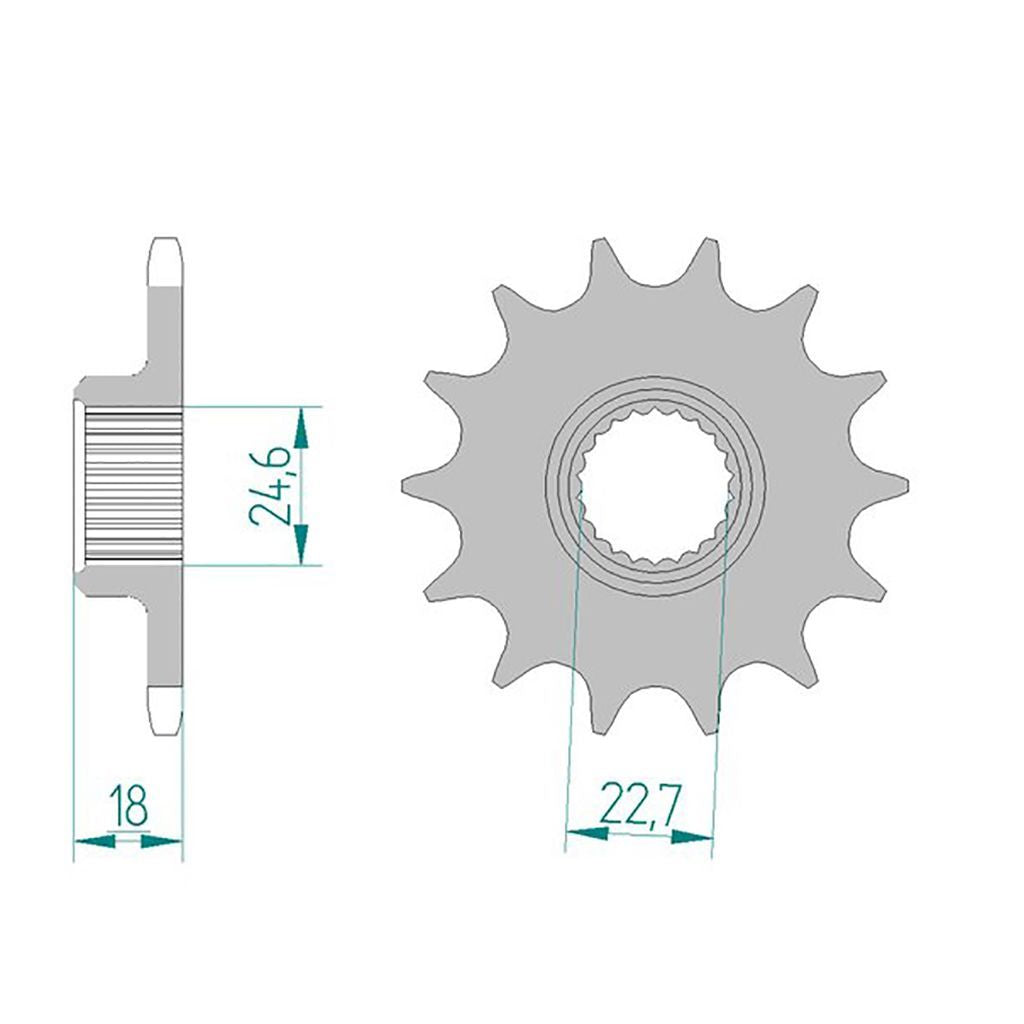

• Front sprocket: AFAM front sprocket #520 16 teeth - a70600.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 110 w/ rivet link - a520xhr2.g.110

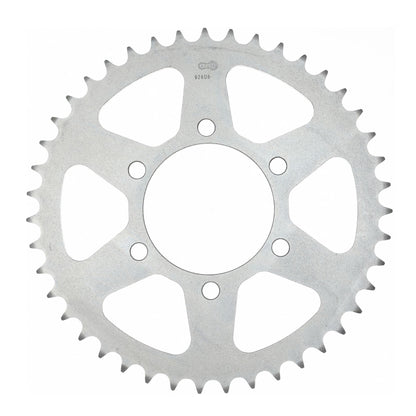

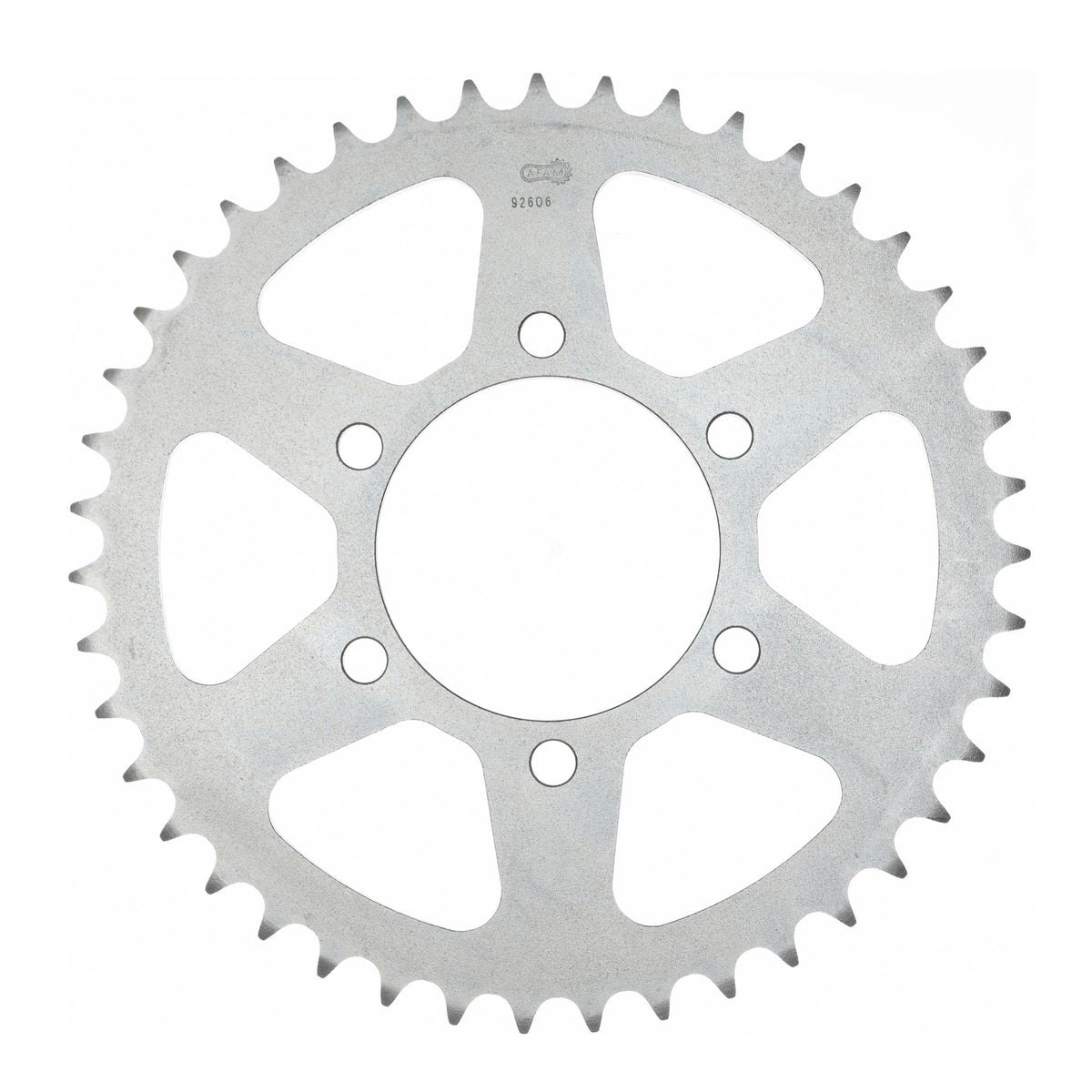

• Rear sprocket: AFAM STEEL rear sprocket #520 43 teeth - a92606.43
• Gear ratio sprocket-chain-rear sprocket: 16-110-43

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-47134

Fits

Laverda 501 - 750 cc Supersport 750 1998
Laverda 501 - 750 cc Supersport 750 1999
Laverda 501 - 750 cc Supersport 750 2000
Laverda 501 - 750 cc Supersport 750 2001
