AFAM chain kit for MBK X-Limit Supermoto 50 03-06 420 R1G chain kit

AFAM Chain Kit for MBK X-Limit Supermoto 50 03-06 420 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit MBK X-Limit Supermoto 50 2003-2006

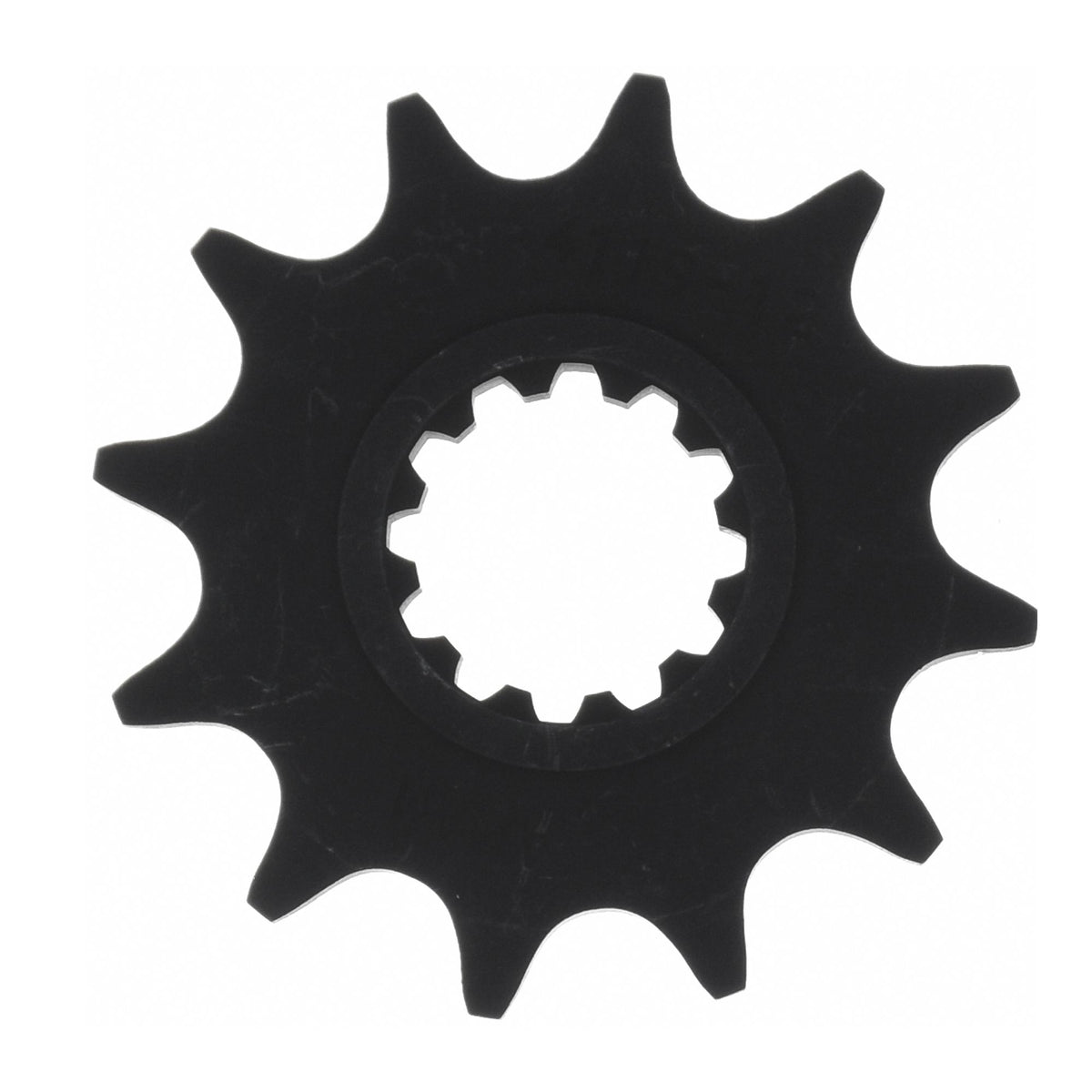

• Front sprocket: AFAM front sprocket #420 11 teeth - a94119.11
• Chain: AFAM chain 420 R1-G reinforced 126 with clip connecting link - a420r1.g.126

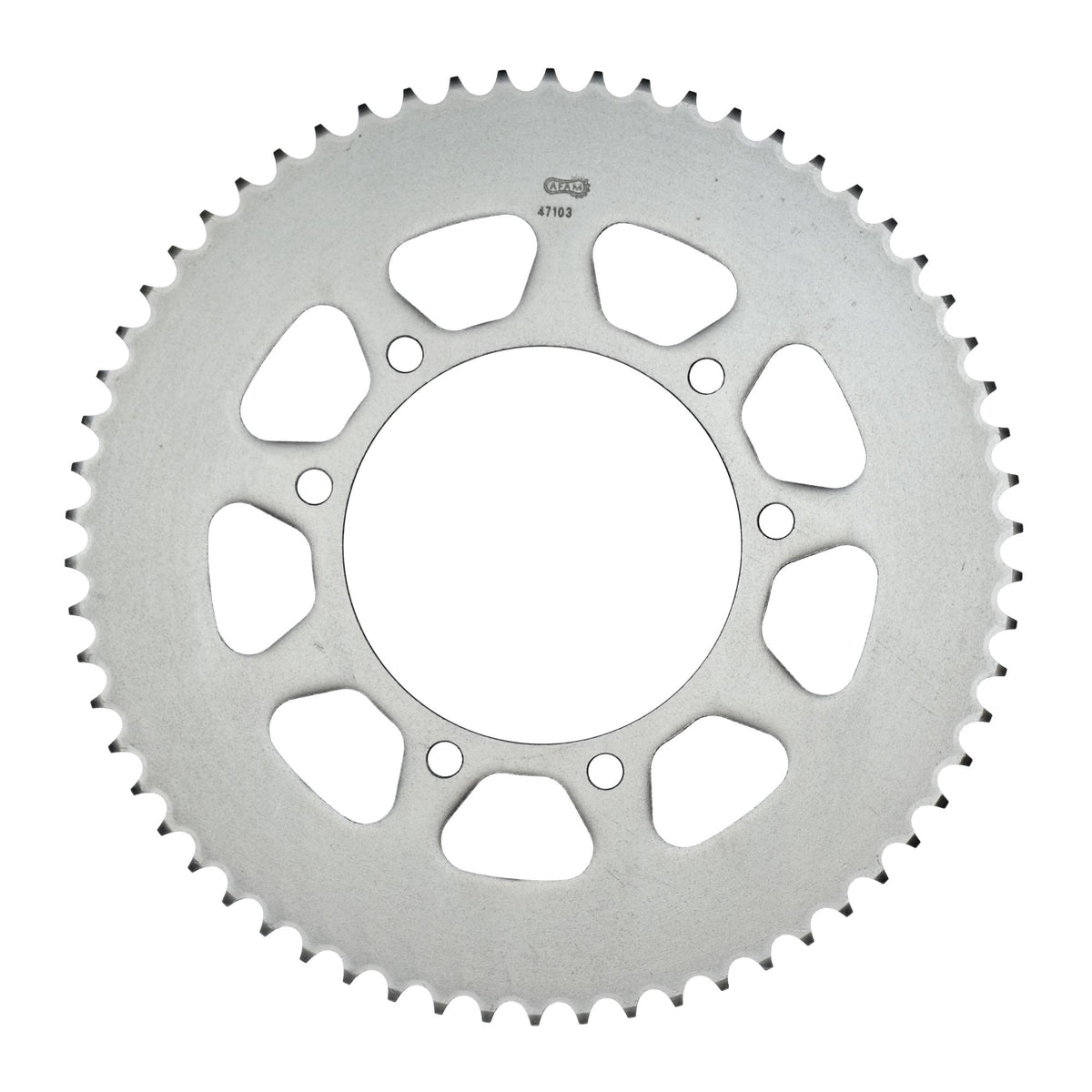

• Rear sprocket: AFAM rear sprocket STEEL #420 48 teeth - a47103.48
• Gear ratio front sprocket-chain-rear sprocket: 11-126-48

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical data:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-50145

Suitable for

MBK 0 - 100 cc X-Limit Supermoto 50 2003
MBK 0 - 100 cc X-Limit Supermoto 50 2004
MBK 0 - 100 cc X-Limit Supermoto 50 2005
MBK 0 - 100 cc X-Limit Supermoto 50 2006
