AFAM chain kit for Moto Morini Granpasso 1200 08-09 525 XSR2G chain kit

AFAM chain kit for Moto Morini Granpasso 1200 08-09 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit Moto Morini Granpasso 1200 2008-2009

• Front sprocket: AFAM front sprocket #525 17 teeth - a94902.17
• Chain: AFAM chain 525 XSR2-G Xs-Ring 106 with rivet link - a525xsr2.g.106

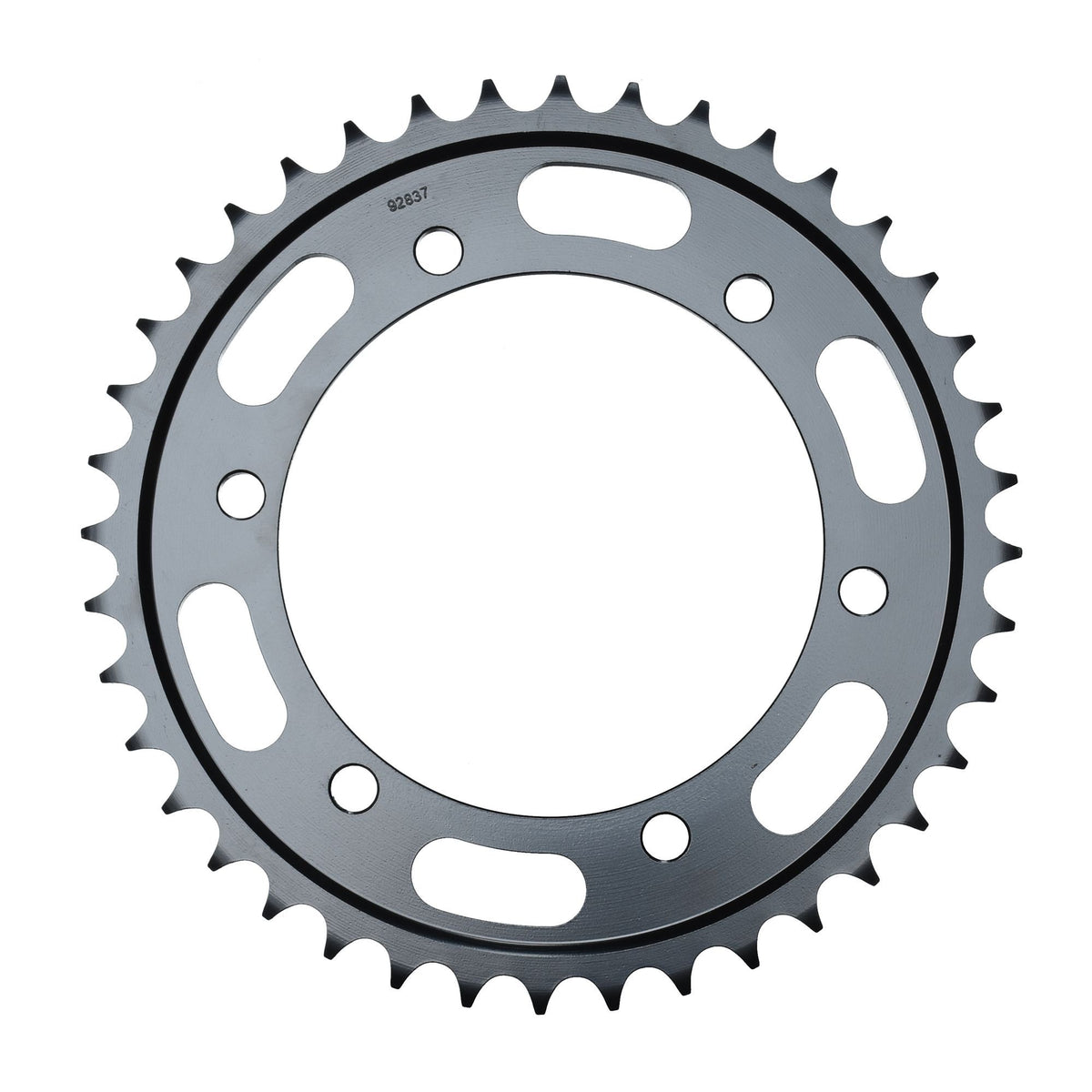

• Rear sprocket: AFAM steel rear sprocket #525 40 teeth - a92837.40
• Gear ratio front sprocket-chain-rear sprocket: 17-106-40

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-44715

Suitable for

Moto Morini over 1001 cc Granpasso 1200 2008
Moto Morini over 1001 cc Granpasso 1200 2009
