AFAM chain kit for MV Agusta Brutale 1090 Corsa ABS 14-15 525 XSR2G chain kit

AFAM chain kit for MV Agusta Brutale 1090 Corsa ABS 14-15 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit MV Agusta Brutale 1090 Corsa ABS B5 2014-2015

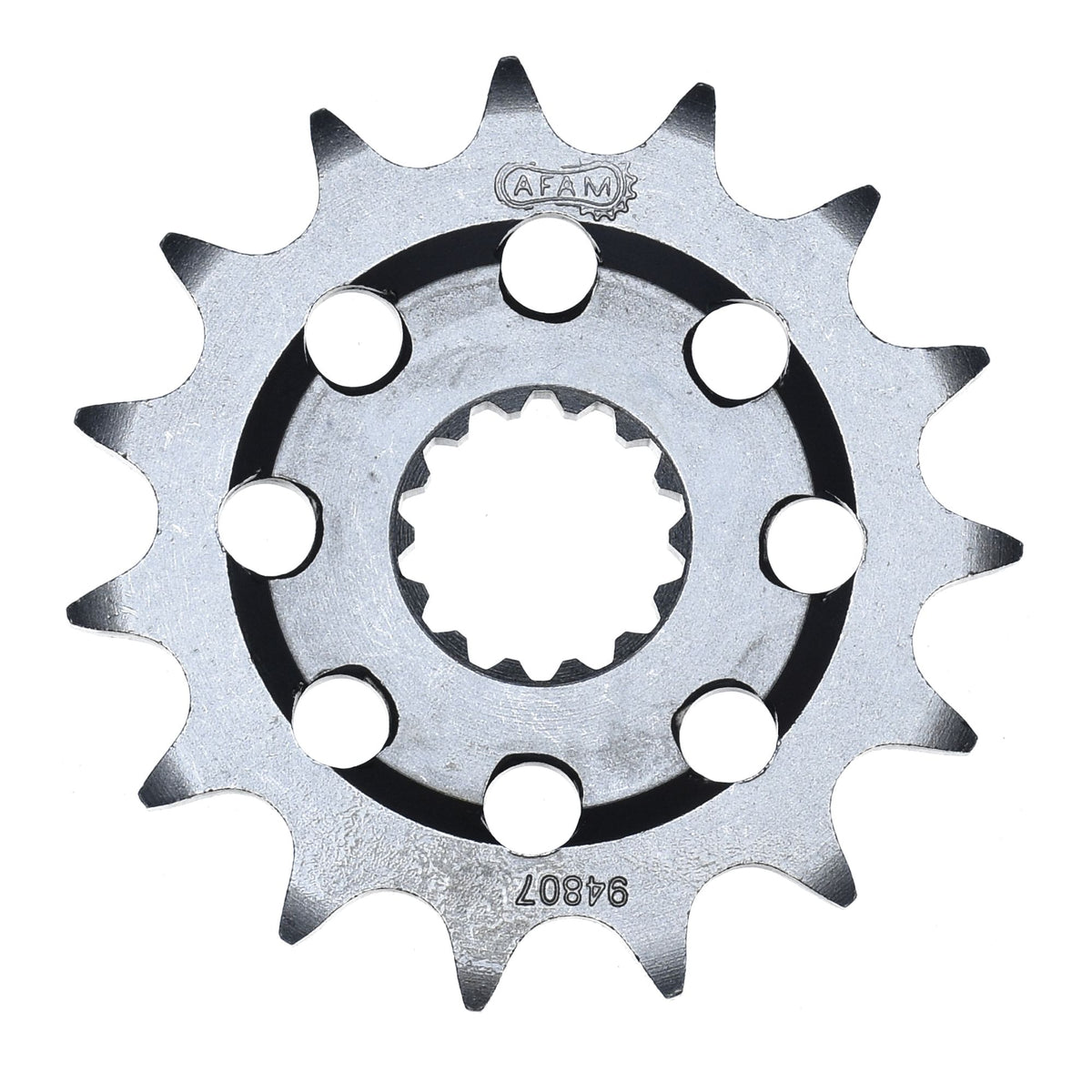

• Sprocket: AFAM sprocket #525 Sport f. MV 910-1090 15 teeth - a94807.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 112 w. rivet link - a525xsr2.g.112

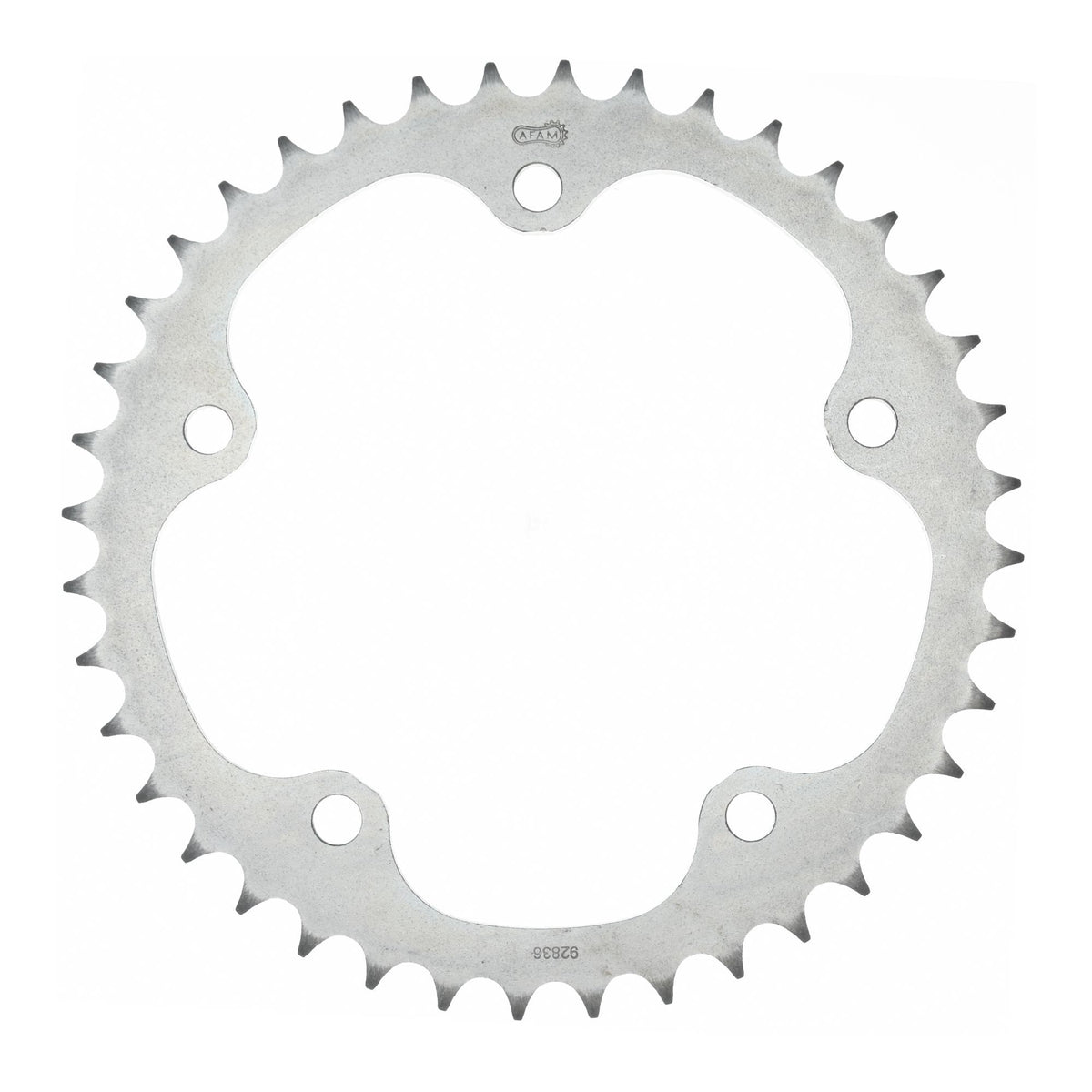

• Rear sprocket: AFAM rear sprocket STEEL #525 43 teeth - a92836.43
• Gear ratio sprocket-chain-rear sprocket: 15-112-43

AFAM 525 XSR2-G

Super reinforced chain with smooth running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-44889

Suitable for

MV Agusta over 1001 cc Brutale 1090 Corsa ABS B5 2014
MV Agusta over 1001 cc Brutale 1090 Corsa ABS B5 2015
