AFAM chain kit for MV Agusta Brutale 990 R 10-11 525 XSR2G chain kit

AFAM Chain Kit for MV Agusta Brutale 990 R 10-11 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the MV Agusta Brutale 990 R 2010-2011 chain kit

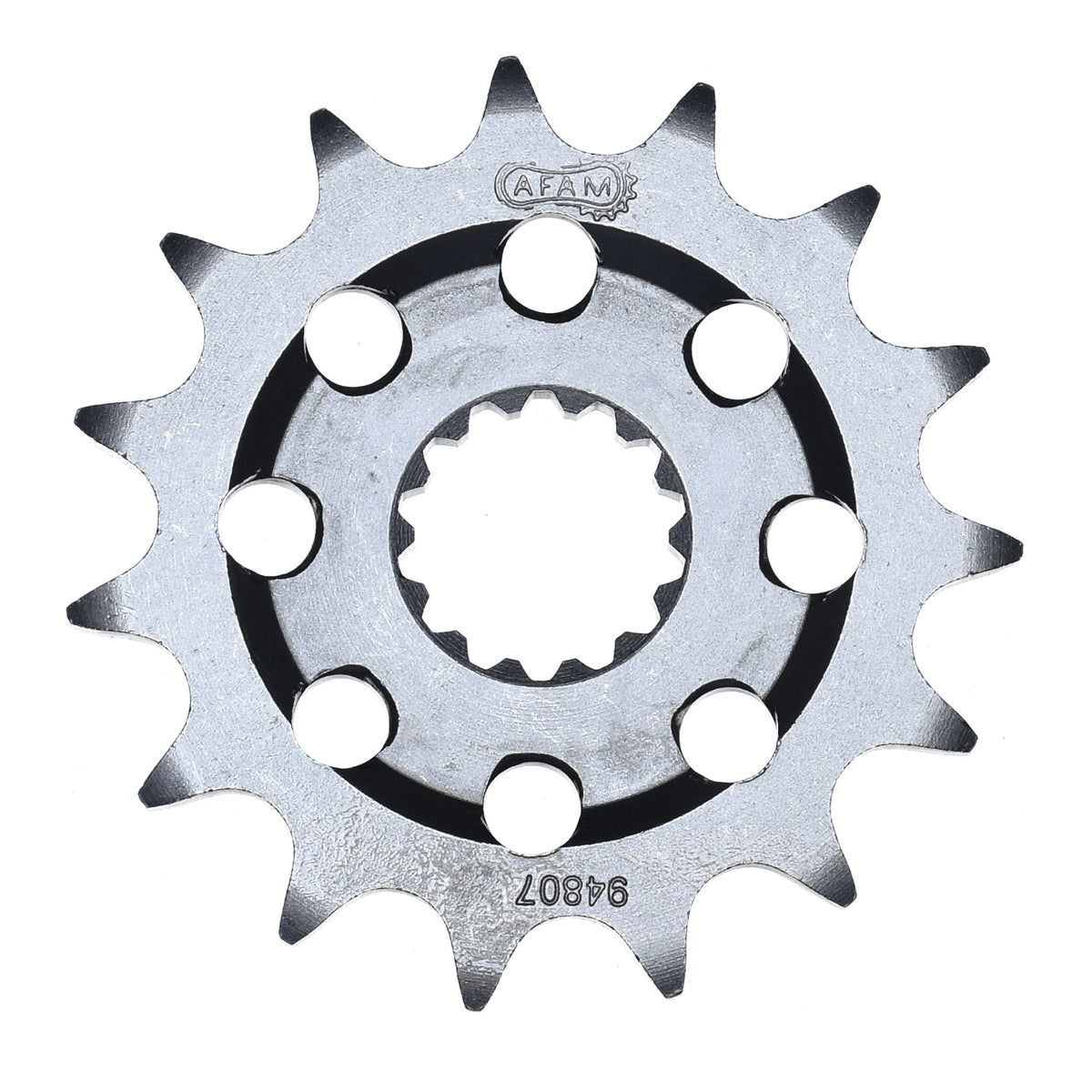

• Front sprocket: AFAM front sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15
• Chain: AFAM chain 525 XSR2-G Xs-Ring 110 with rivet link - a525xsr2.g.110

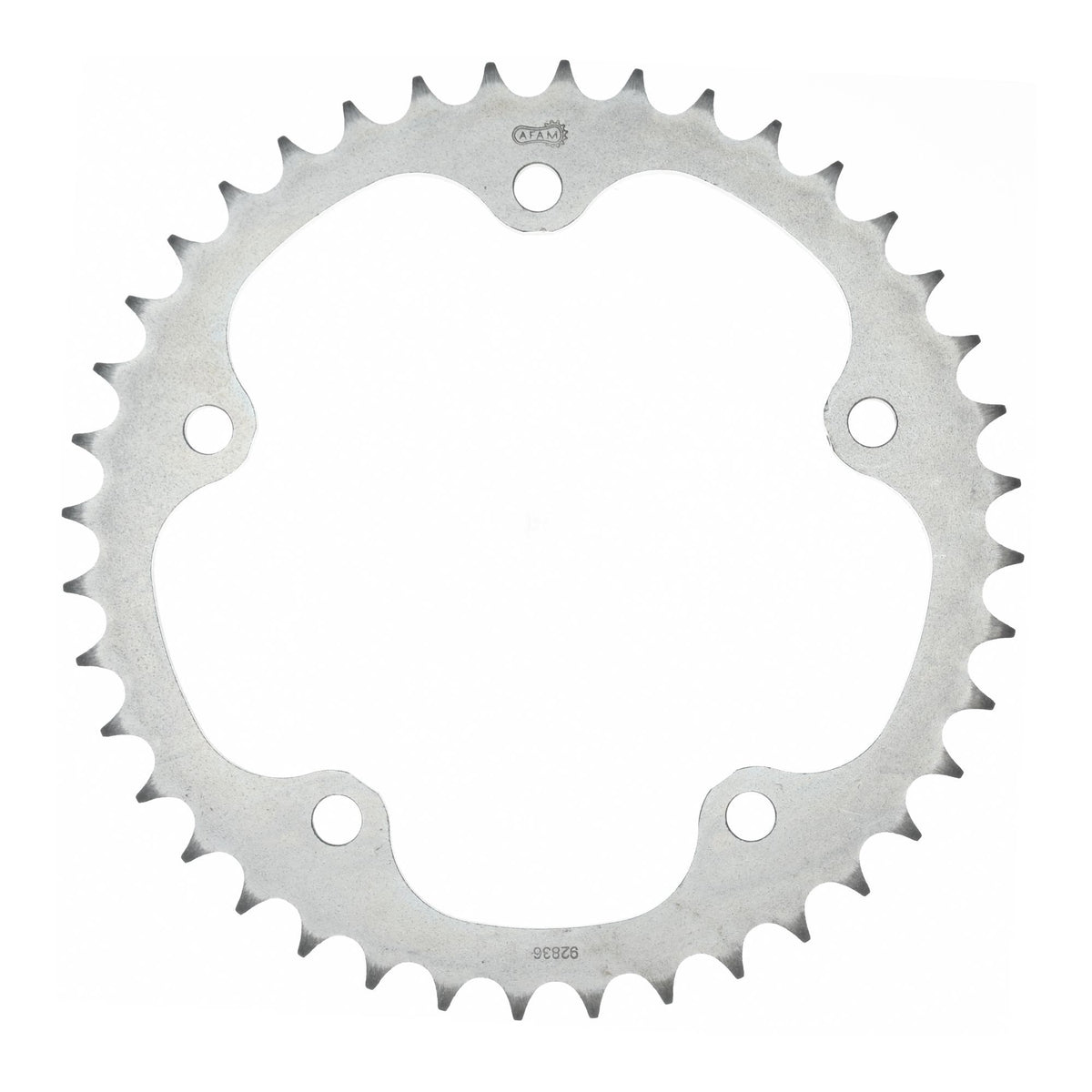

• Rear sprocket: AFAM steel sprocket #525 41 teeth - a92836.41
• Transmission ratio front sprocket-chain-rear sprocket: 15-110-41

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-45232

Suitable for

MV Agusta 751 - 1000 cc Brutale 990 R 2010
MV Agusta 751 - 1000 cc Brutale 990 R 2011
