AFAM chain kit for MV Agusta Dragster 800 Rosso ABS 2020 525 XHR3G chain kit

AFAM chain kit for MV Agusta Dragster 800 Rosso ABS 2020 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit MV Agusta Dragster 800 Rosso ABS 2020-2020

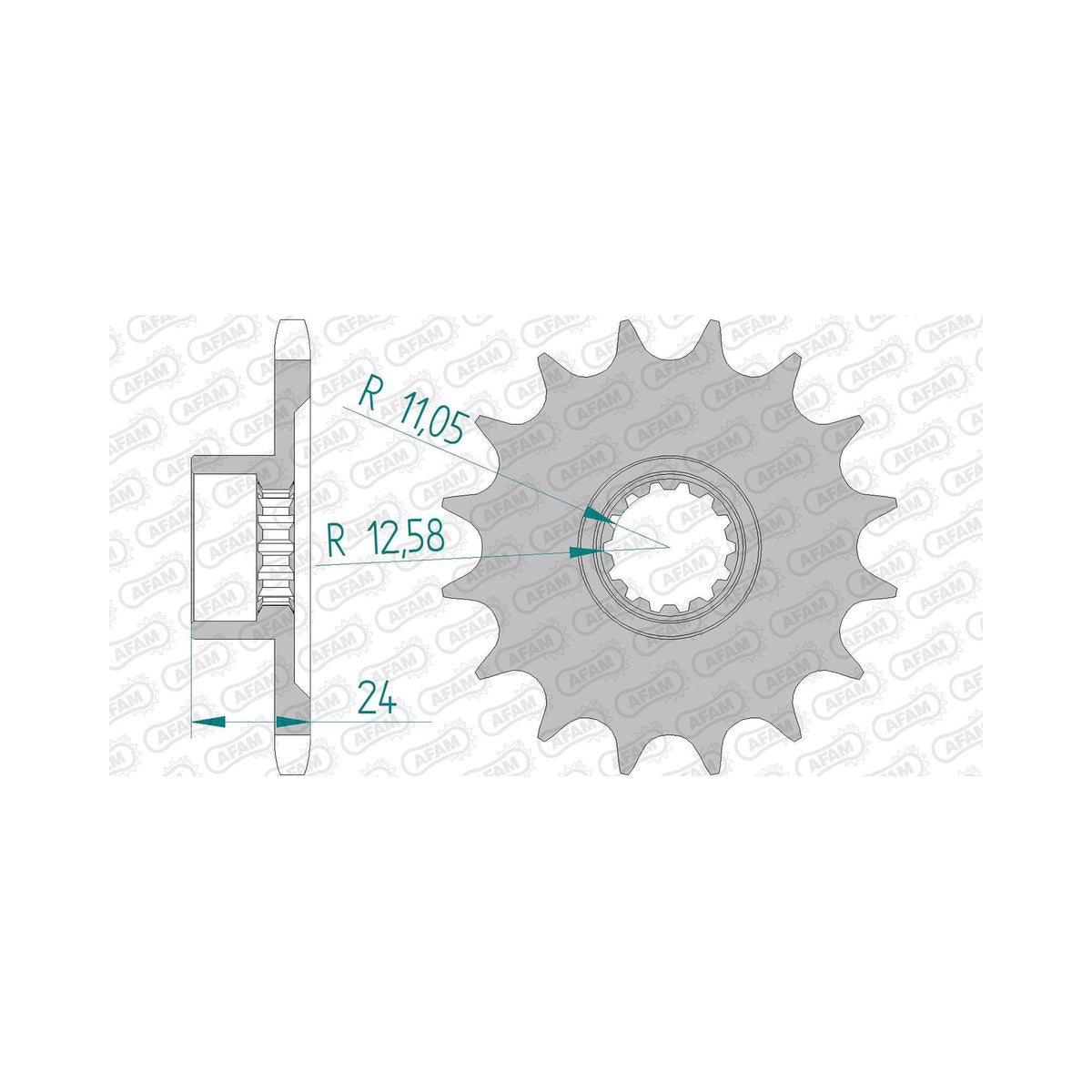

• Front sprocket: AFAM front sprocket #525 16 teeth - a94605.16
• Chain: AFAM chain 525 XHR3-G Xs-Ring 114 with rivet link - a525xhr3.g.114

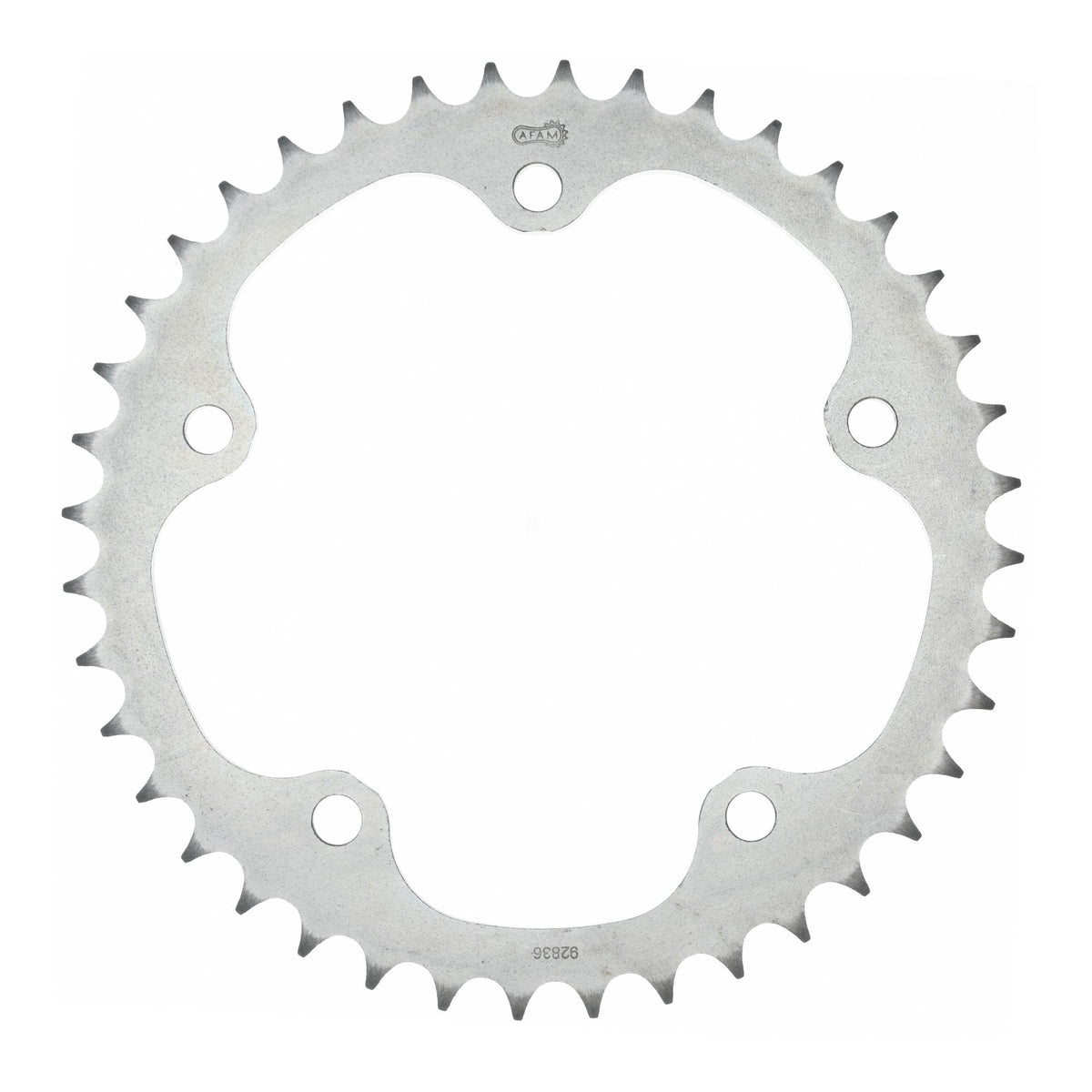

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a92836.41
• Gear ratio front sprocket-chain-rear sprocket: 16-114-41

AFAM 525 XHR3-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-45012

Suitable for

MV Agusta 751 - 1000 cc Dragster 800 Rosso ABS 2020
