AFAM chain kit for MV Agusta F4 750 S 1+1 Evo3 2003 520 XSRG chain kit

AFAM Chain kit for MV Agusta F4 750 S 1+1 Evo3 2003 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit MV Agusta F4 750 S 1+1 Evo3 F4 2003-2003

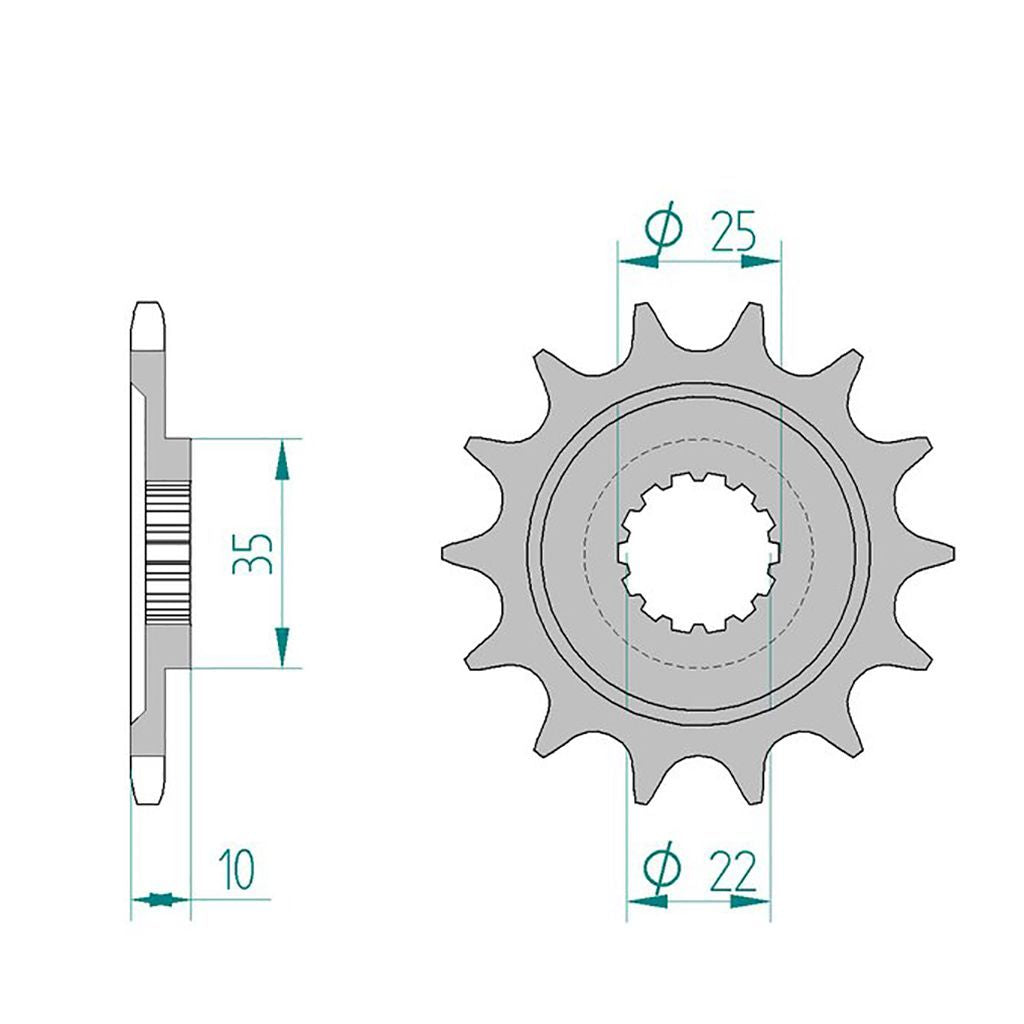

• Front sprocket: AFAM front sprocket #520 15 teeth - a94604.15
• Chain: AFAM chain 520 XSR-G Xs-ring 108 w. rivet master link - a520xsr.g.108

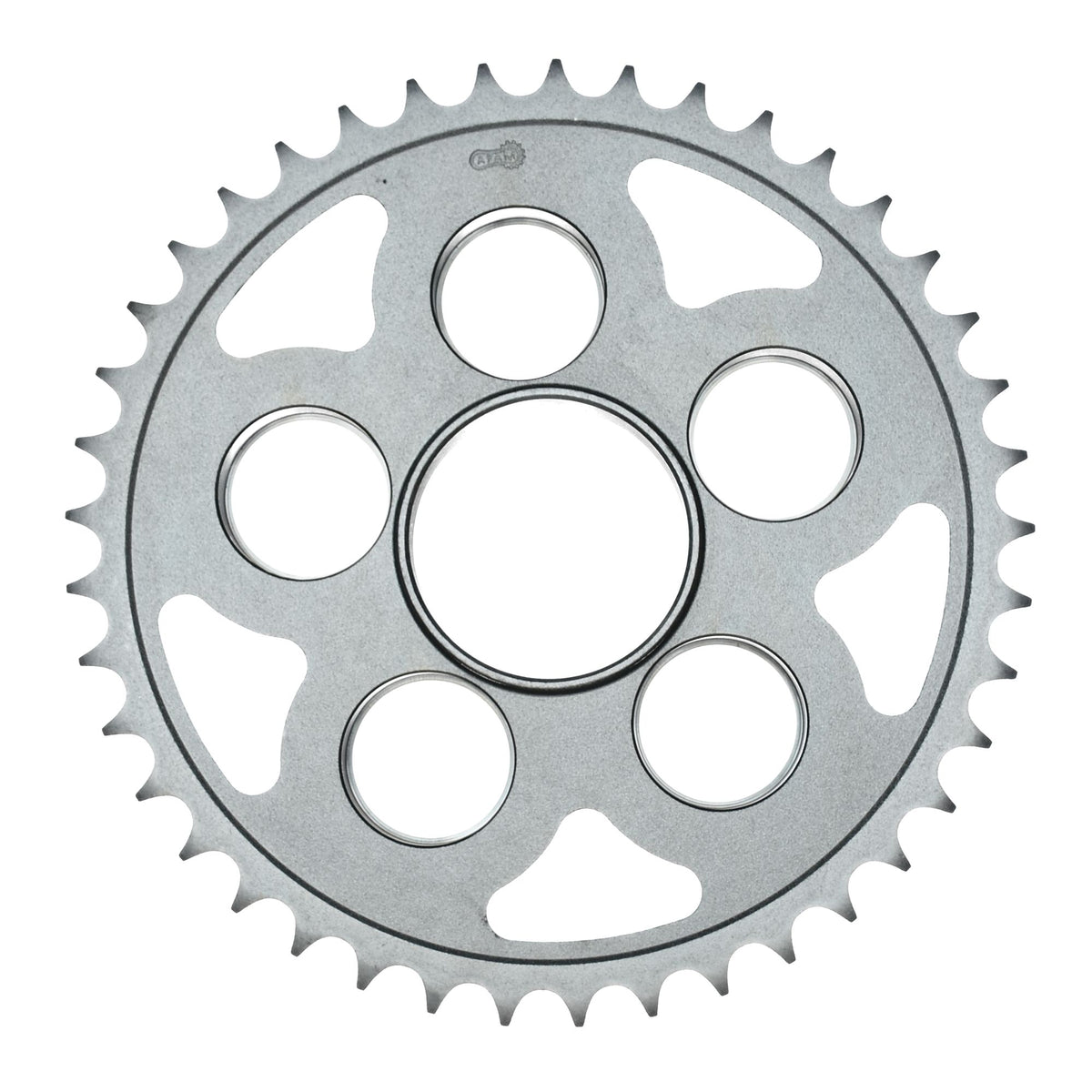

• Rear sprocket: AFAM STEEL rear sprocket #520 for MV 41 teeth - a92667.41
• Gear ratio front sprocket-chain-rear sprocket: 15-108-41

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-44993

Suitable for

MV Agusta 501 - 750 cc F4 750 S 1+1 Evo3 F4 2003
