AFAM chain kit for MV Agusta F4 750 Senna 01-02 520 XSRG chain kit

AFAM chain kit for MV Agusta F4 750 Senna 01-02 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit MV Agusta F4 750 Senna F4 2001-2002

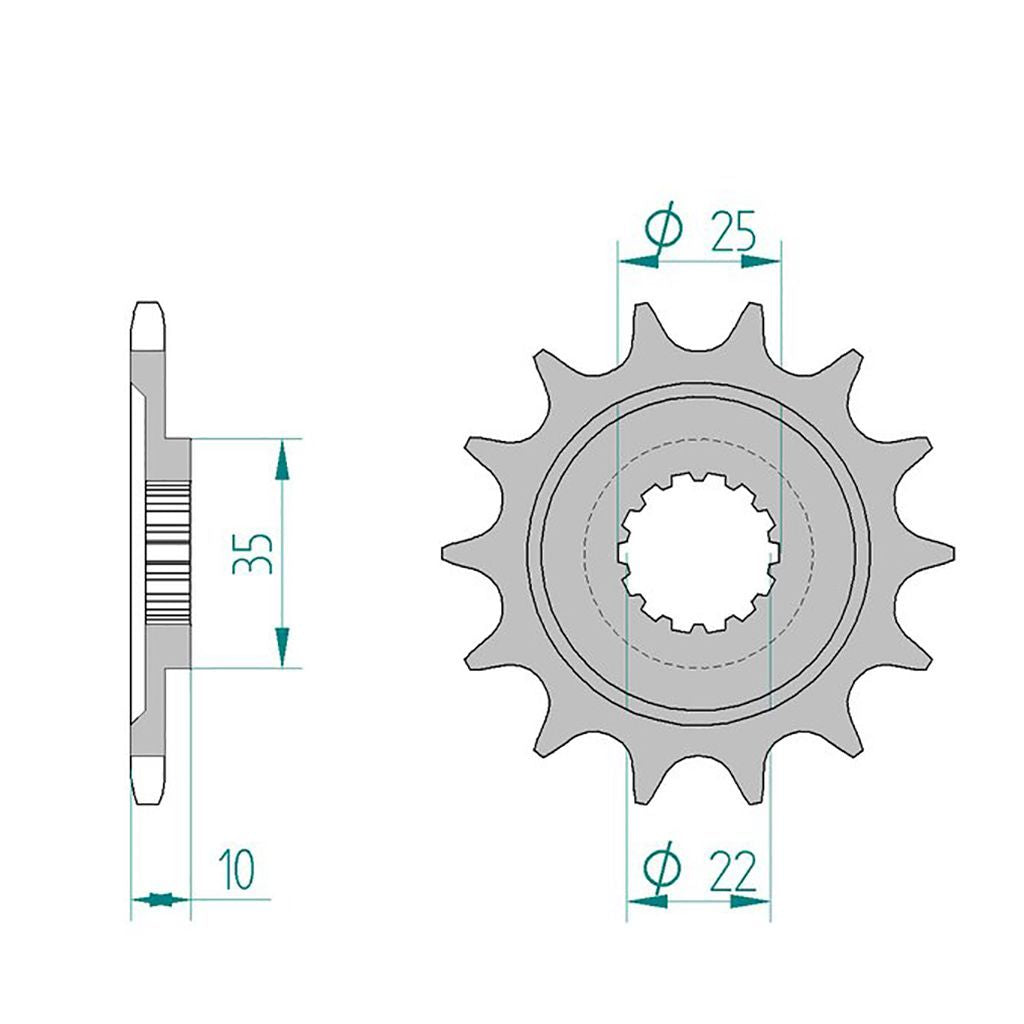

• Sprocket: AFAM sprocket #520 15 teeth - a94604.15
• Chain: AFAM chain 520 XSR-G Xs-ring 108 w. rivet link - a520xsr.g.108

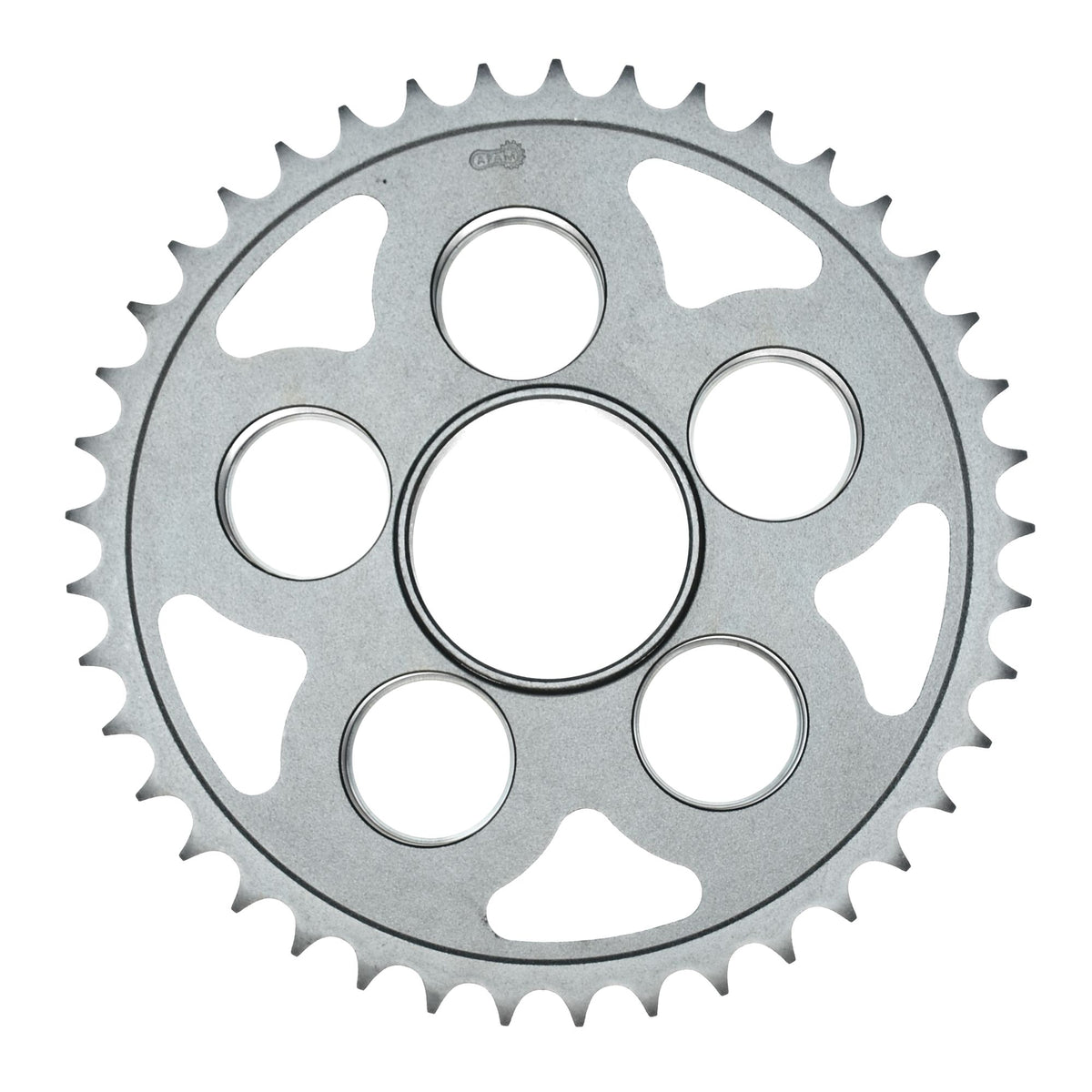

• Rear sprocket: AFAM STEEL rear sprocket #520 for MV 41 teeth - a92667.41
• Gear ratio sprocket-chain-rear sprocket: 15-108-41

AFAM 520 XSR-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport, and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-40161

Fits

MV Agusta 501 - 750 cc F4 750 Senna F4 2001
MV Agusta 501 - 750 cc F4 750 Senna F4 2002
