AFAM chain kit for MV Agusta F4 750 SPR 03-04 520 XHR2G chain kit

AFAM Chain Kit for MV Agusta F4 750 SPR 03-04 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit MV Agusta F4 750 SPR F4 2003-2004

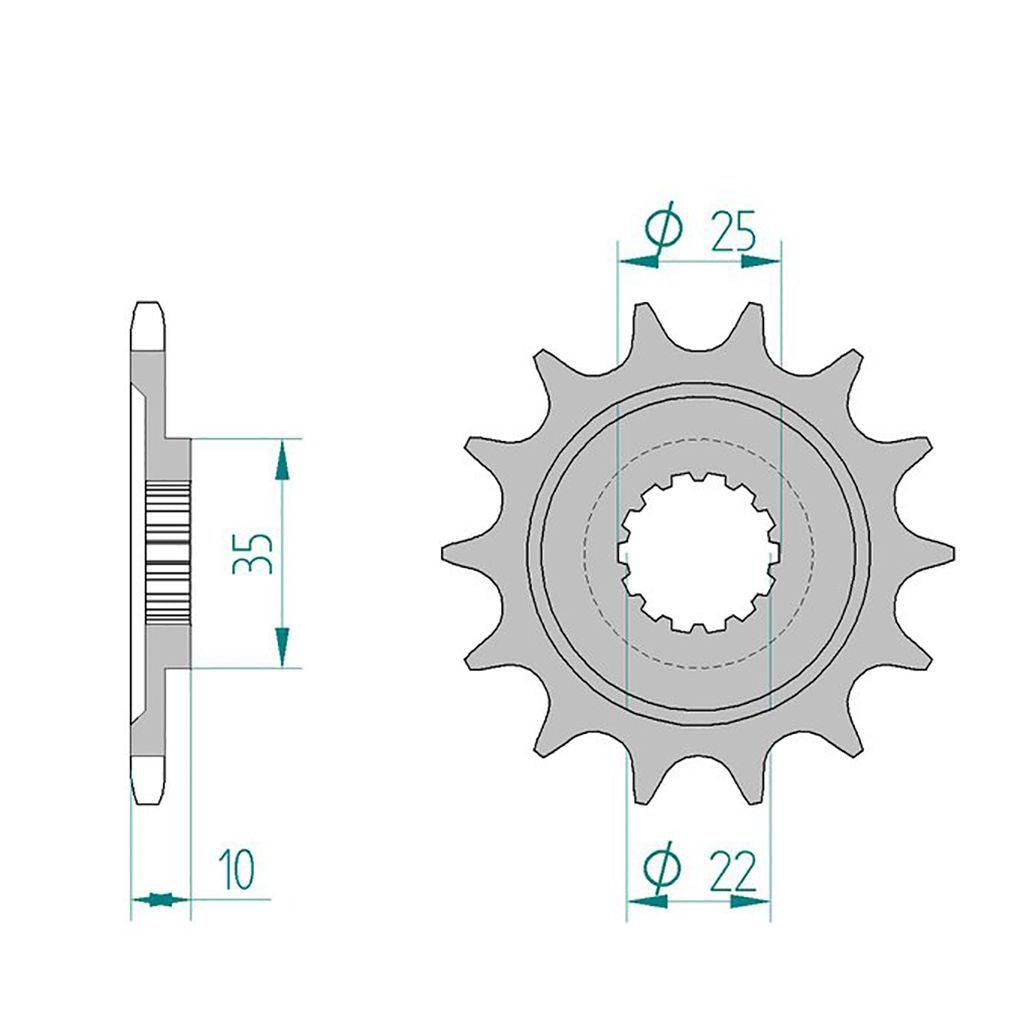

• Front sprocket: AFAM front sprocket #520 15 teeth - a94604.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 108 w. rivet link - a520xhr2.g.108

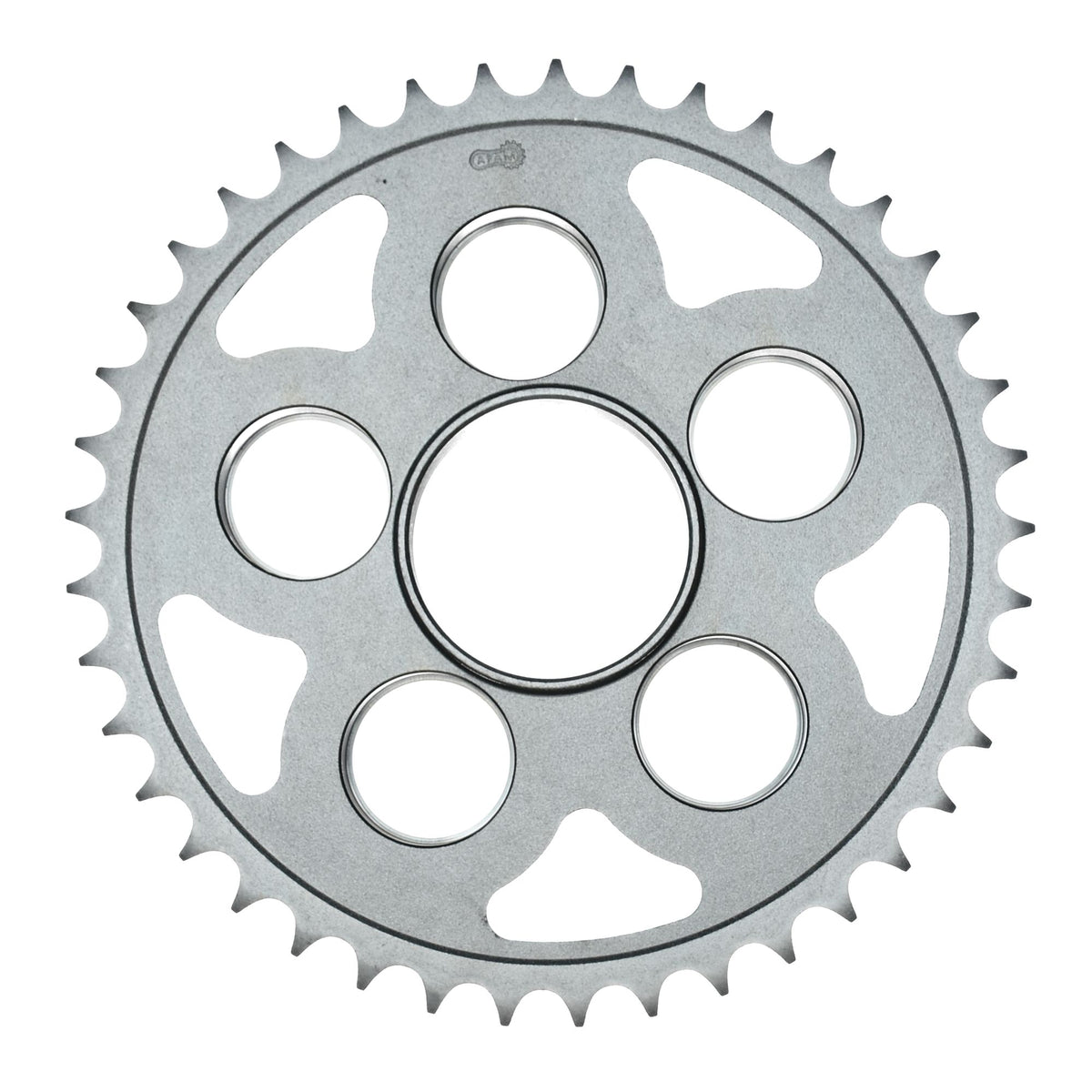

• Rear sprocket: AFAM STEEL rear sprocket #520 for MV 41 teeth - a92667.41
• Gear ratio front sprocket-chain-rear sprocket: 15-108-41

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Brand names are used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-47288

Suitable for

MV Agusta 501 - 750 ccm F4 750 SPR F4 2003
MV Agusta 501 - 750 ccm F4 750 SPR F4 2004
