AFAM chain kit for MV Agusta Rivale 800 ABS 14-16 525 XHR3G chain kit

AFAM Chain Kit for MV Agusta Rivale 800 ABS 14-16 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the MV Agusta Rivale 800 ABS S3 2014-2016 chain kit

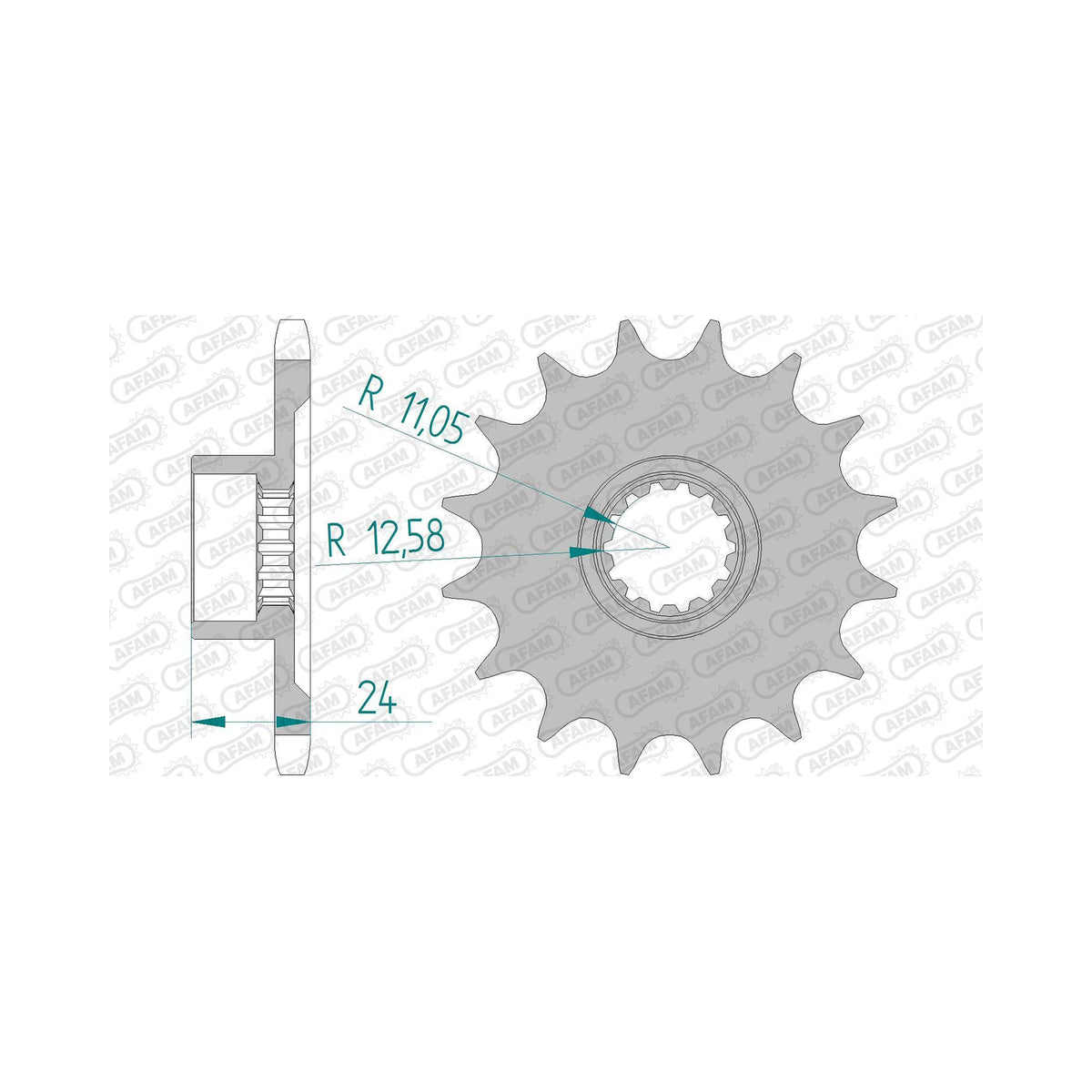

• Front sprocket: AFAM front sprocket #525 16 teeth - a94605.16
• Chain: AFAM chain 525 XHR3-G Xs-Ring 114 with rivet master link - a525xhr3.g.114

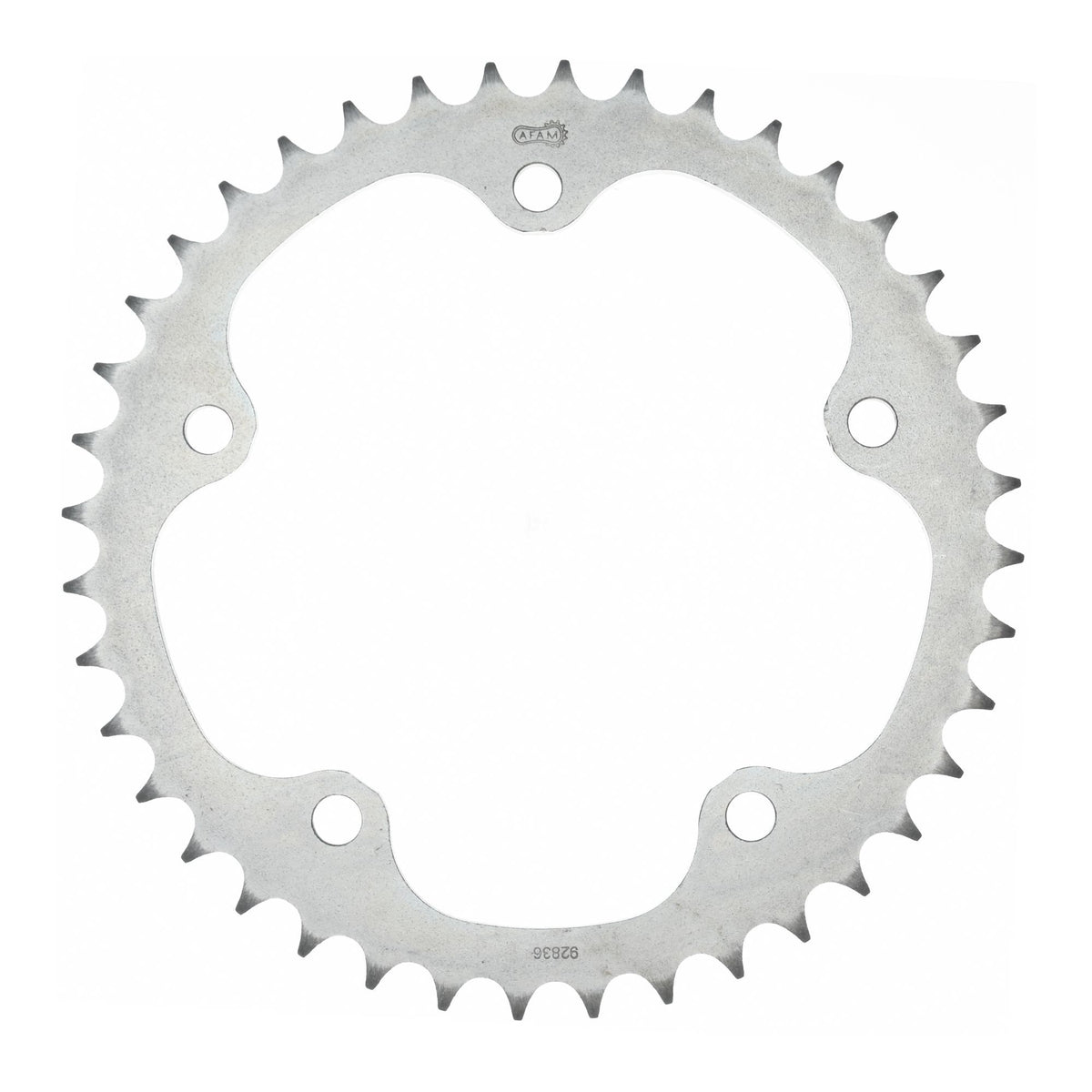

• Rear sprocket: AFAM STEEL rear sprocket #525 41 teeth - a92836.41
• Gear ratio front sprocket-chain-rear sprocket: 16-114-41

AFAM 525 XHR3-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by engine displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-45202

Suitable for

MV Agusta 751 - 1000 cc Rivale 800 ABS S3 2014
MV Agusta 751 - 1000 cc Rivale 800 ABS S3 2015
MV Agusta 751 - 1000 cc Rivale 800 ABS S3 2016
