AFAM chain kit for MZ Baghira 660 Street Moto 00-06 520 XMR3 chain kit

AFAM Chain kit for MZ Baghira 660 Street Moto 00-06 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit MZ Baghira 660 Street Moto 2000-2006

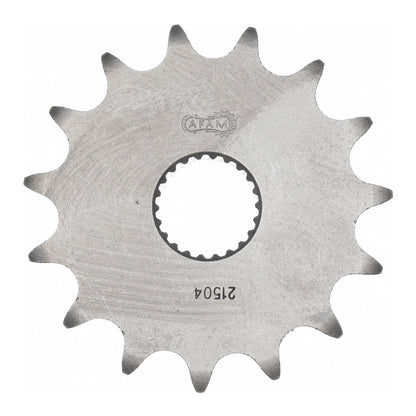

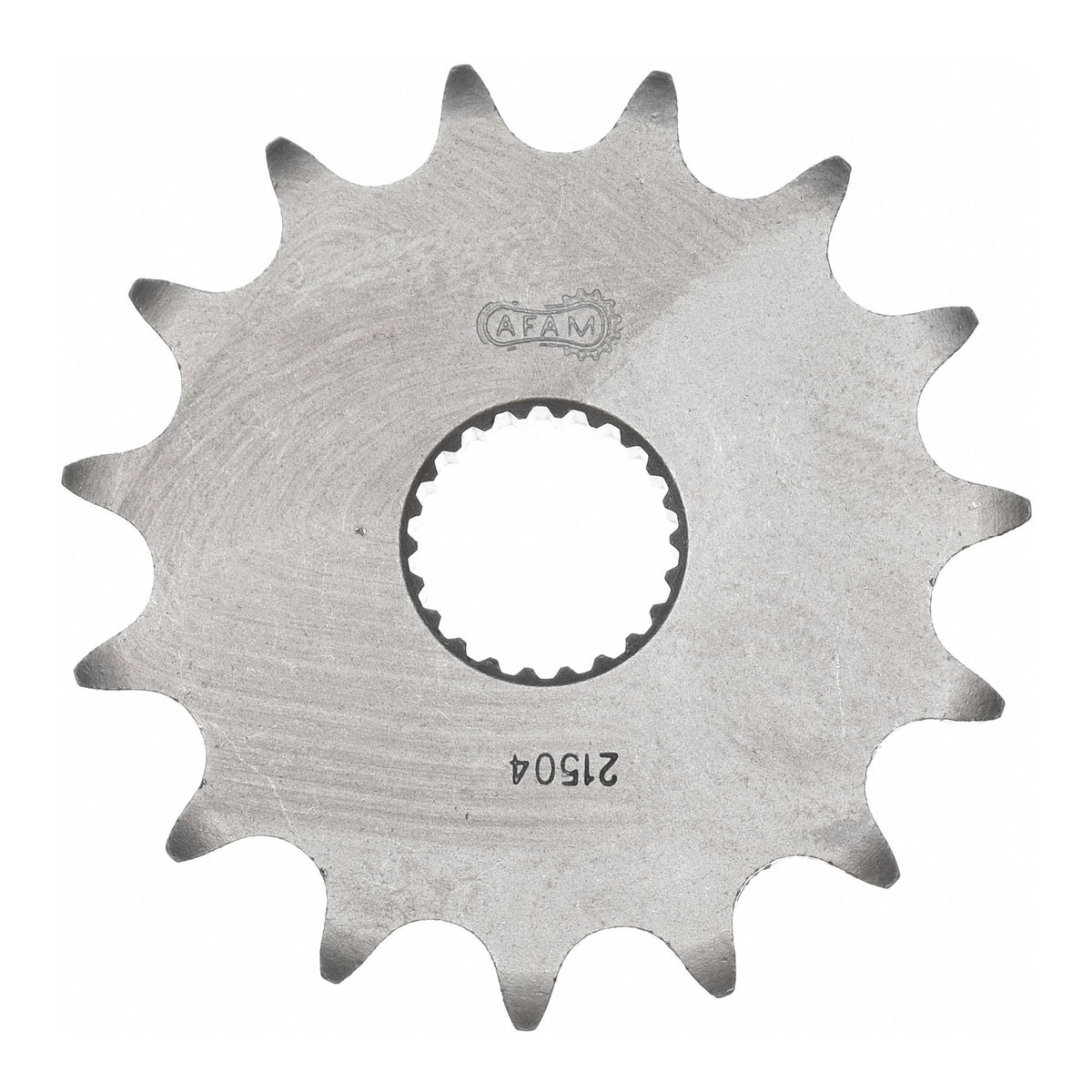

• Front sprocket: AFAM front sprocket #520 15 teeth - a21504.15
• Chain: AFAM chain 520 XMR3 Xs-ring 114 w. rivet link - a520xmr3.114

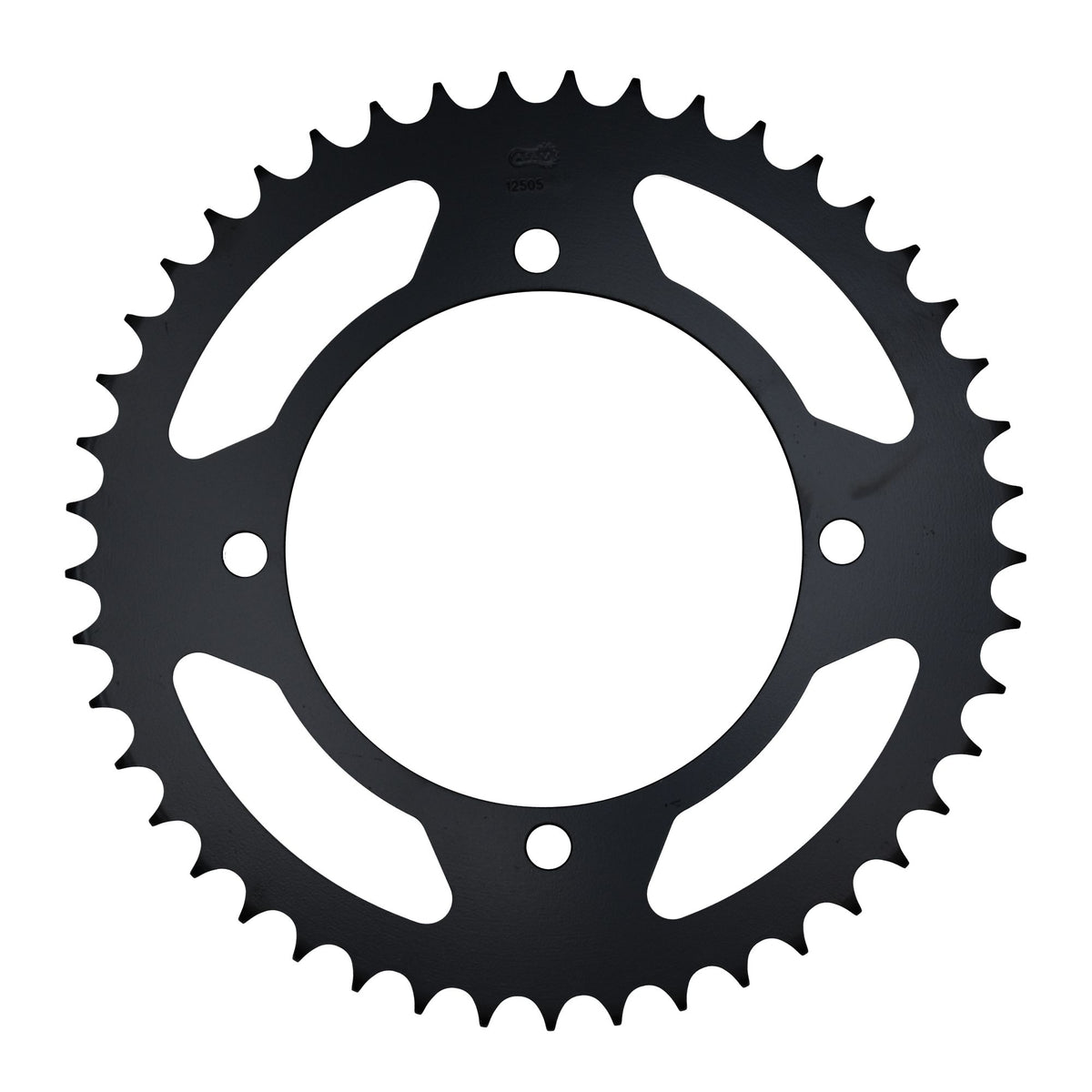

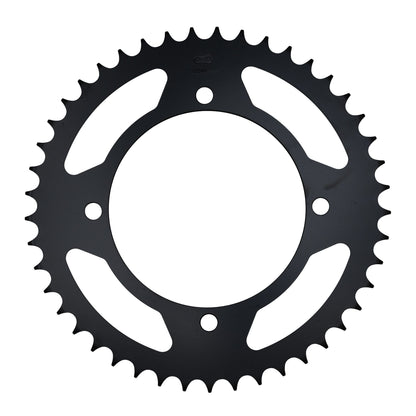

• Rear sprocket: Esjot rear sprocket STEEL #520 43 teeth - a12505.43
• Gear ratio front sprocket-chain-rear sprocket: 15-114-43

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-47381

Fits for

MZ 501 - 750 cc Baghira 660 Street Moto 2000
MZ 501 - 750 cc Baghira 660 Street Moto 2001
MZ 501 - 750 cc Baghira 660 Street Moto 2002
MZ 501 - 750 cc Baghira 660 Street Moto 2003
MZ 501 - 750 cc Baghira 660 Street Moto 2004
MZ 501 - 750 cc Baghira 660 Street Moto 2005
MZ 501 - 750 cc Baghira 660 Street Moto 2006
