AFAM chain kit for MZ SX 125 05-07 428 R1G chain kit

AFAM chain kit for MZ SX 125 05-07 428 R1G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit MZ SX 125 2005-2007

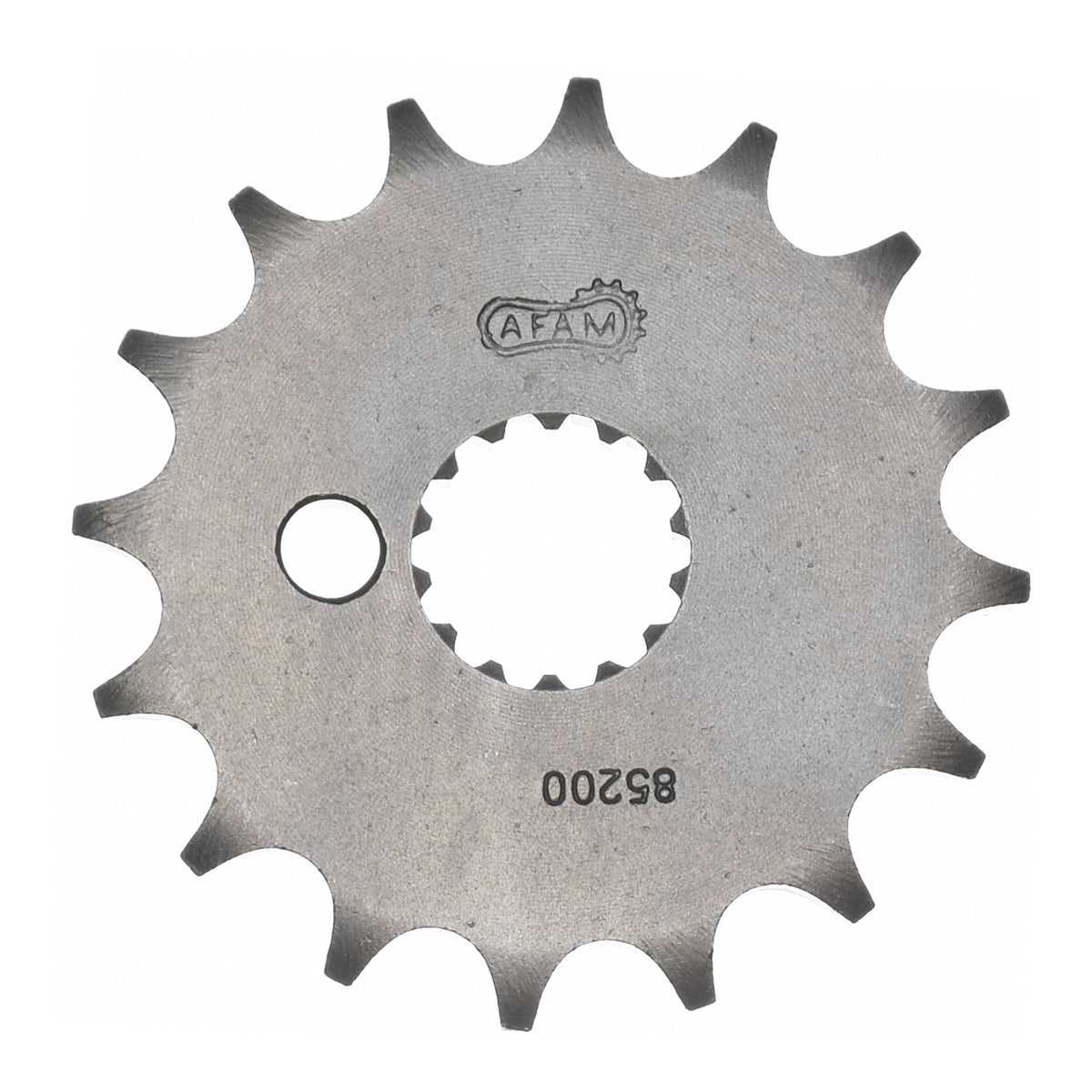

• Sprocket: AFAM sprocket #428 with 7mm bore 16 teeth - a85200.16
• Chain: AFAM chain 428 R1-G reinforced 132 with clip-type connecting link - a428r1.g.132

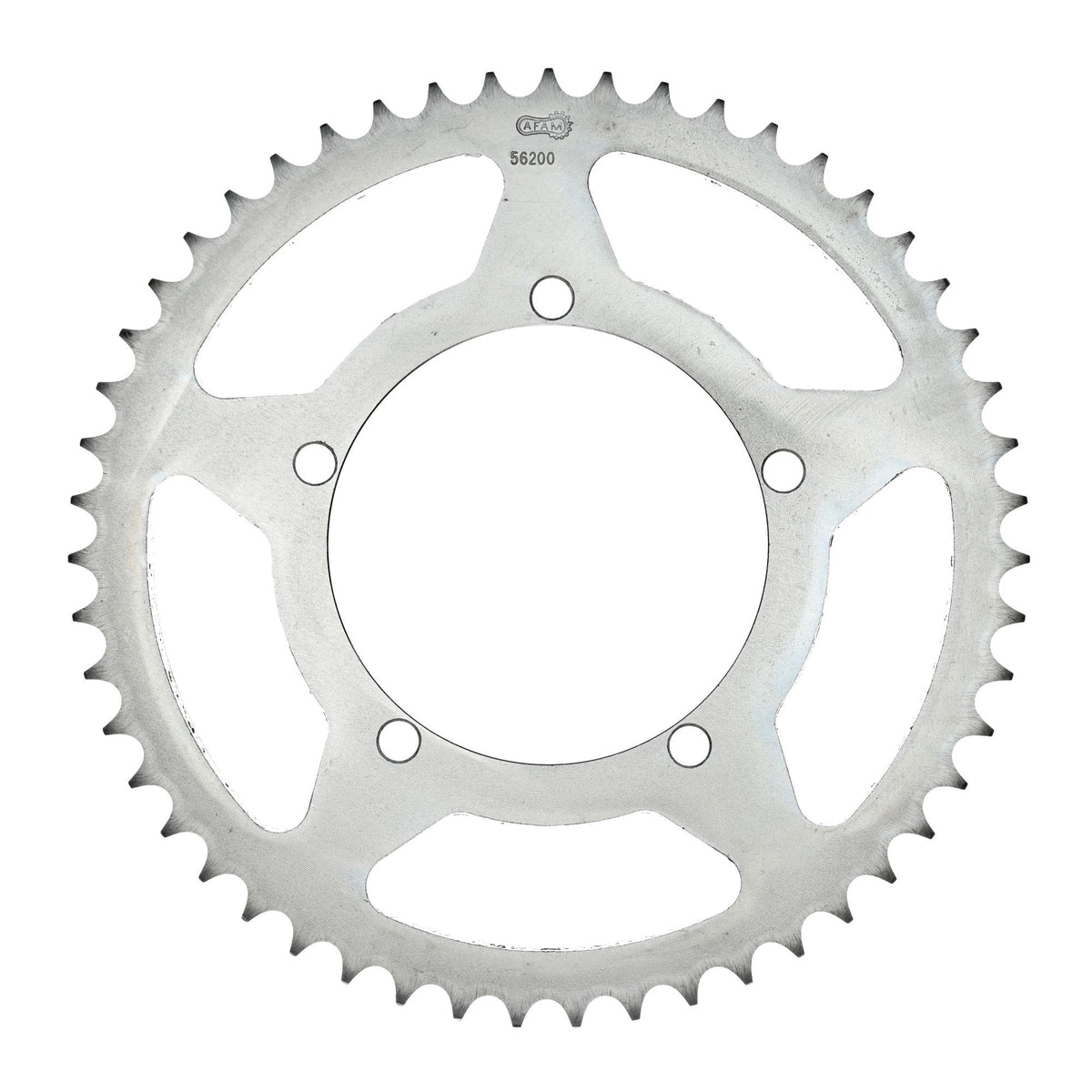

• Rear sprocket: AFAM rear sprocket STEEL #428 51 teeth - a56200.51
• Gear ratio sprocket-chain-rear sprocket: 16-132-51

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-41930

Suitable for

MZ 101 - 125 cc SX 125 2005
MZ 101 - 125 cc SX 125 2006
MZ 101 - 125 cc SX 125 2007
