AFAM chain kit for Peugeot XPS 50 SM 07-09 420 M chain kit

AFAM chain kit for Peugeot XPS 50 SM 07-09 420 M chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

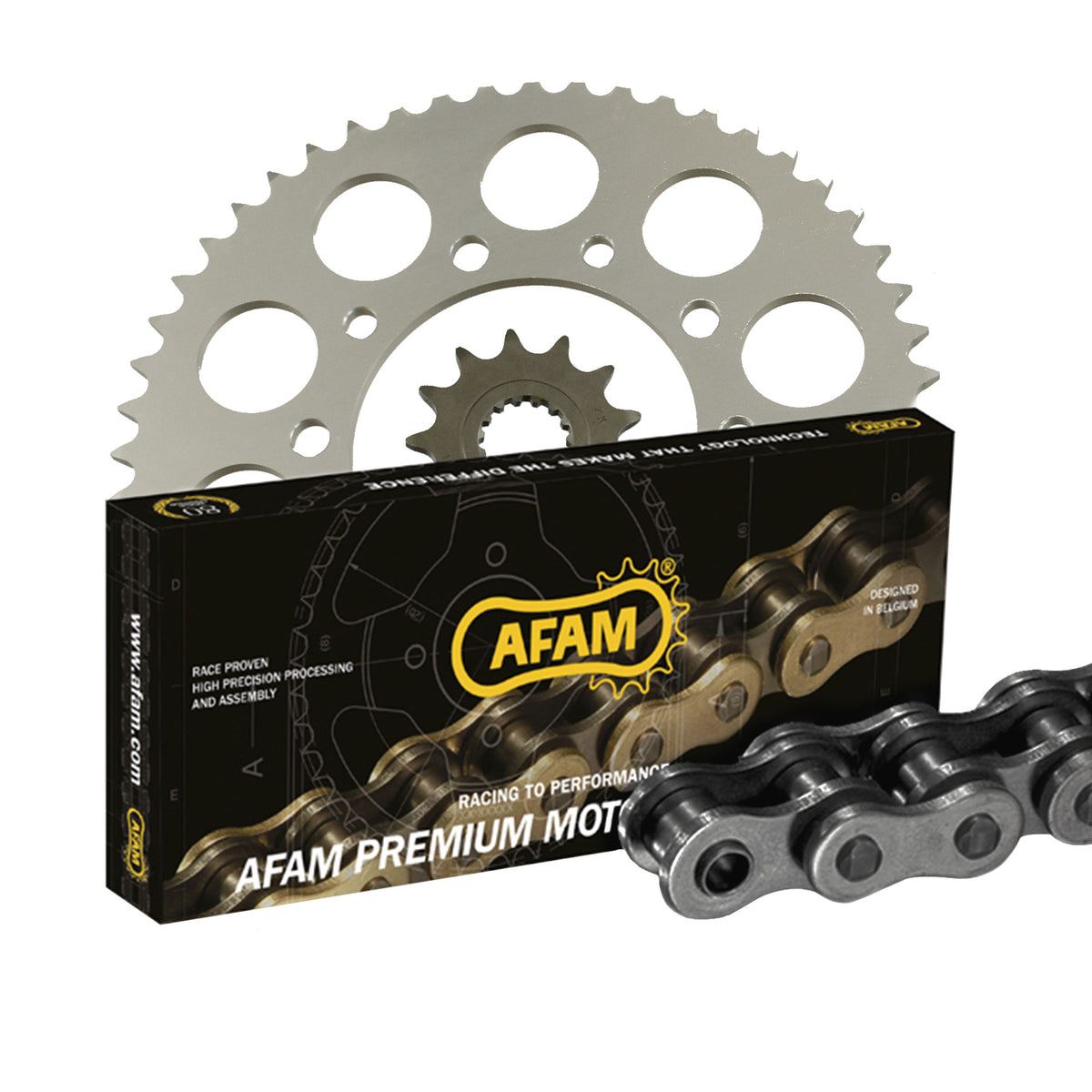

Components of the chain kit Peugeot XPS 50 SM 2007-2009

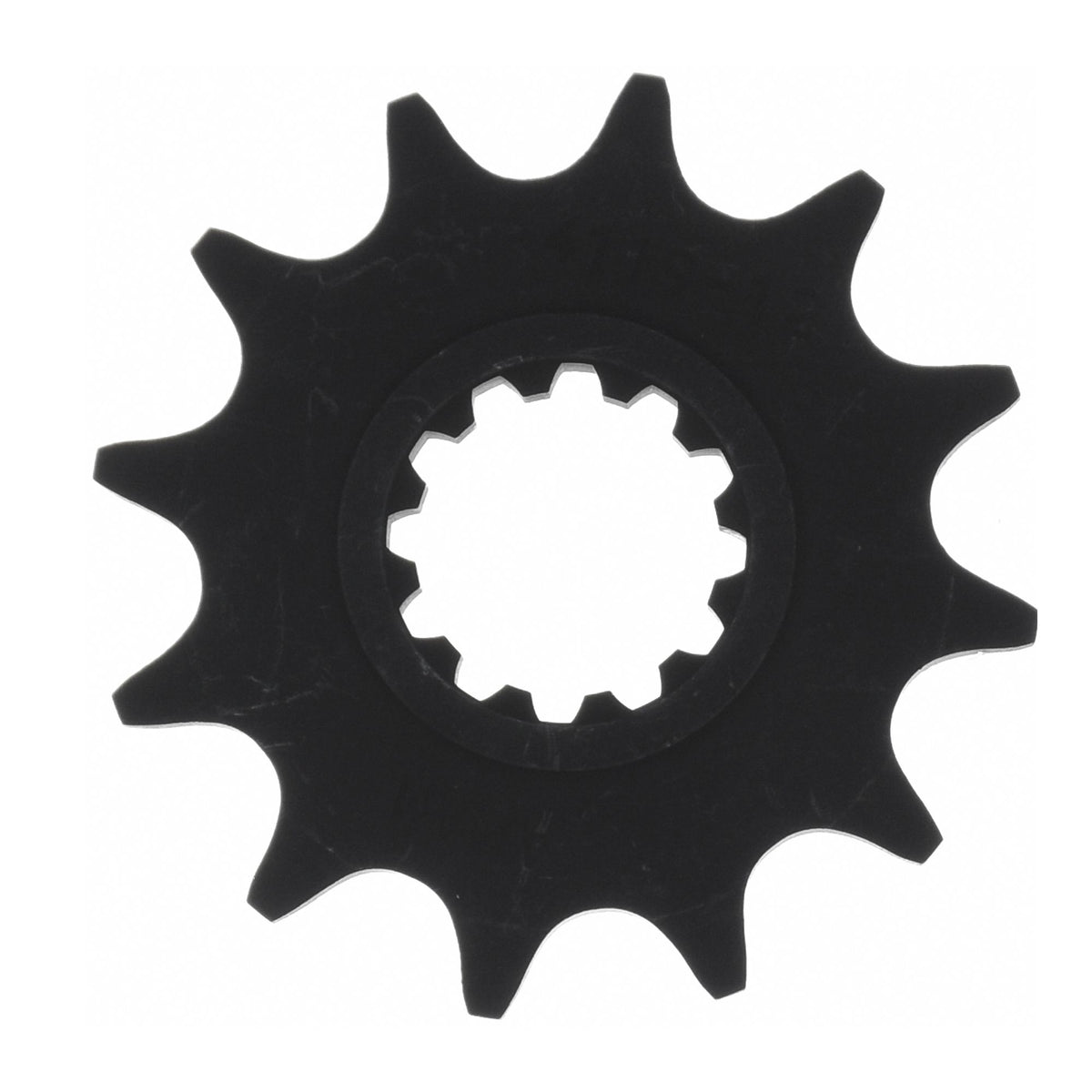

• Front sprocket: AFAM front sprocket #420 11 teeth - a94119.11

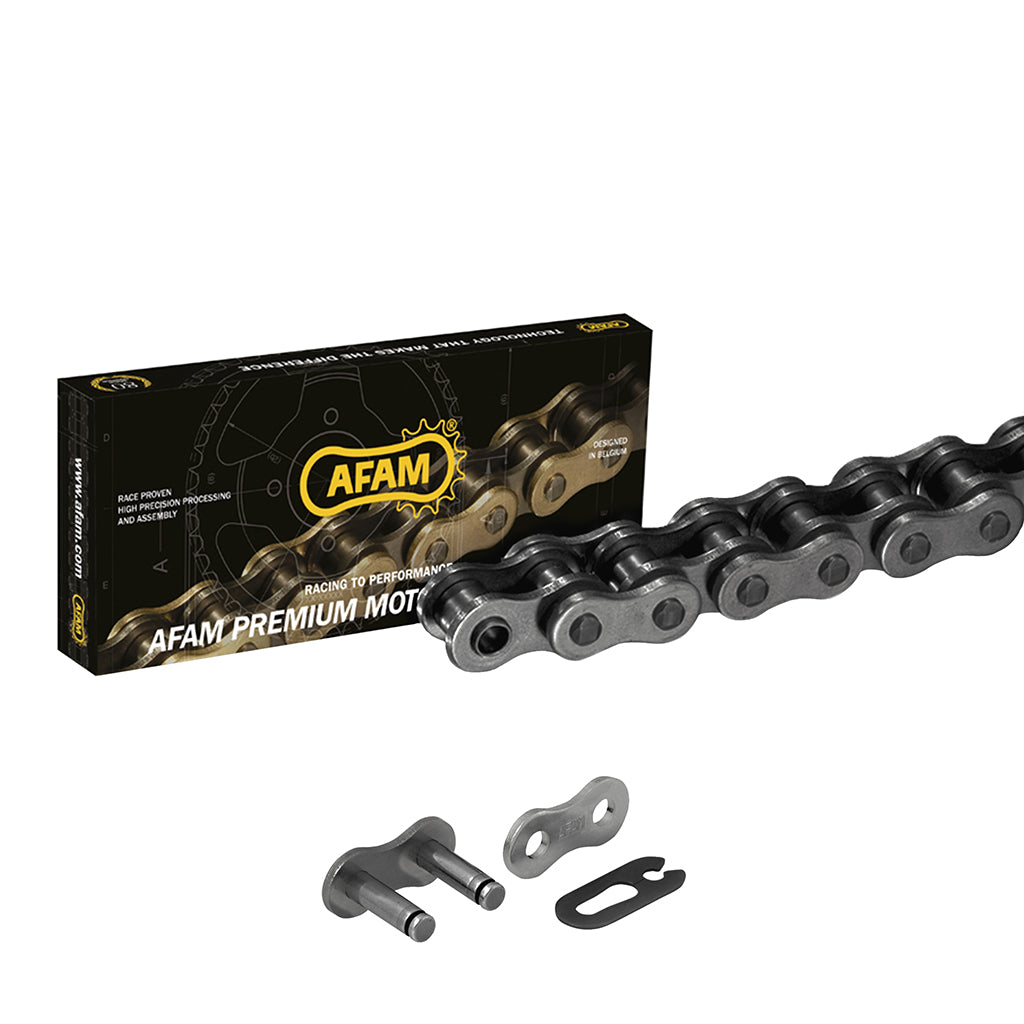

• Chain: AFAM chain 420 M 132 with clip master link - a420m.132

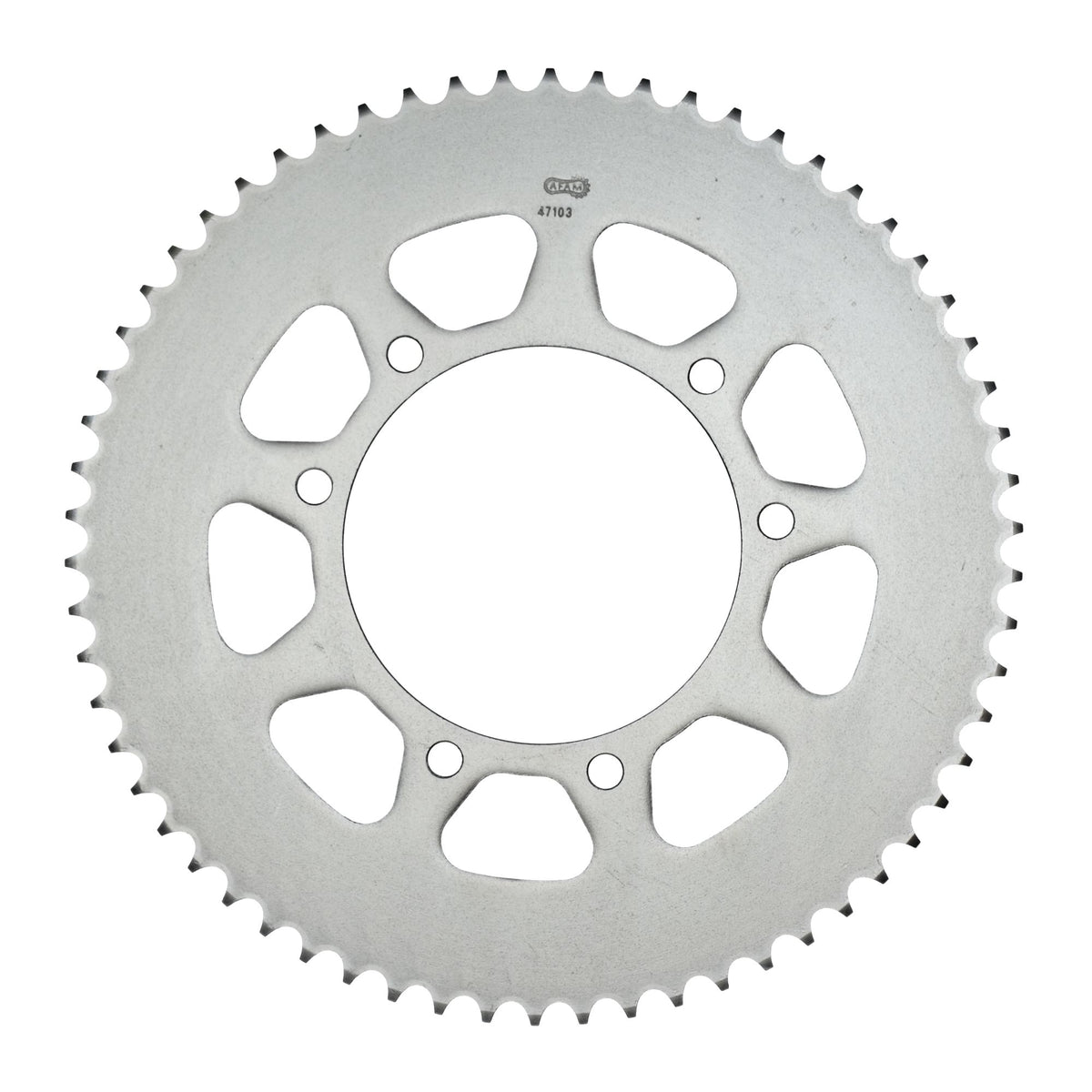

• Rear sprocket: AFAM steel rear sprocket #420 60 teeth - a47103.60
• Gear ratio front sprocket-chain-rear sprocket: 11-132-60

AFAM 420 M

Affordable and simple standard chain
Without O-rings
Color: Steel

Technical data:
Pitch: 420
Pin length: 14.40 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.5 mm
Plate thickness: outer: 1.5 mm
Tensile strength: 20.00 kN
Weight per 100 links: 0.72 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-47437

Fits

Peugeot 0 - 100 cc XPS 50 SM 2007
Peugeot 0 - 100 cc XPS 50 SM 2008
Peugeot 0 - 100 cc XPS 50 SM 2009
