AFAM chain kit for Rieju MRT 50 SM 09-12 420 R1G chain kit

AFAM Chain Kit for Rieju MRT 50 SM 09-12 420 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit Rieju MRT 50 SM 2009-2012

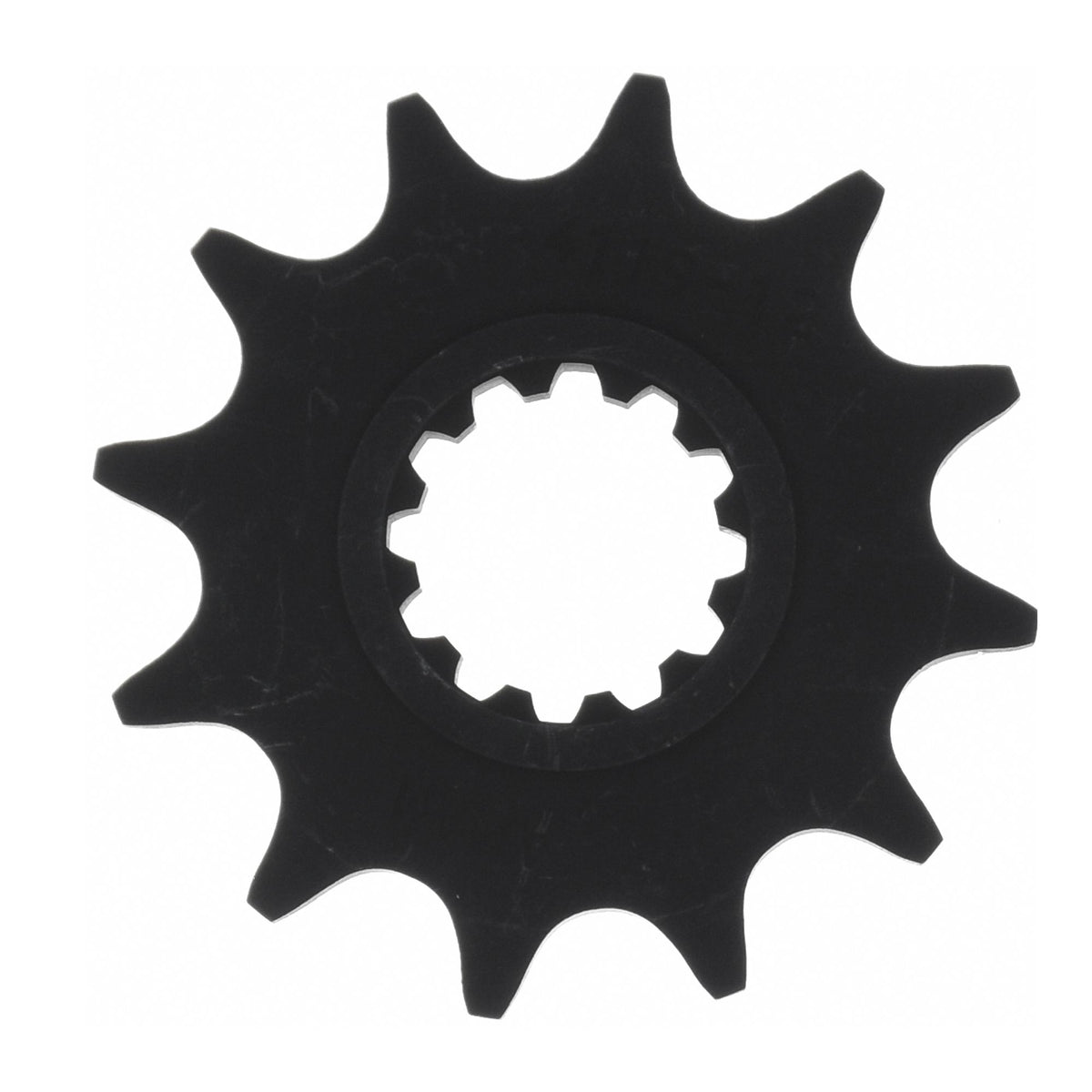

• Front sprocket: AFAM Front sprocket #420 11 teeth - a94119.11

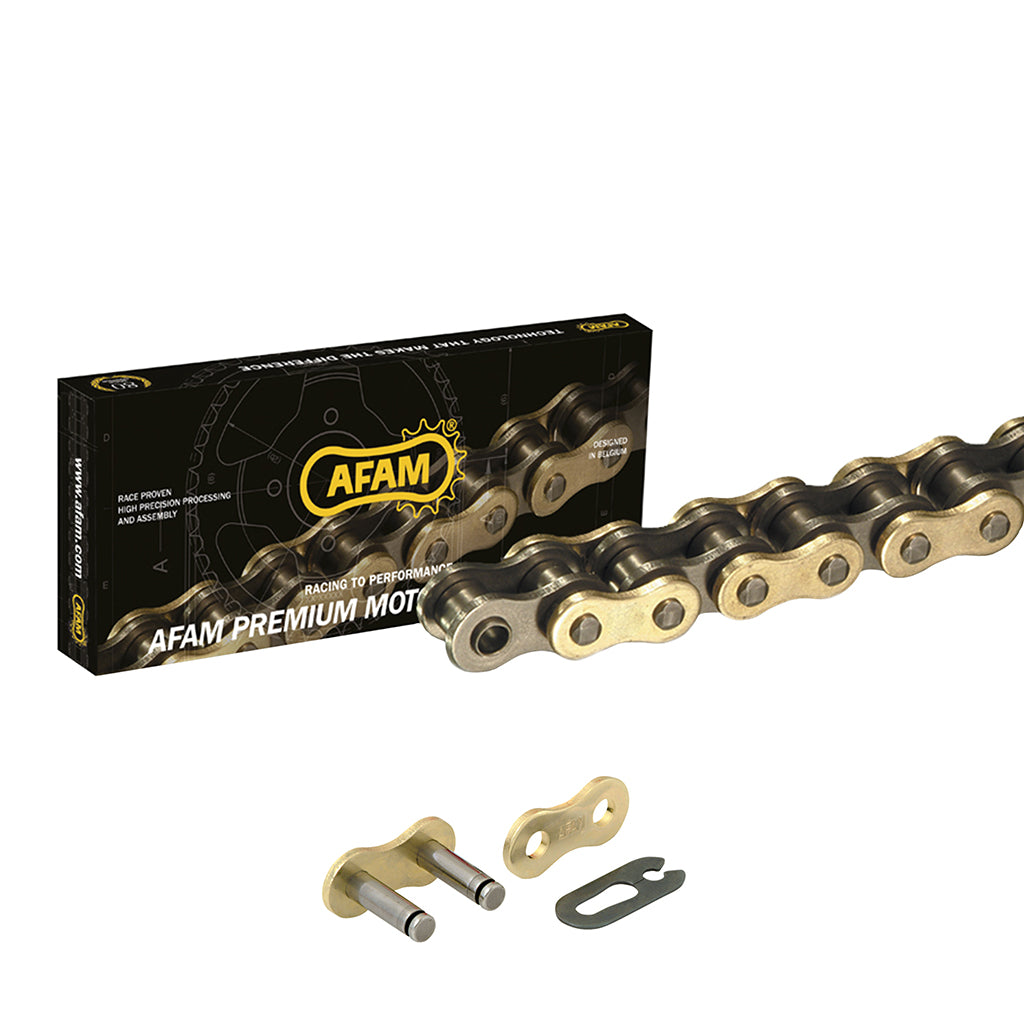

• Chain: AFAM Chain 420 R1-G Reinforced 132 with clip master link - a420r1.g.132

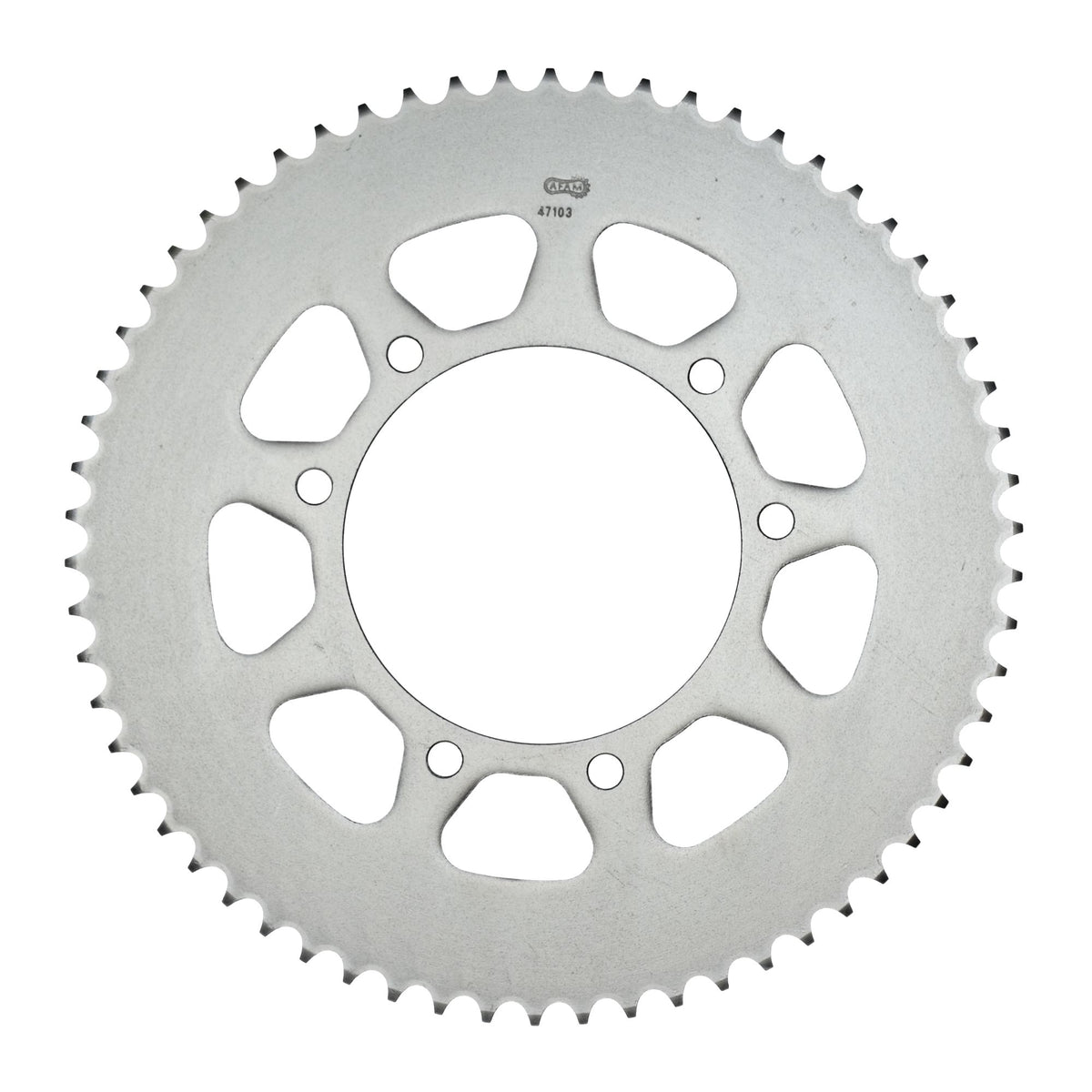

• Rear sprocket: AFAM Rear sprocket STEEL #420 52 teeth - a47103.52
• Gear ratio front sprocket-chain-rear sprocket: 11-132-52

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical specifications:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-45315

Suitable for

Rieju 0 - 100 ccm MRT 50 SM 2009
Rieju 0 - 100 ccm MRT 50 SM 2010
Rieju 0 - 100 ccm MRT 50 SM 2011
Rieju 0 - 100 ccm MRT 50 SM 2012
