AFAM chain kit for Rieju RS2 125 06-09 428 XMRG chain kit

AFAM chain kit for Rieju RS2 125 06-09 428 XMRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Rieju RS2 125 2006-2009 chain kit

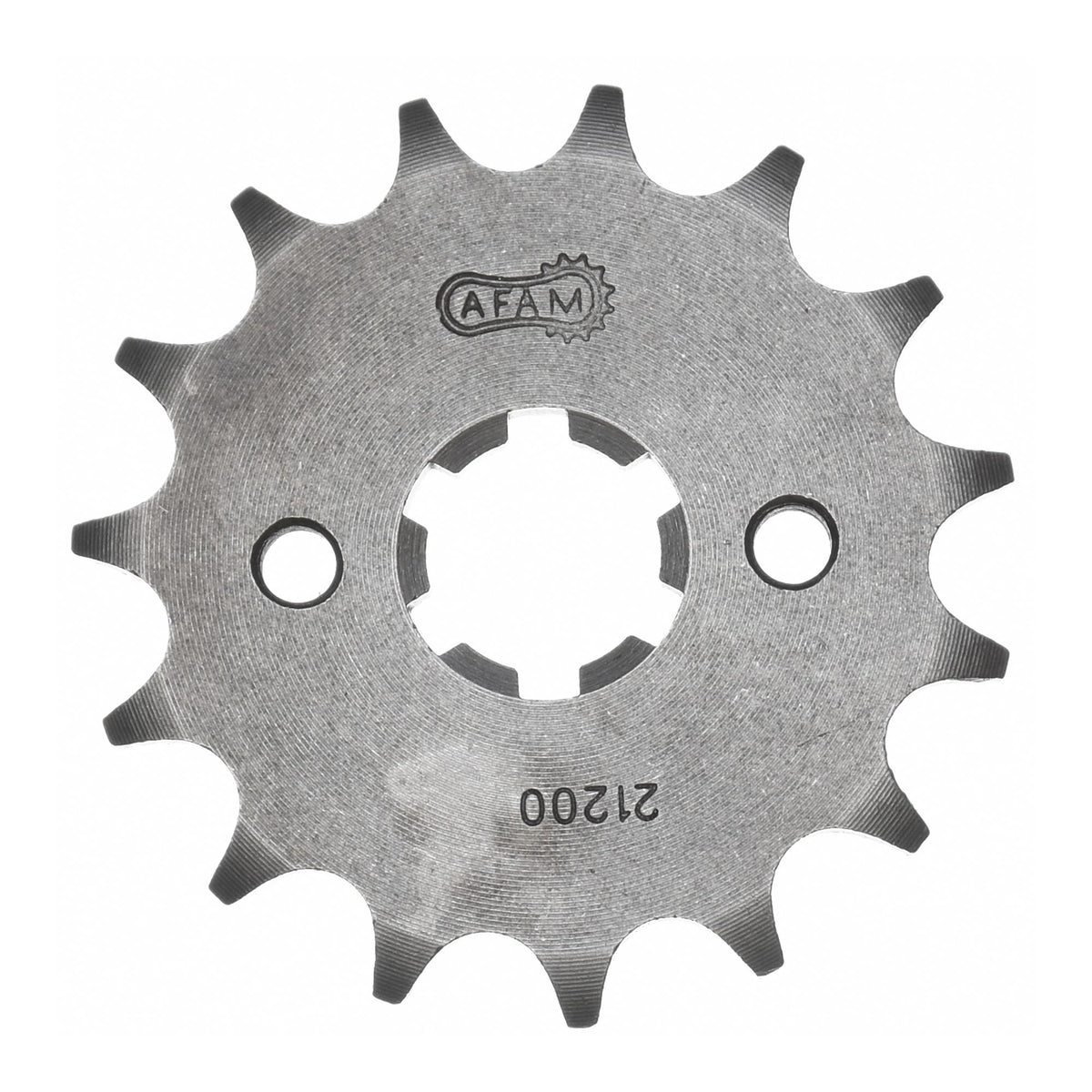

• Sprocket: AFAM sprocket #428 14 teeth - a21200.14
• Chain: AFAM chain 428 XMR-G Xs-ring 126 with clip link - a428xmr.g.126

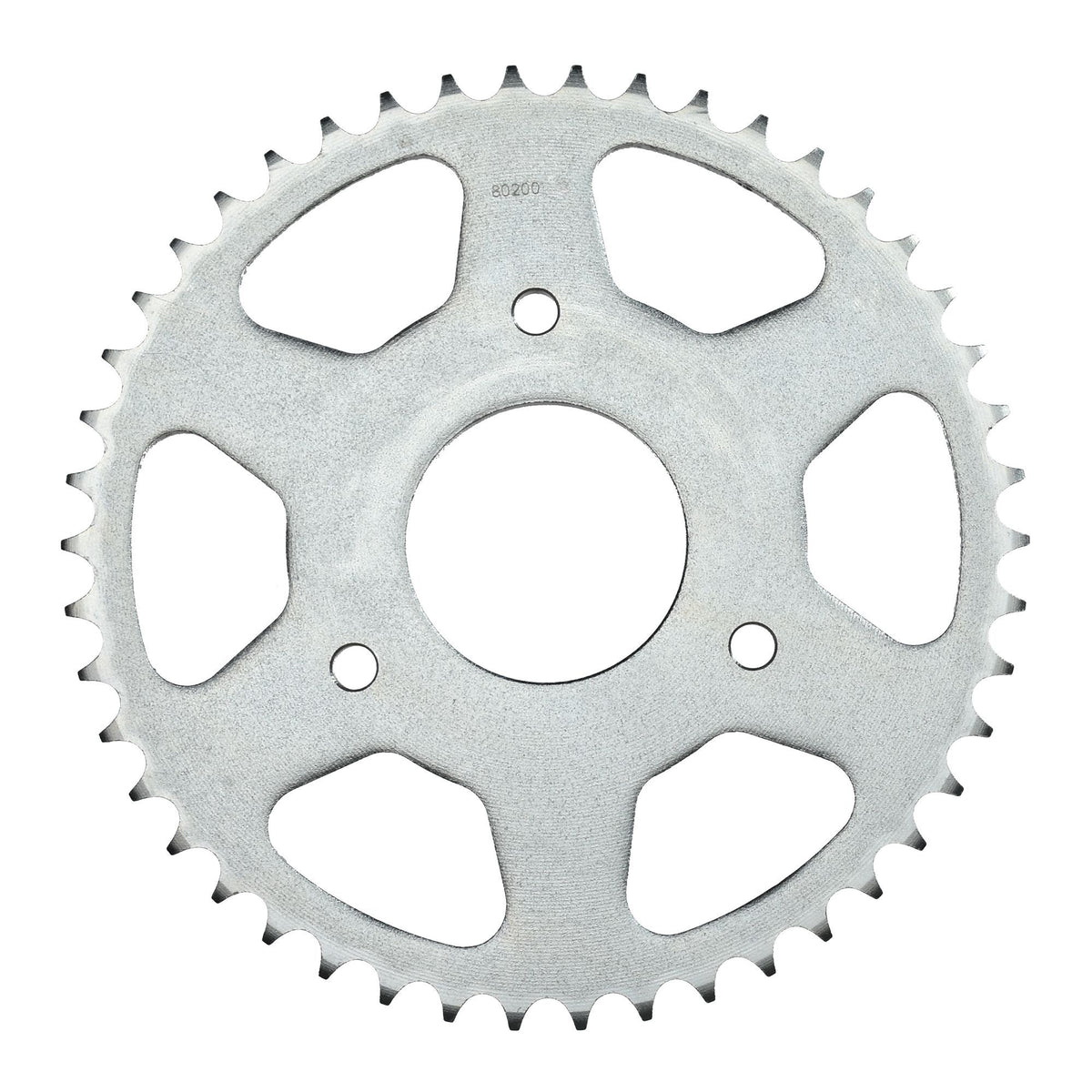

• Chain wheel: AFAM steel chain wheel #428 46 teeth - a80200.46
• Gear ratio sprocket-chain-chain wheel: 14-126-46

AFAM 428 XMR-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-47471

Suitable for

Rieju 101 - 125 cc RS2 125 2006
Rieju 101 - 125 cc RS2 125 2007
Rieju 101 - 125 cc RS2 125 2008
Rieju 101 - 125 cc RS2 125 2009
