AFAM chain kit for Royal Enfield Bullet 500 EFI ABS 17-20 530 XSR2G chain kit

AFAM Chain kit for Royal Enfield Bullet 500 EFI ABS 17-20 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Royal Enfield Bullet 500 EFI ABS 2017-2020

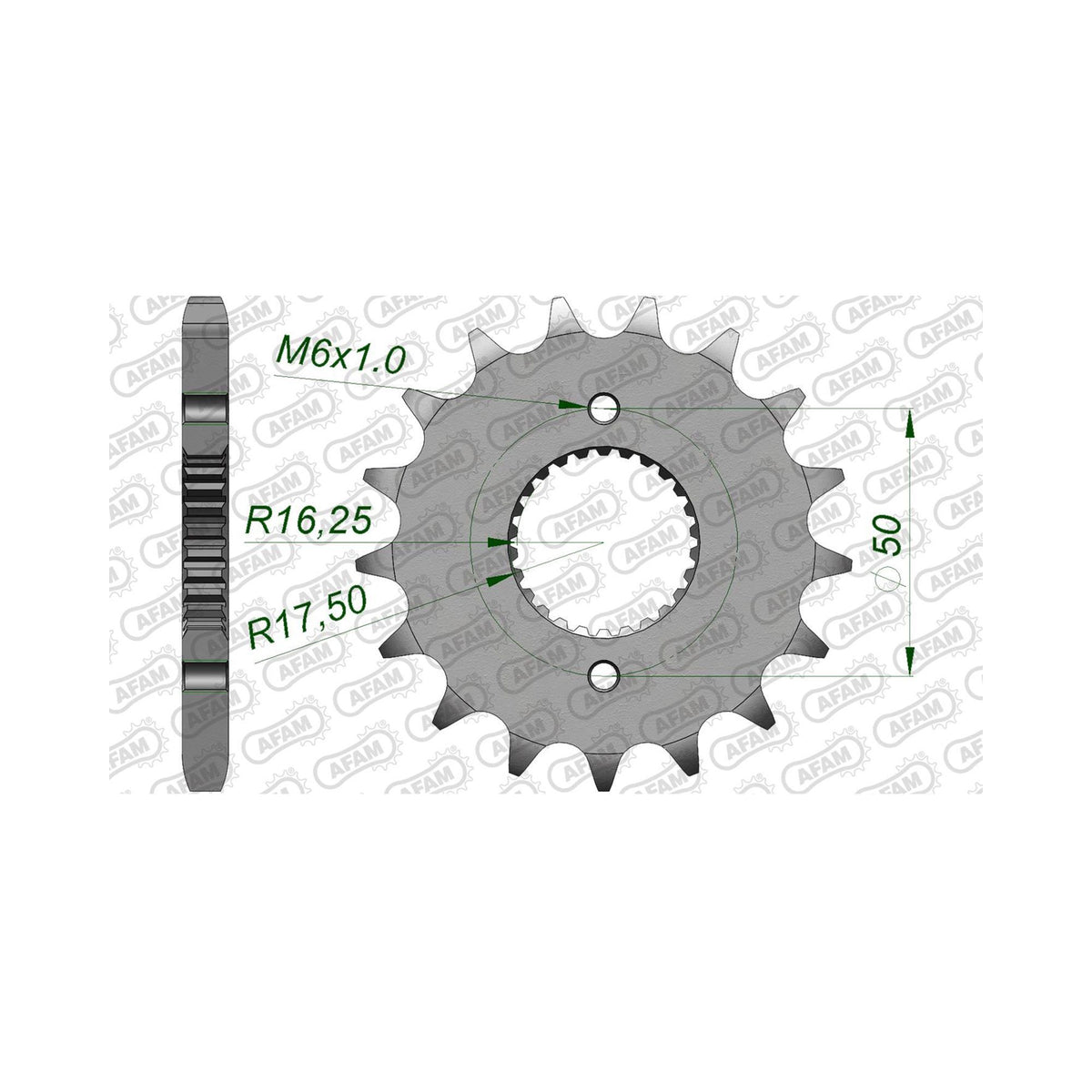

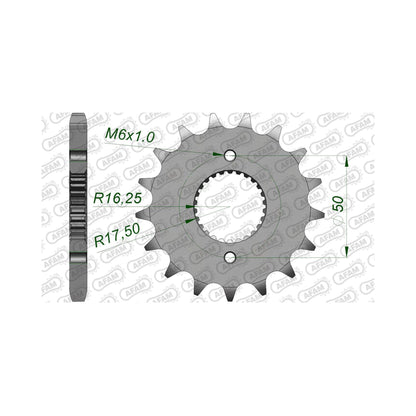

• Sprocket: AFAM sprocket #530 17 teeth - a187500.17
• Chain: AFAM chain 530 XSR2-G Xs-Ring 102 super reinforced with rivet link - a530xsr2.g.102

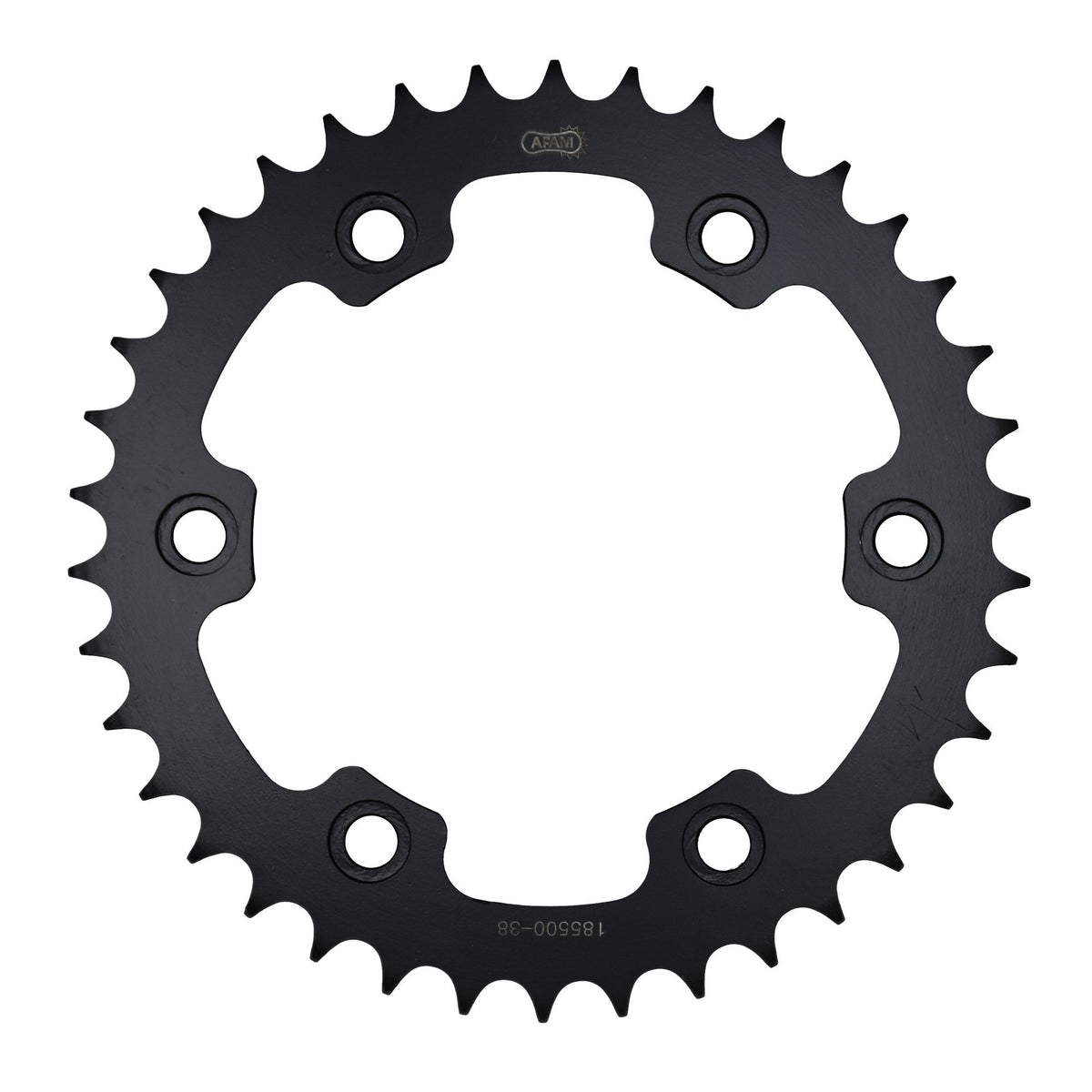

• Rear sprocket: AFAM rear sprocket STEEL #530 38 teeth - a185500.38
• Gear ratio sprocket-chain-rear sprocket: 17-102-38

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-40373

Suitable for

Royal Enfield 251 - 500 cc Bullet 500 EFI ABS 2017
Royal Enfield 251 - 500 cc Bullet 500 EFI ABS 2018
Royal Enfield 251 - 500 cc Bullet 500 EFI ABS 2019
Royal Enfield 251 - 500 cc Bullet 500 EFI ABS 2020
