AFAM chain kit for Sachs / SFM-Bikes ZZ 125 Supermoto 2T 98-01 428 R1G chain kit

AFAM chain kit for Sachs / SFM-Bikes ZZ 125 Supermoto 2T 98-01 428 R1G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Sachs / SFM-Bikes ZZ 125 Supermoto 2T 660 1998-2001 full power

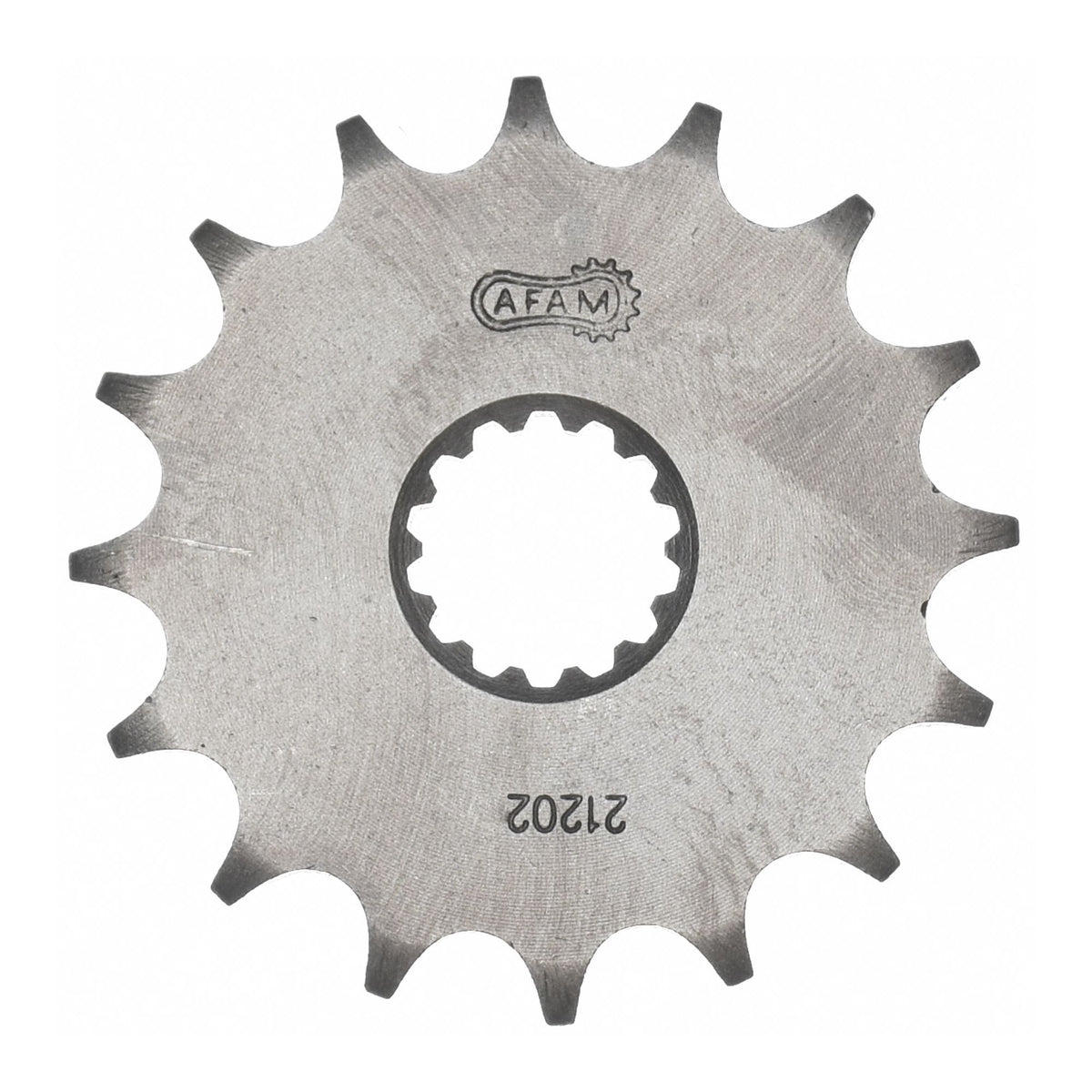

• Sprocket: AFAM sprocket #428 16 teeth - a21202.16
• Chain: AFAM chain 428 R1-G reinforced 136 with clip master link - a428r1.g.136

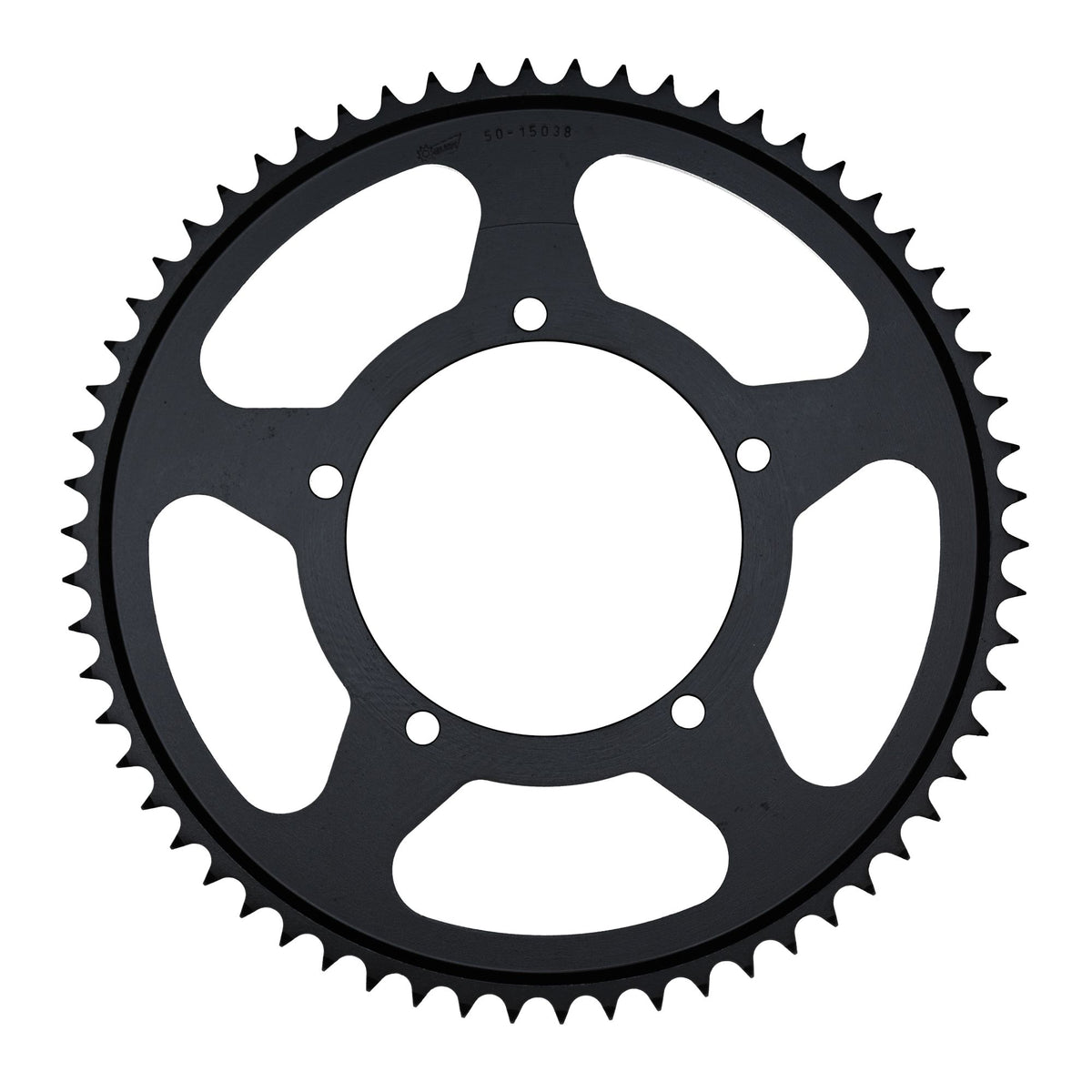

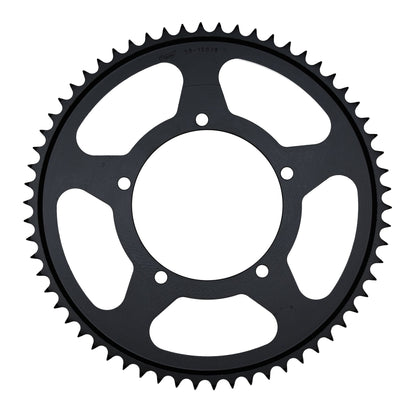

• Rear sprocket: AFAM rear sprocket STEEL #428 56 teeth - a92109.56
• Gear ratio sprocket-chain-rear sprocket: 16-136-56 full power

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical specifications:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-47515

Fits

Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 2T 660 1998
Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 2T 660 1999
Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 2T 660 2000
Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 2T 660 2001
