AFAM chain kit for Suzuki DL 650 V-Strom XT ABS 19-20 525 XSR2G chain kit

AFAM chain kit for Suzuki DL 650 V-Strom XT ABS 19-20 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Suzuki DL 650 V-Strom XT ABS 2019-2020

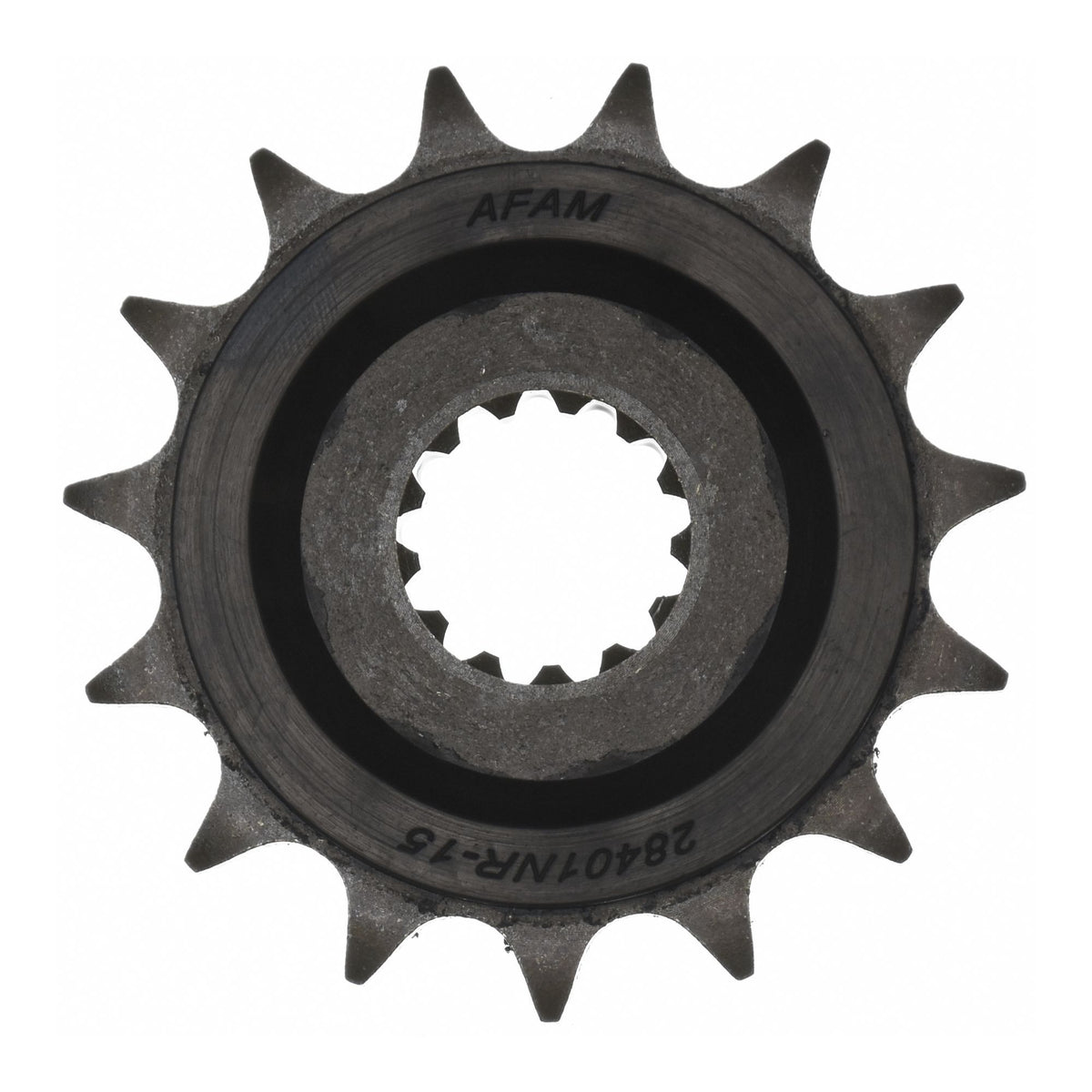

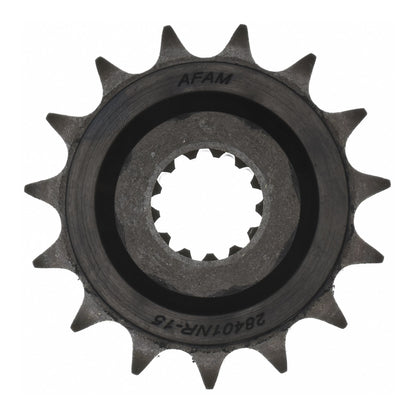

• Front sprocket: AFAM front sprocket 28401-15 rubberized #525 15 teeth - a28401oem.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 118 with rivet link - a525xsr2.g.118

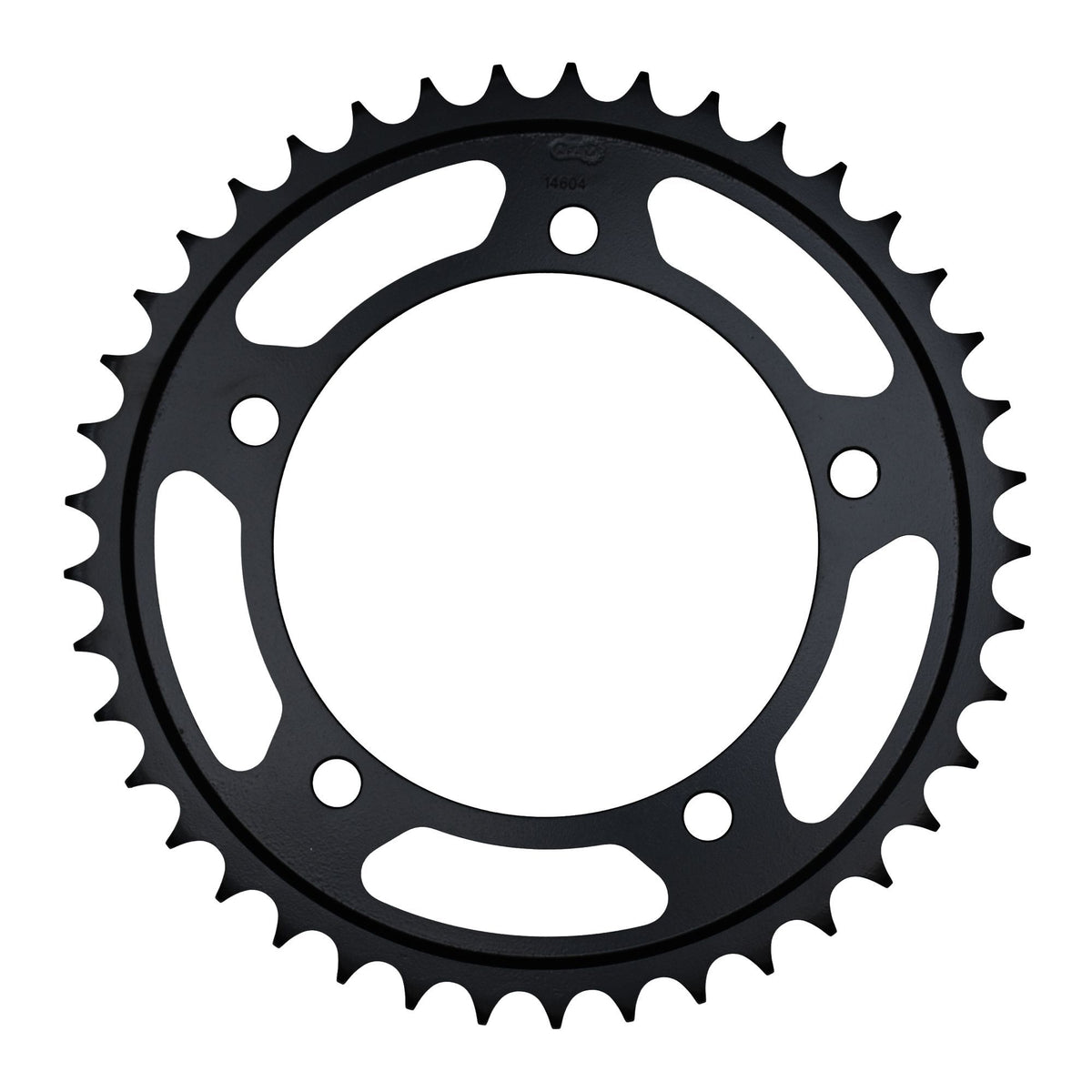

• Rear sprocket: AFAM steel rear sprocket #525 47 teeth - a14604.47
• Gear ratio front sprocket-chain-rear sprocket: 15-118-47

AFAM 525 XSR2-G

Super-reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-50910

Suitable for

Suzuki 501 - 750 cc DL 650 V-Strom XT ABS 2019
Suzuki 501 - 750 cc DL 650 V-Strom XT ABS 2020
