AFAM chain kit for Suzuki DL 650 V-Strom XT ABS 19-20 525 XSR2G chain kit

AFAM Chain Kit for Suzuki DL 650 V-Strom XT ABS 19-20 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki DL 650 V-Strom XT ABS 2019-2020

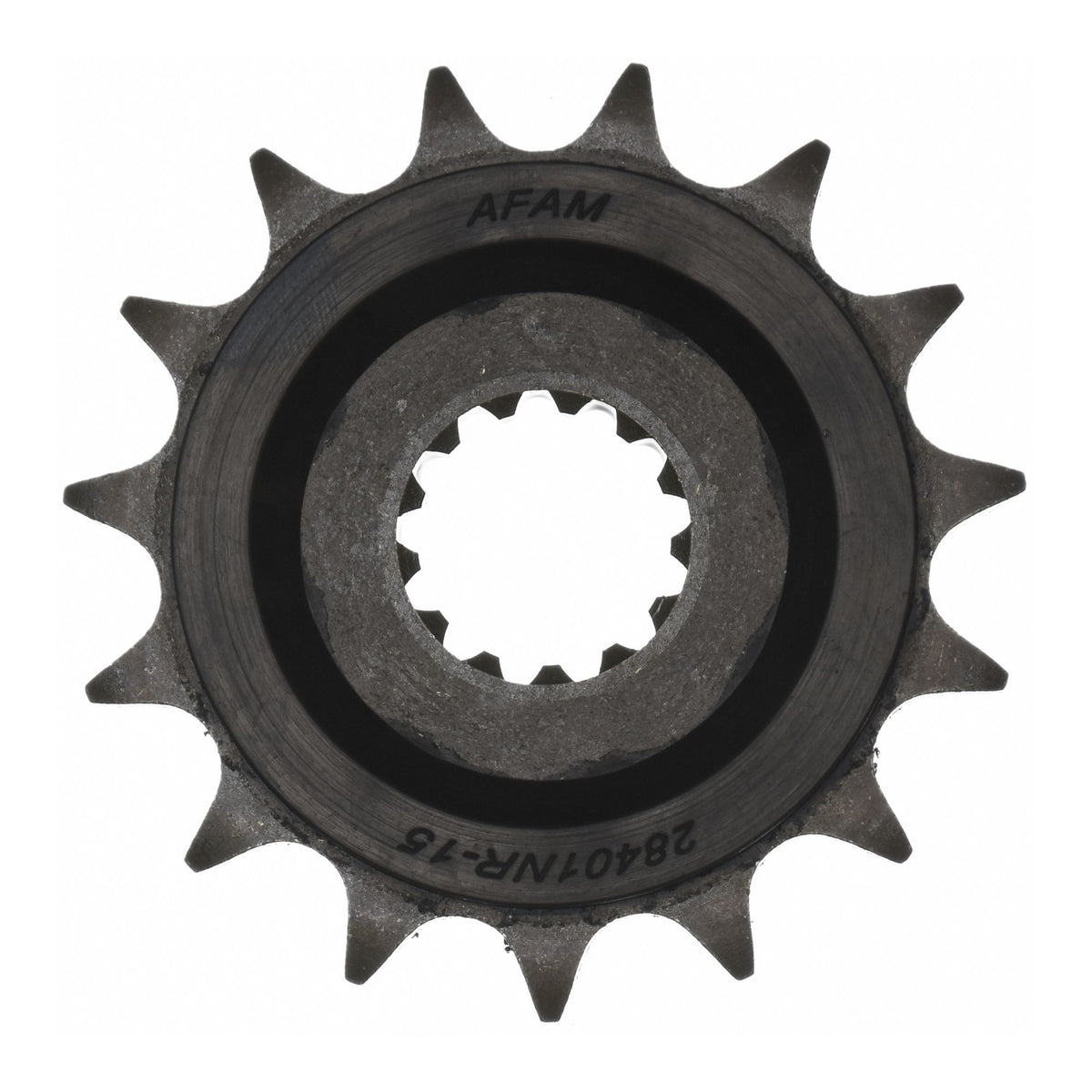

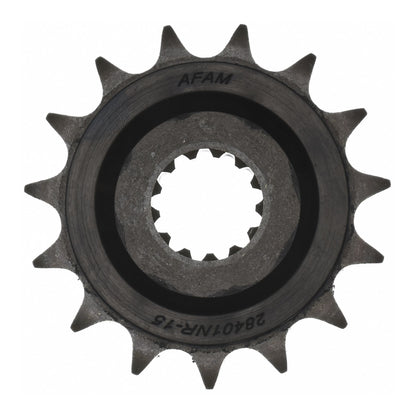

• Front sprocket: AFAM front sprocket 28401-15 rubberized #525 15 teeth - a28401oem.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 118 with rivet link - a525xsr2.g.118

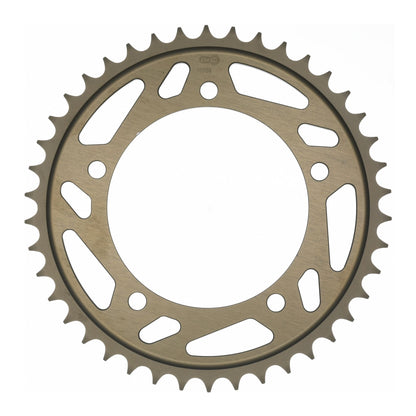

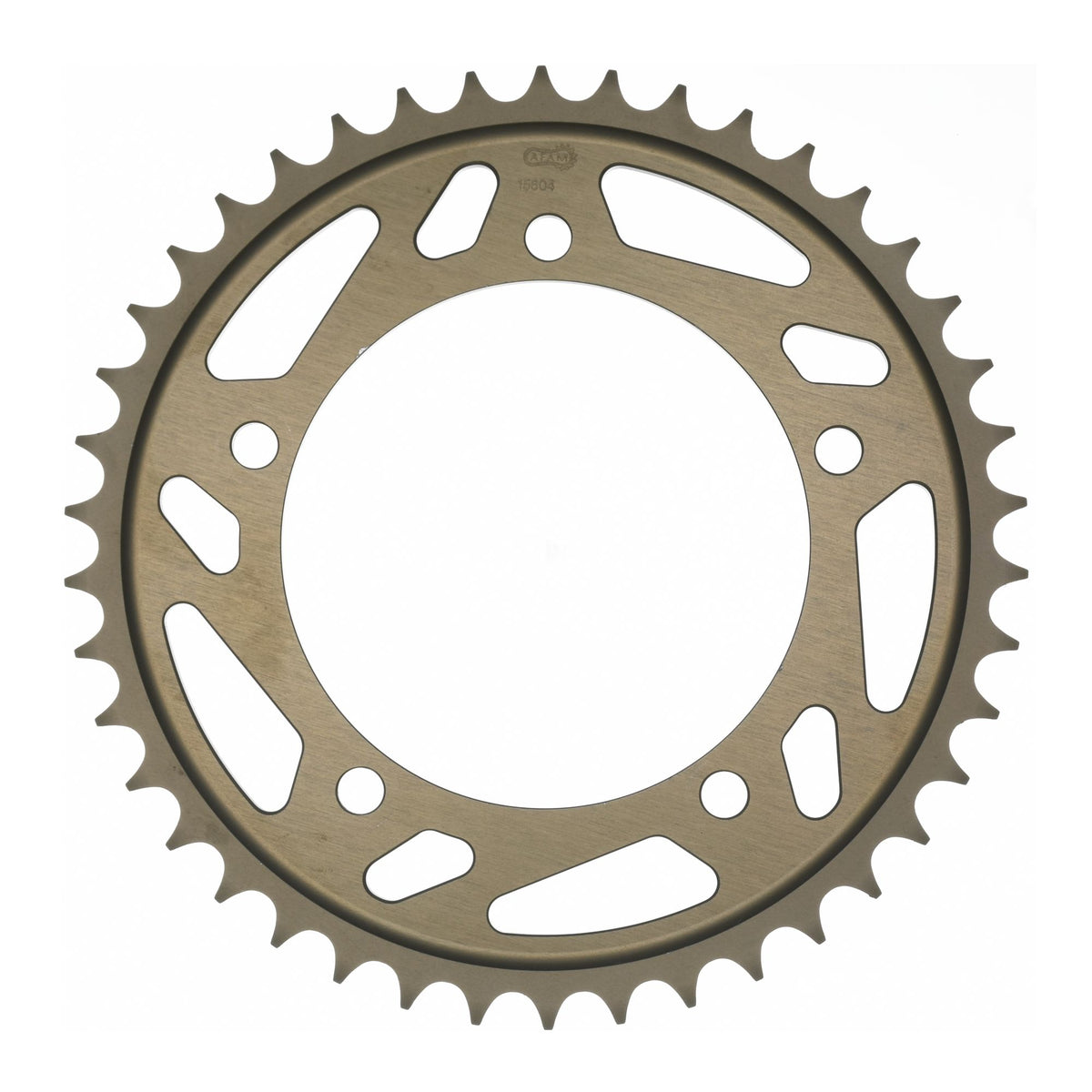

• Rear sprocket: AFAM rear sprocket ALU #525 47 teeth - a15604.47
• Transmission ratio front sprocket-chain-rear sprocket: 15-118-47

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52243

Fits

Suzuki 501 - 750 cc DL 650 V-Strom XT ABS 2019
Suzuki 501 - 750 cc DL 650 V-Strom XT ABS 2020
