AFAM chain kit for Suzuki DR 750 S Big 1989 520 XHR2G chain kit

AFAM chain kit for Suzuki DR 750 S Big 1989 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification only!

Components of the chain kit Suzuki DR 750 S Big SR41B 1989-1989

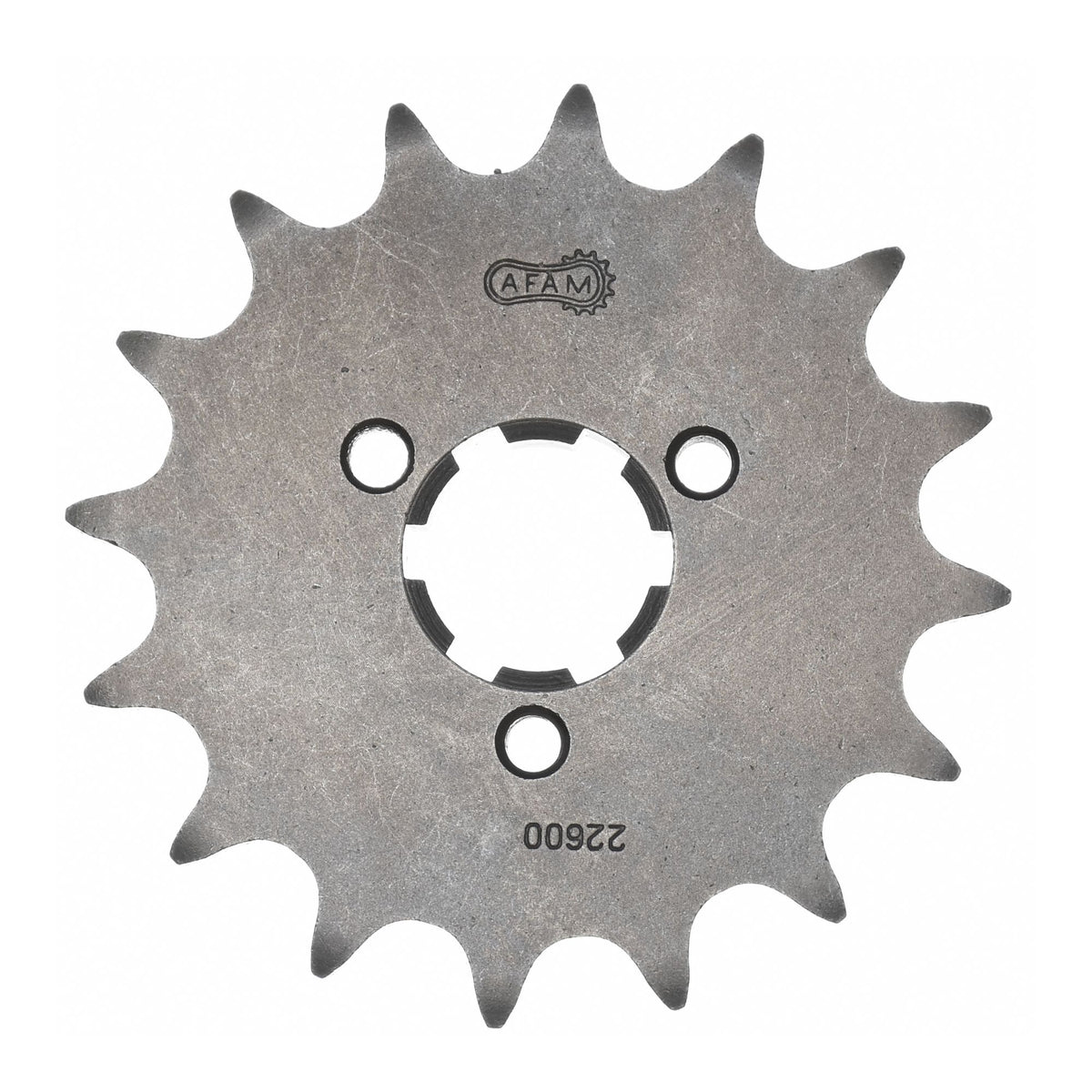

• Front sprocket: AFAM front sprocket #520 15 teeth - a22600.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 116 w. rivet link - a520xhr2.g.116

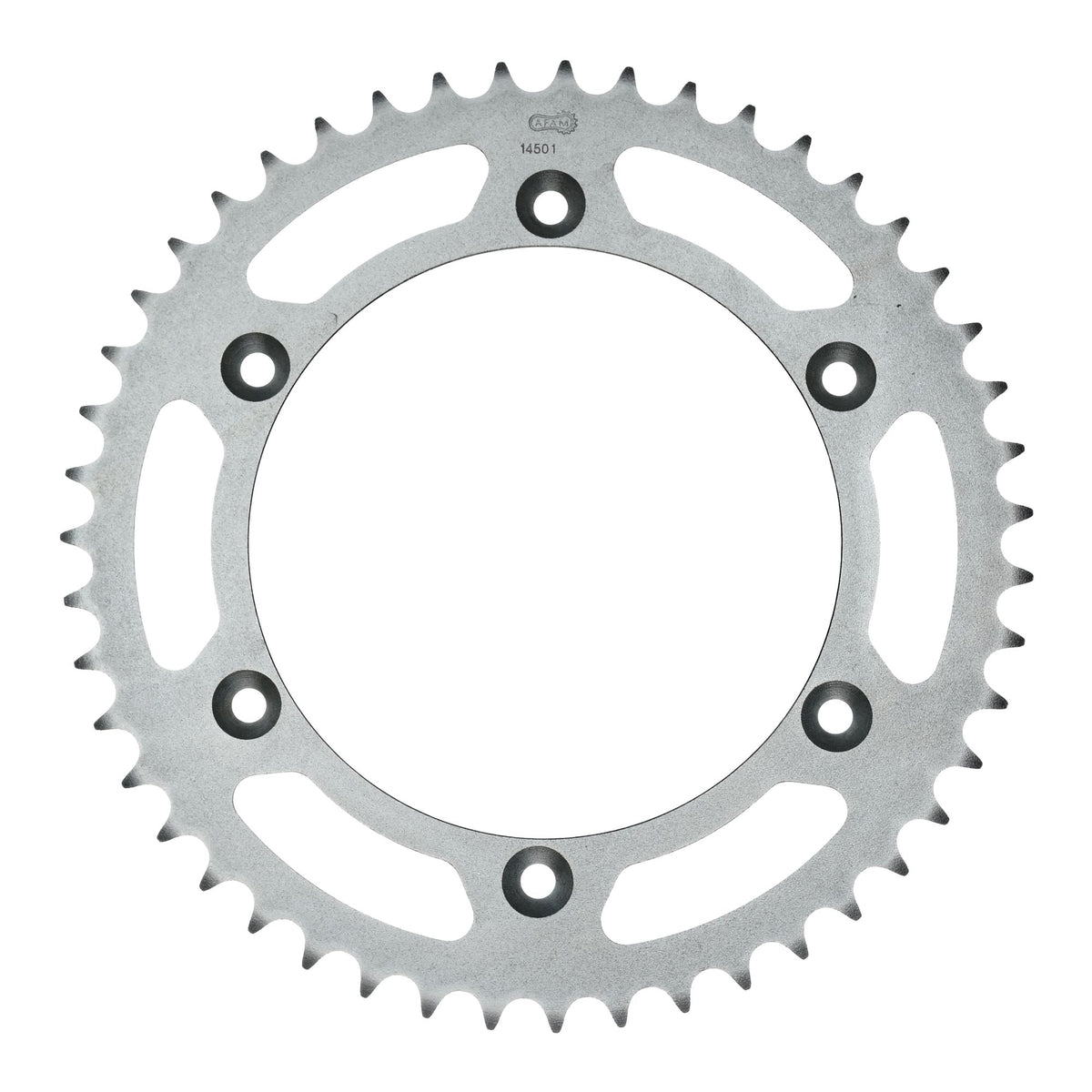

• Rear sprocket: AFAM rear sprocket STEEL #520 48 teeth - a14501.48
• Transmission ratio front sprocket-chain-rear sprocket: 15-116-48

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52419

Suitable for

Suzuki 501 - 750 cc DR 750 S Big SR41B 1989
