AFAM chain kit for Suzuki DR 750 S Big (drum brake) 1988 520 XSRG chain kit

AFAM chain kit for Suzuki DR 750 S Big (drum brake) 1988 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification purposes only!

Components of the chain kit Suzuki DR 750 S Big (drum brake) SR41B 1988-1988

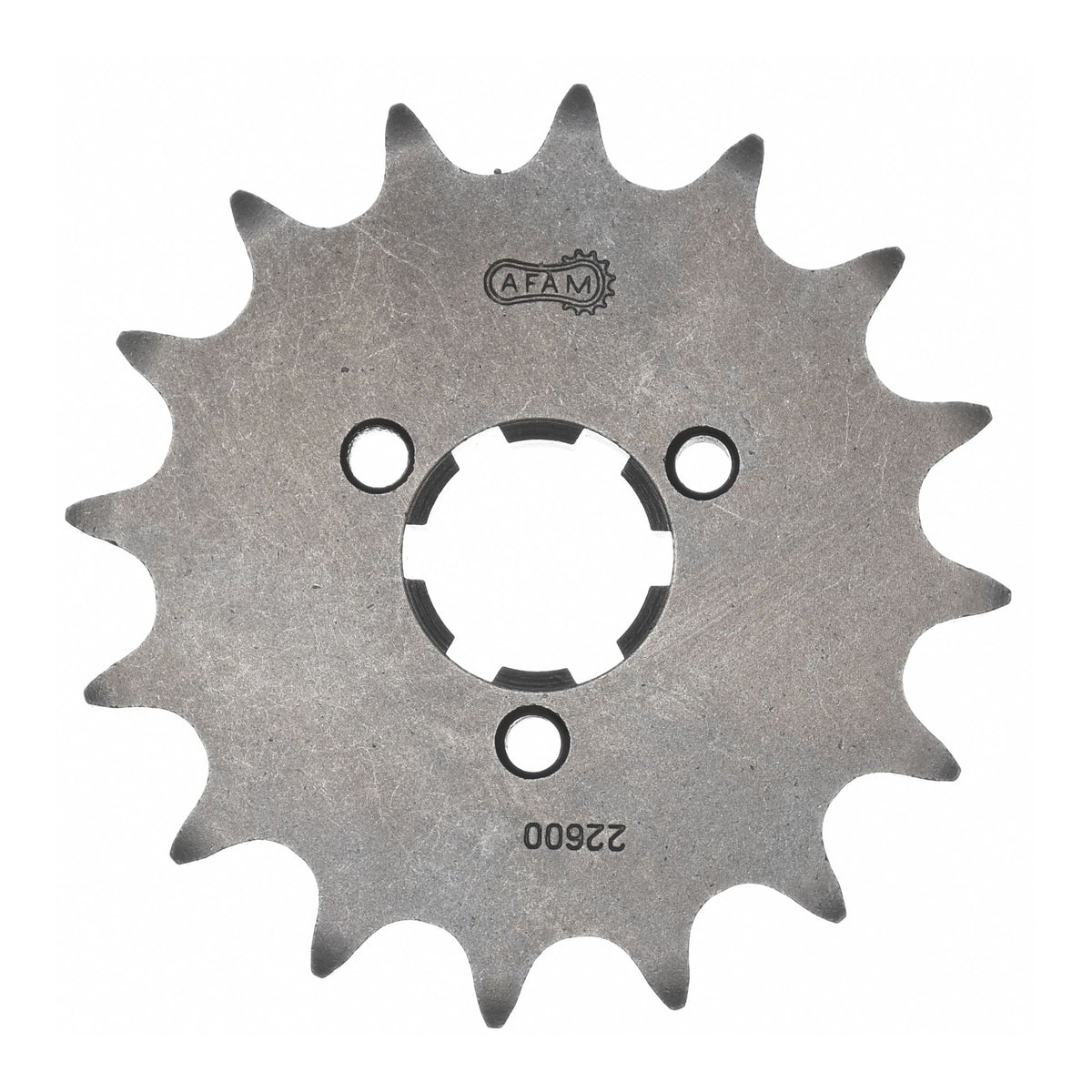

• Front sprocket: AFAM front sprocket #520 15 teeth - a22600.15
• Chain: AFAM chain 520 XSR-G Xs-Ring 116 with rivet link - a520xsr.g.116

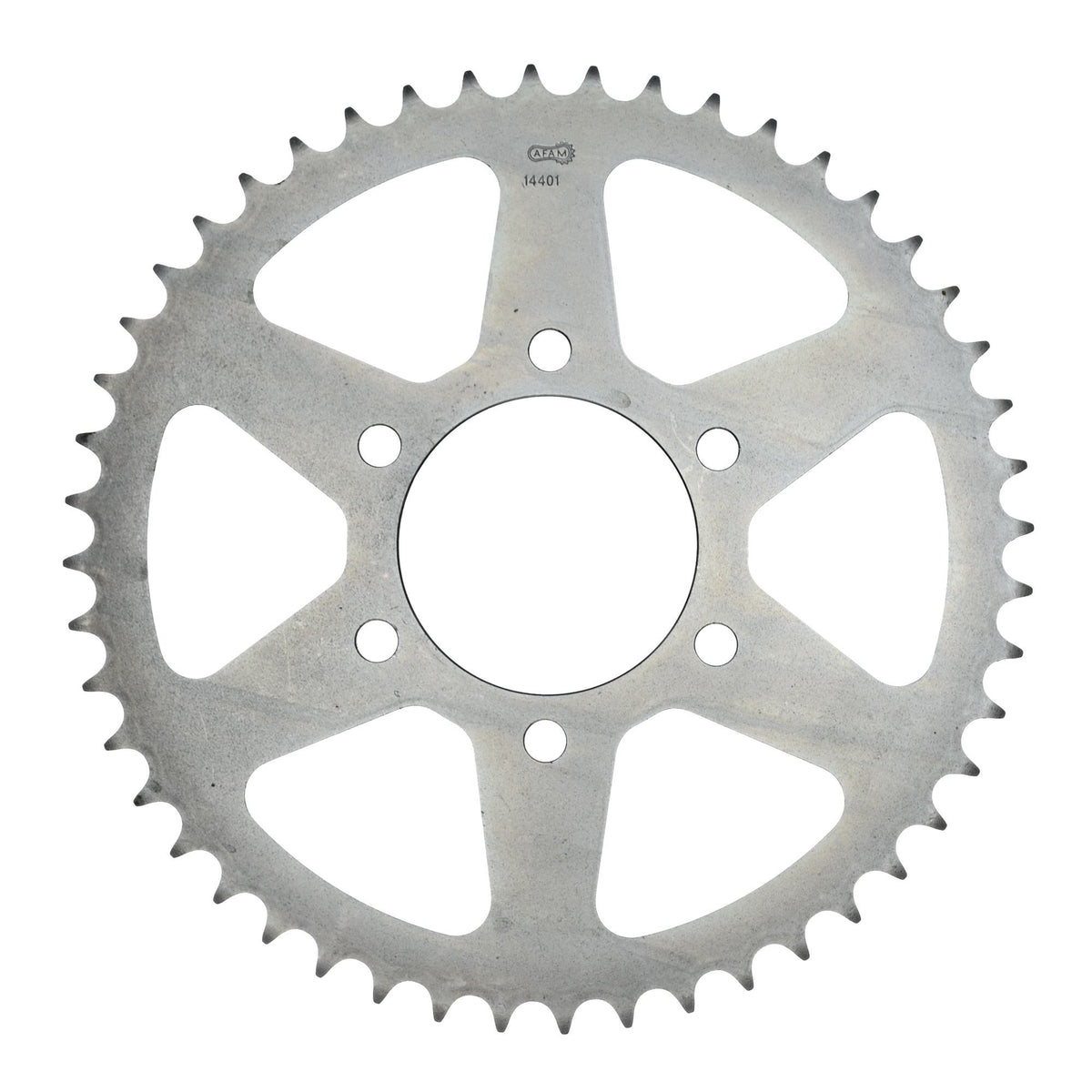

• Rear sprocket: AFAM STEEL rear sprocket #520 48 teeth - a14401.48
• Transmission ratio front sprocket-chain-rear sprocket: 15-116-48

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and offroad

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52424

Fits

Suzuki 501 - 750 cc DR 750 S Big (drum brake) SR41B 1988
