AFAM chain kit for Suzuki GN 125 97-99 428 XMRG chain kit

AFAM Chain Kit for Suzuki GN 125 97-99 428 XMRG Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Suzuki GN 125 NF41A 1997-1999

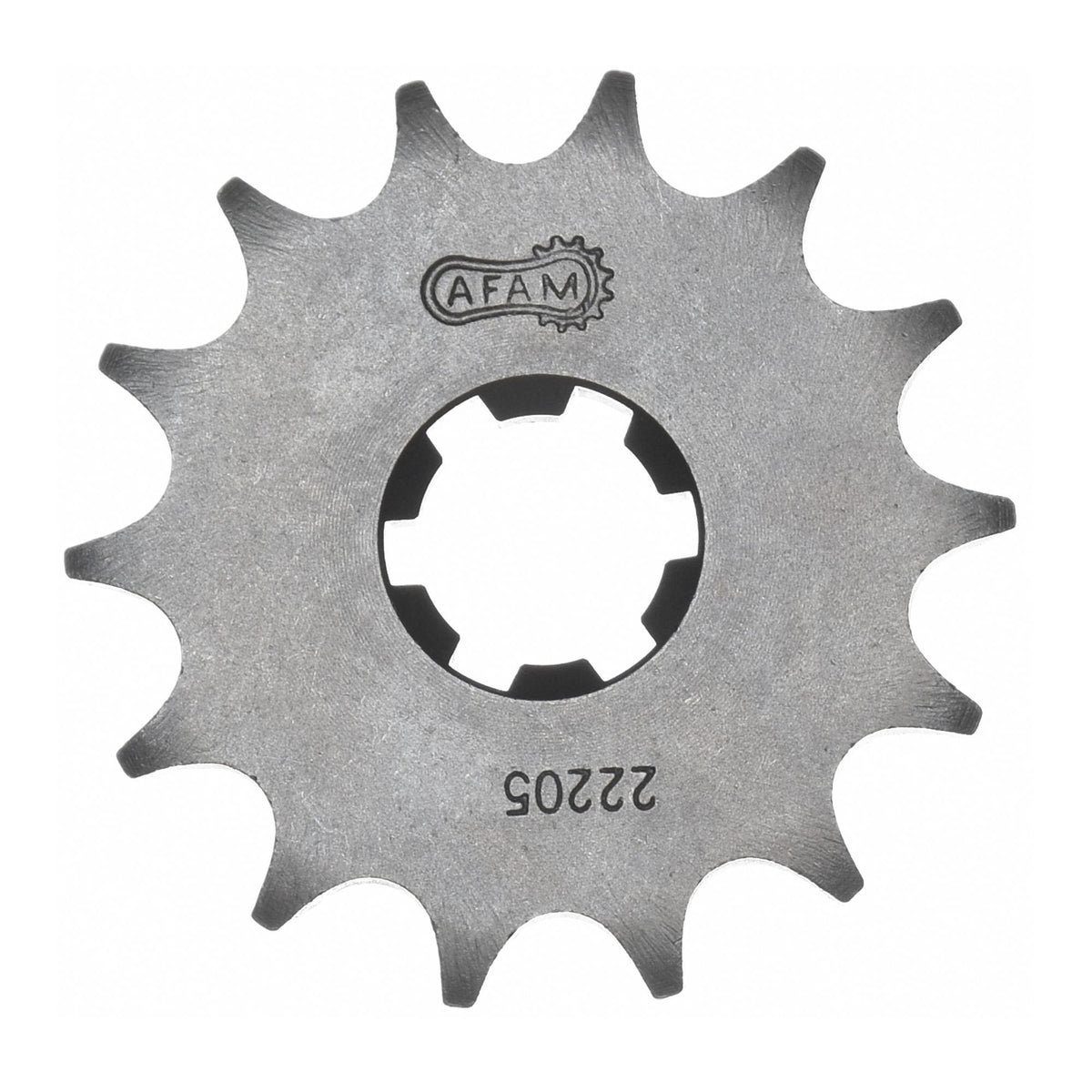

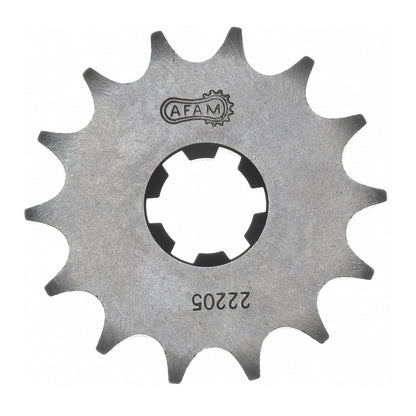

• Sprocket: AFAM sprocket #428 14 teeth - a22205.14
• Chain: AFAM chain 428 XMR-G Xs-Ring 114 w. clip link - a428xmr.g.114
• Chain wheel: AFAM steel sprocket #428 41 teeth - a14201.41
• Gear ratio sprocket-chain-chain wheel: 14-114-41

AFAM 428 XMR-G

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-43690

Suitable for

Suzuki 101 - 125 cc GN 125 NF41A 1997
Suzuki 101 - 125 cc GN 125 NF41A 1998
Suzuki 101 - 125 cc GN 125 NF41A 1999
