AFAM chain kit for Suzuki GR 650 X (spoke wheel) 83-89 530 XHR2G chain kit

AFAM Chain Kit for Suzuki GR 650 X (spoke wheel) 83-89 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GR 650 X (spoke wheel) GP51A 1983-1989

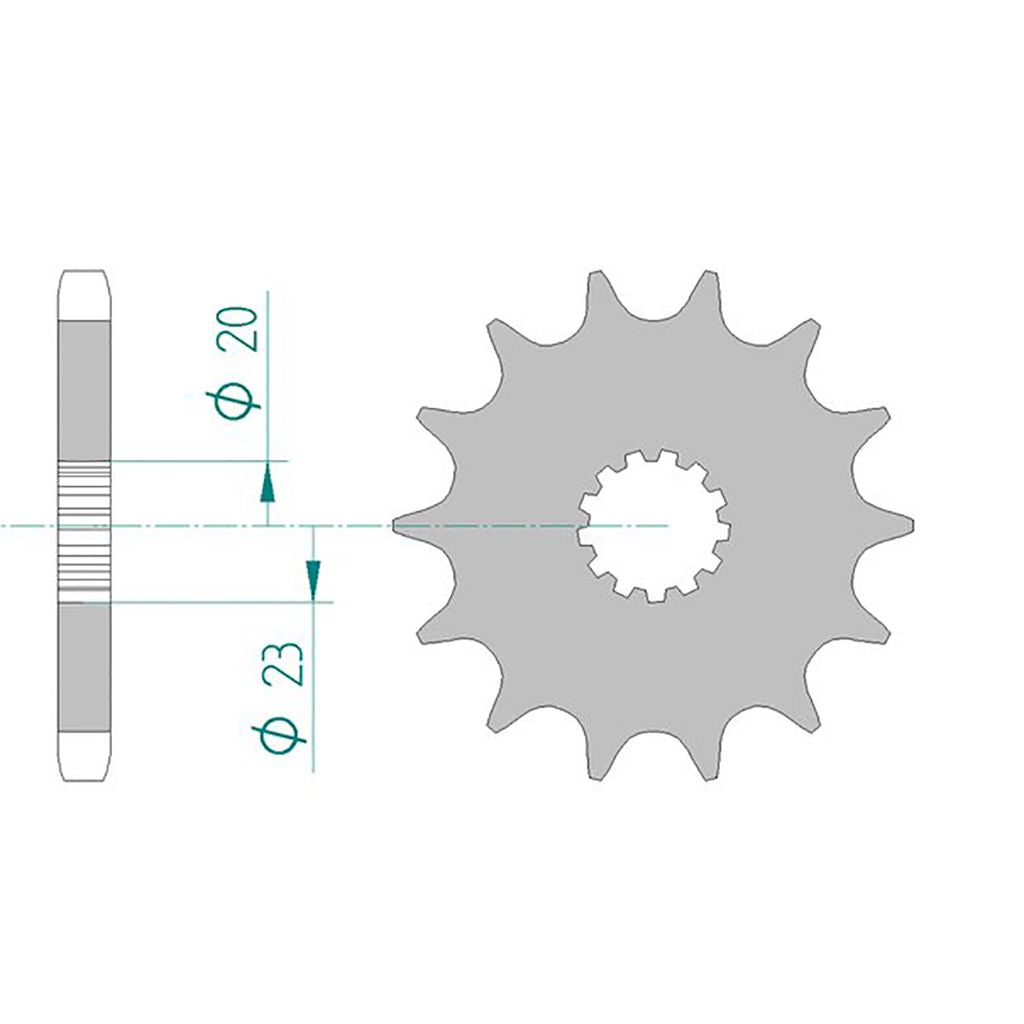

• Sprocket: AFAM sprocket #530 15 teeth - a22403.15
• Chain: AFAM chain 530 XHR2-G Xs-ring 106 links w. rivet link - a530xhr2.g.106

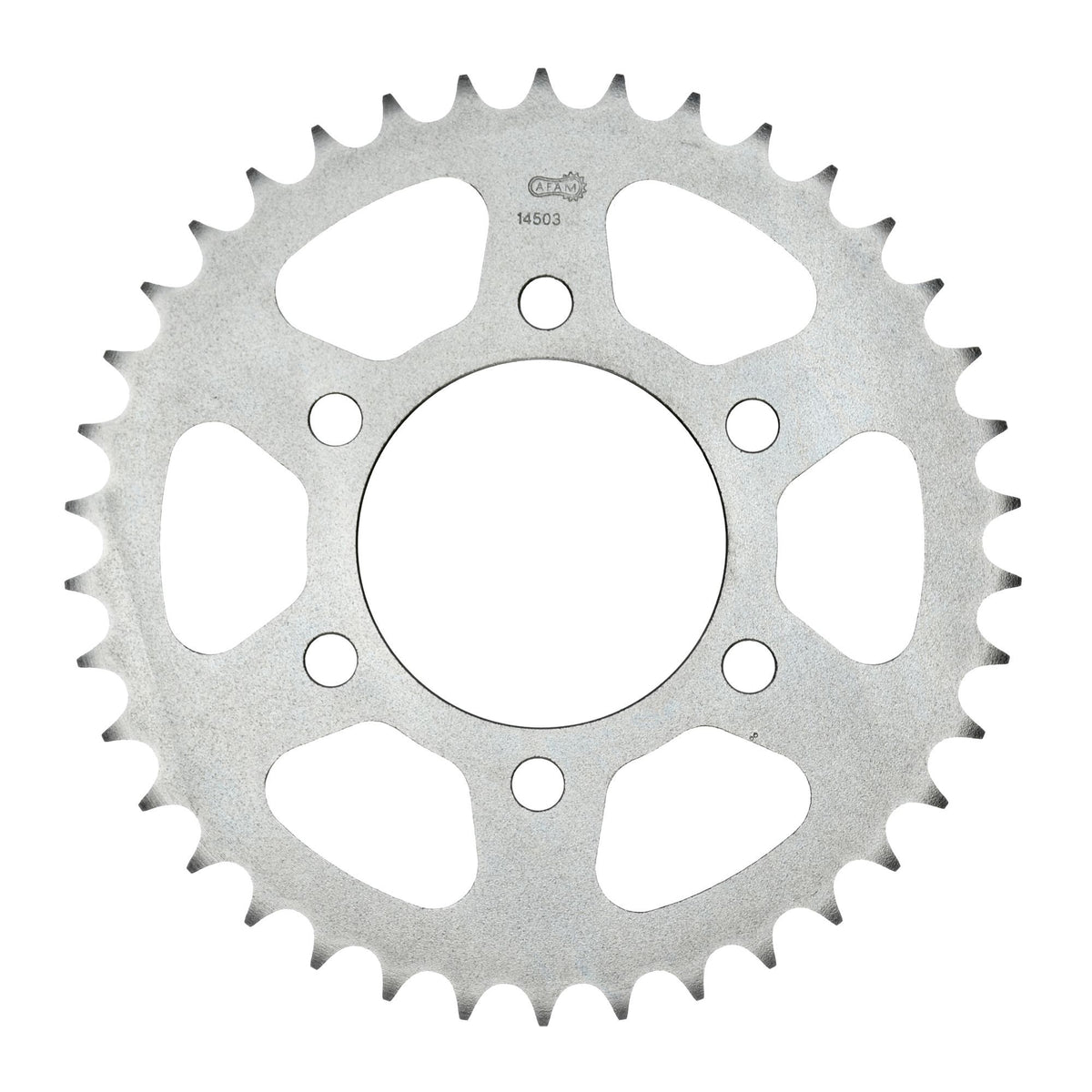

• Rear sprocket: AFAM steel rear sprocket #530 38 teeth - a14503.38
• Gear ratio sprocket-chain-rear sprocket: 15-106-38

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine capacity: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52262

Suitable for

Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1983
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1984
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1985
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1986
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1987
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1988
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1989
