AFAM chain kit for Suzuki GS 450 E 1988 530 XSR2G chain kit

AFAM chain kit for Suzuki GS 450 E 1988 530 XSR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GS 450 E GL51F 1988-1988

• Front sprocket: AFAM front sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 110 with rivet link - a530xsr2.g.110

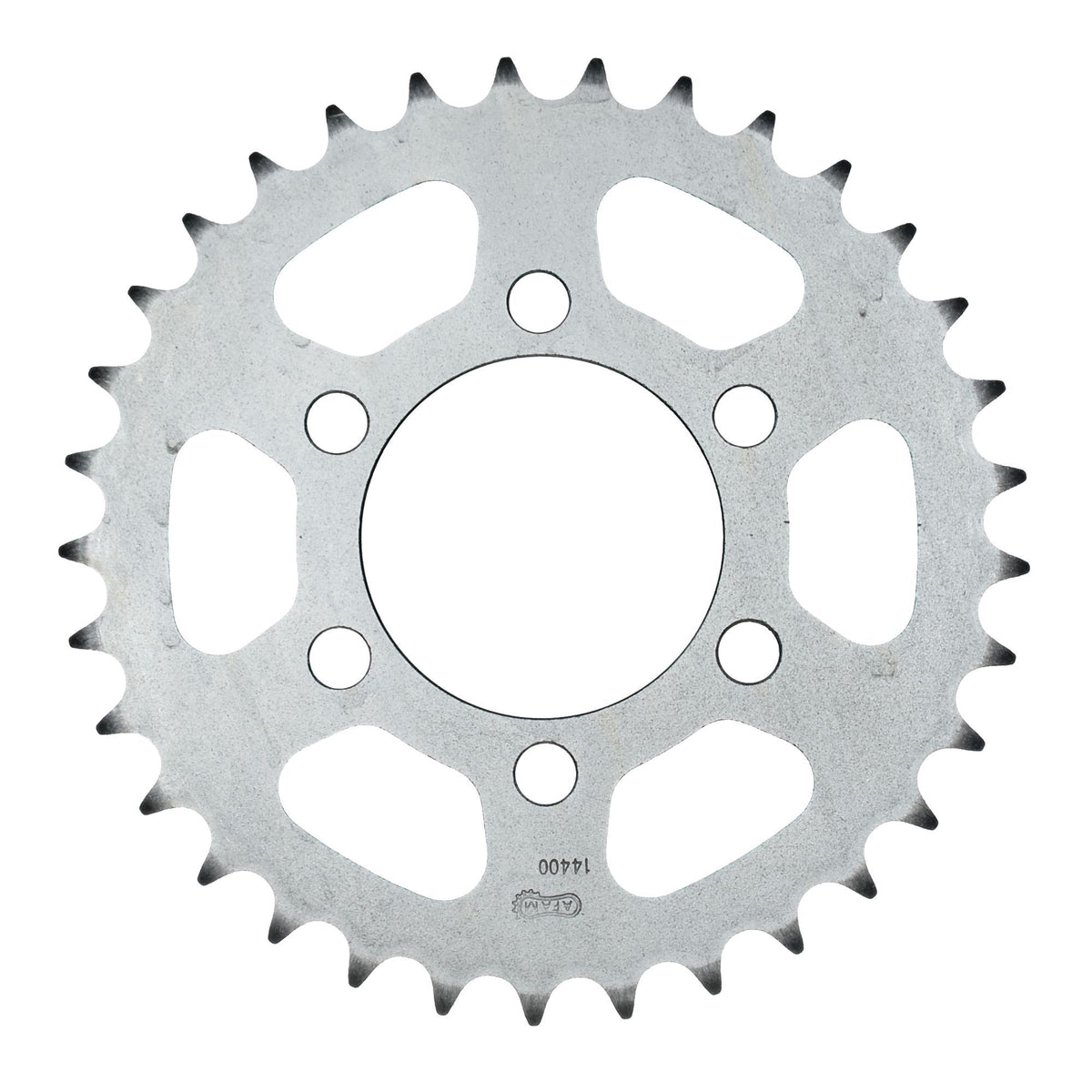

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a14400.45
• Gear ratio front sprocket-chain-rear sprocket: 16-110-45

AFAM 530 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-45340

Suitable for

Suzuki 251 - 500 cc GS 450 E GL51F 1988
