AFAM chain kit for Suzuki GS 450 S 80-81 530 XSR2G chain kit

AFAM Chain Kit for Suzuki GS 450 S 80-81 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GS 450 S GS450 1980-1981

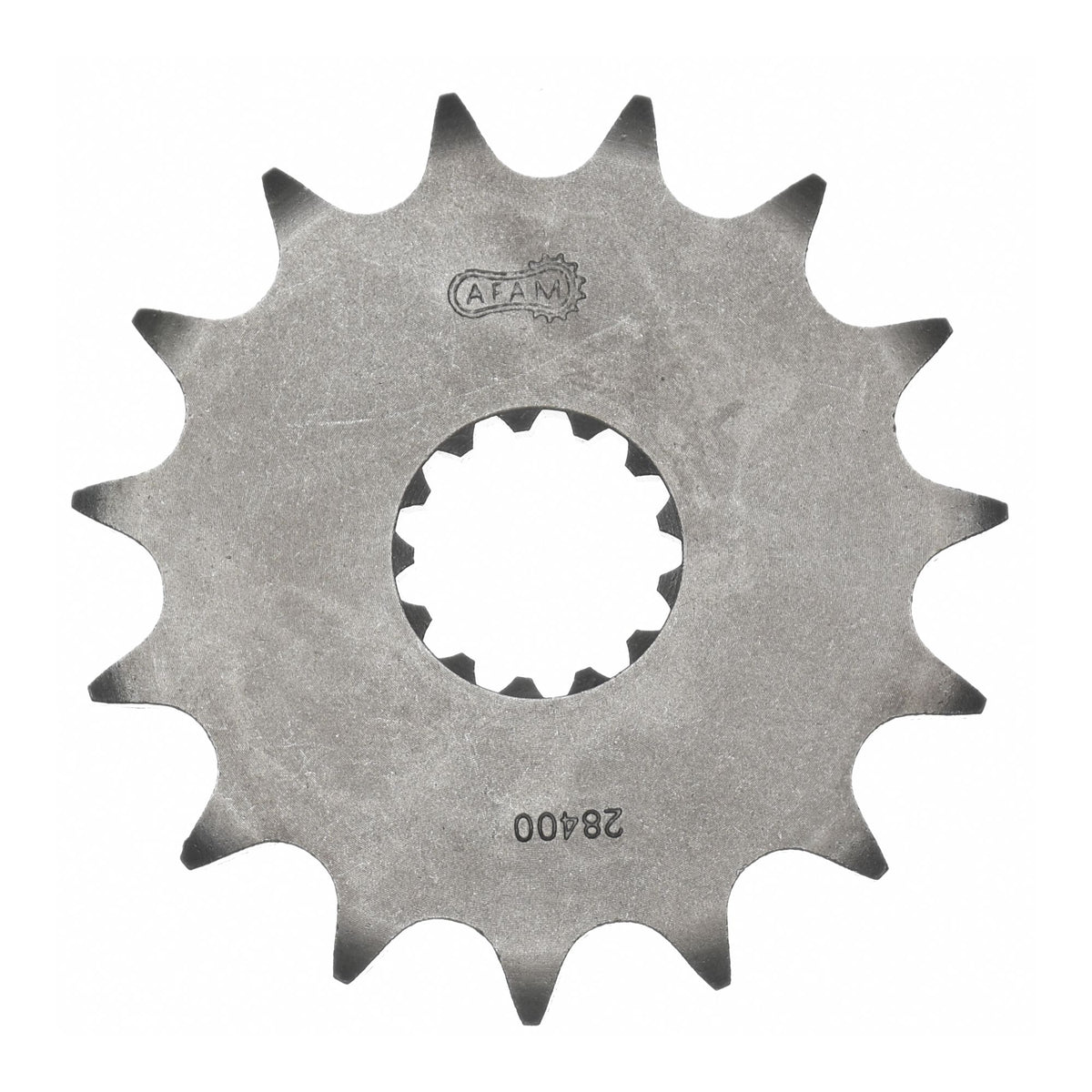

• Front sprocket: AFAM front sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 104 with rivet link - a530xsr2.g.104

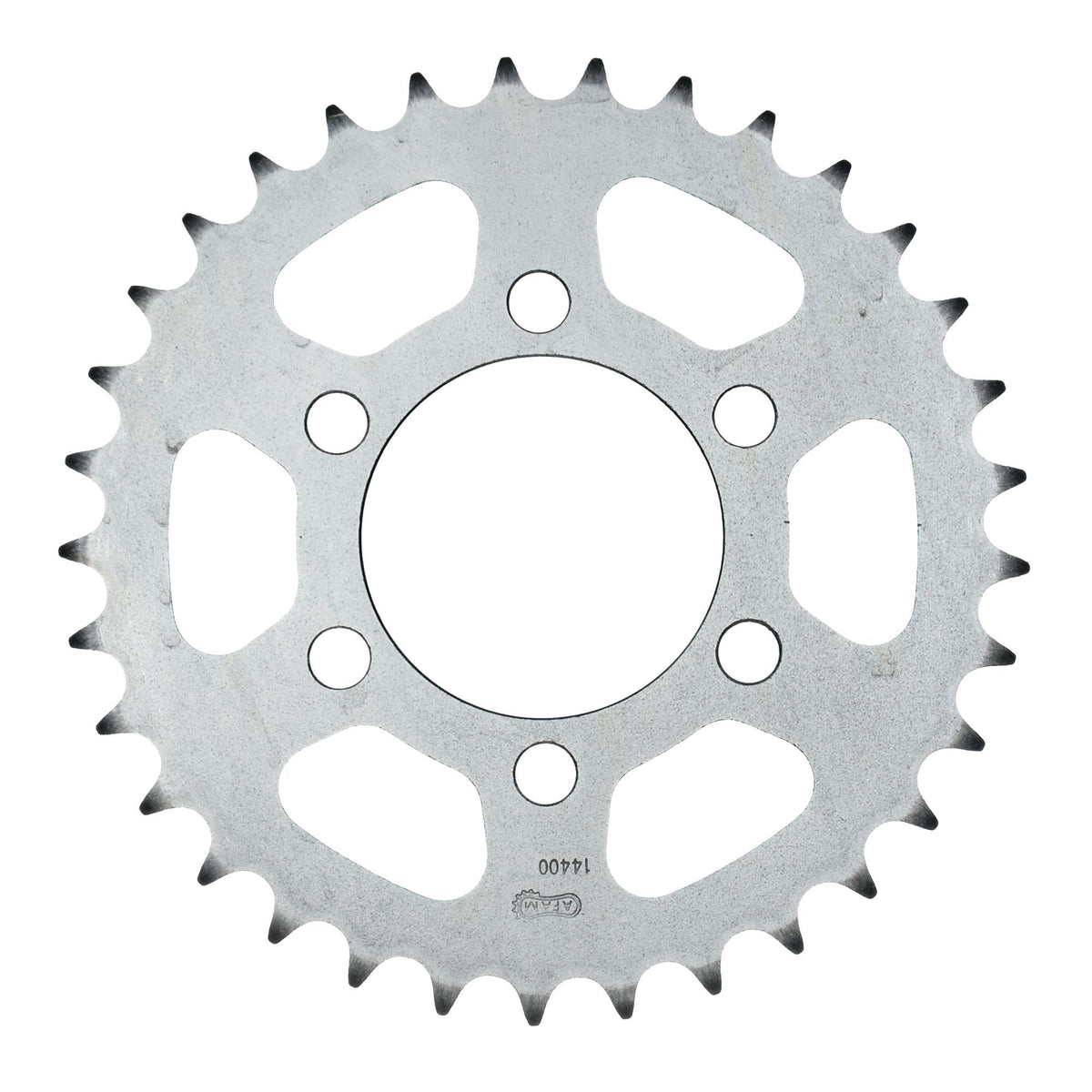

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a14400.45
• Gear ratio front sprocket-chain-rear sprocket: 16-104-45

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-51895

Fits

Suzuki 251 - 500 cc GS 450 S GS450 1980
Suzuki 251 - 500 cc GS 450 S GS450 1981
