AFAM chain kit for Suzuki GS 450 T 81-83 530 XHR2G chain kit

AFAM chain kit for Suzuki GS 450 T 81-83 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Suzuki GS 450 T GS450 1981-1983

• Front sprocket: AFAM sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 104 with rivet link - a530xhr2.g.104

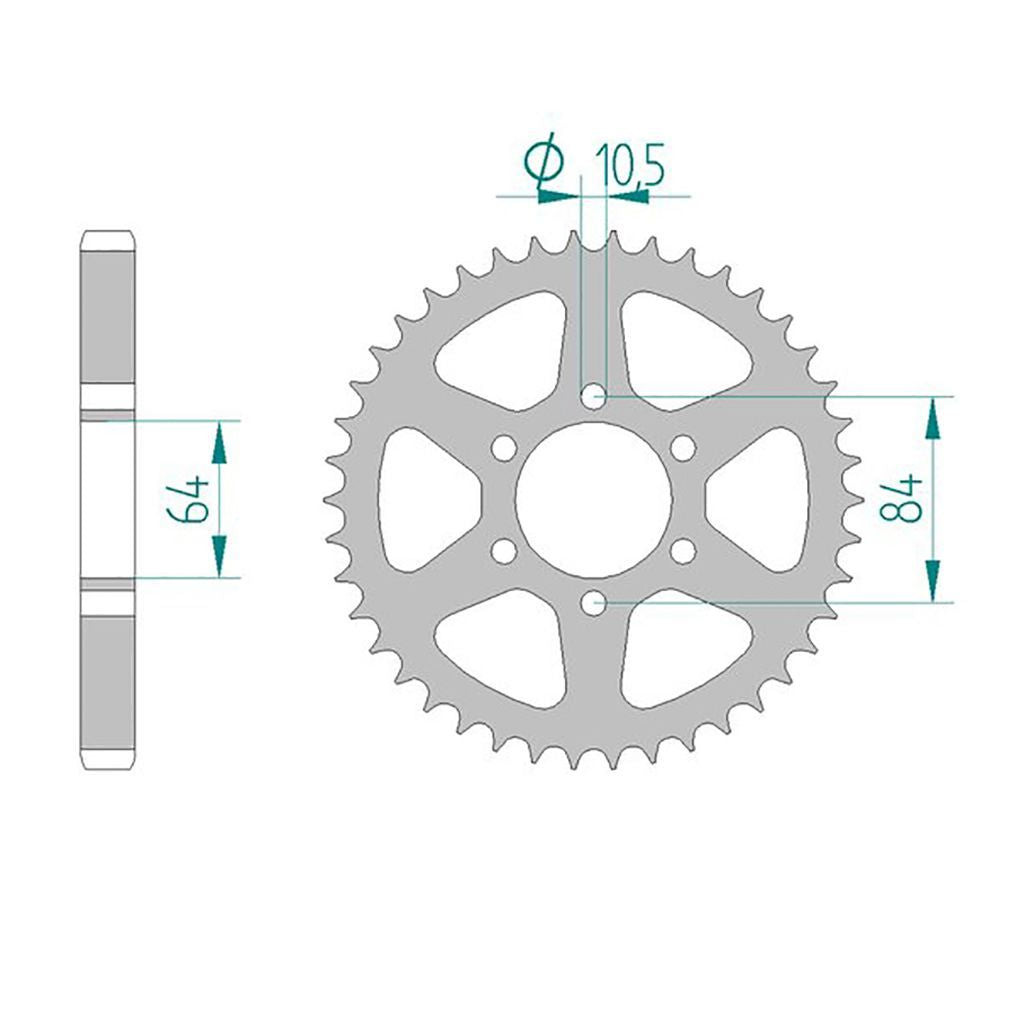

• Rear sprocket: Esjot sprocket 14400-43 STEEL #530 43 teeth - a14400.43
• Gear ratio sprocket-chain-rear sprocket: 16-104-43

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51898

Fits

Suzuki 251 - 500 cc GS 450 T GS450 1981
Suzuki 251 - 500 cc GS 450 T GS450 1982
Suzuki 251 - 500 cc GS 450 T GS450 1983
